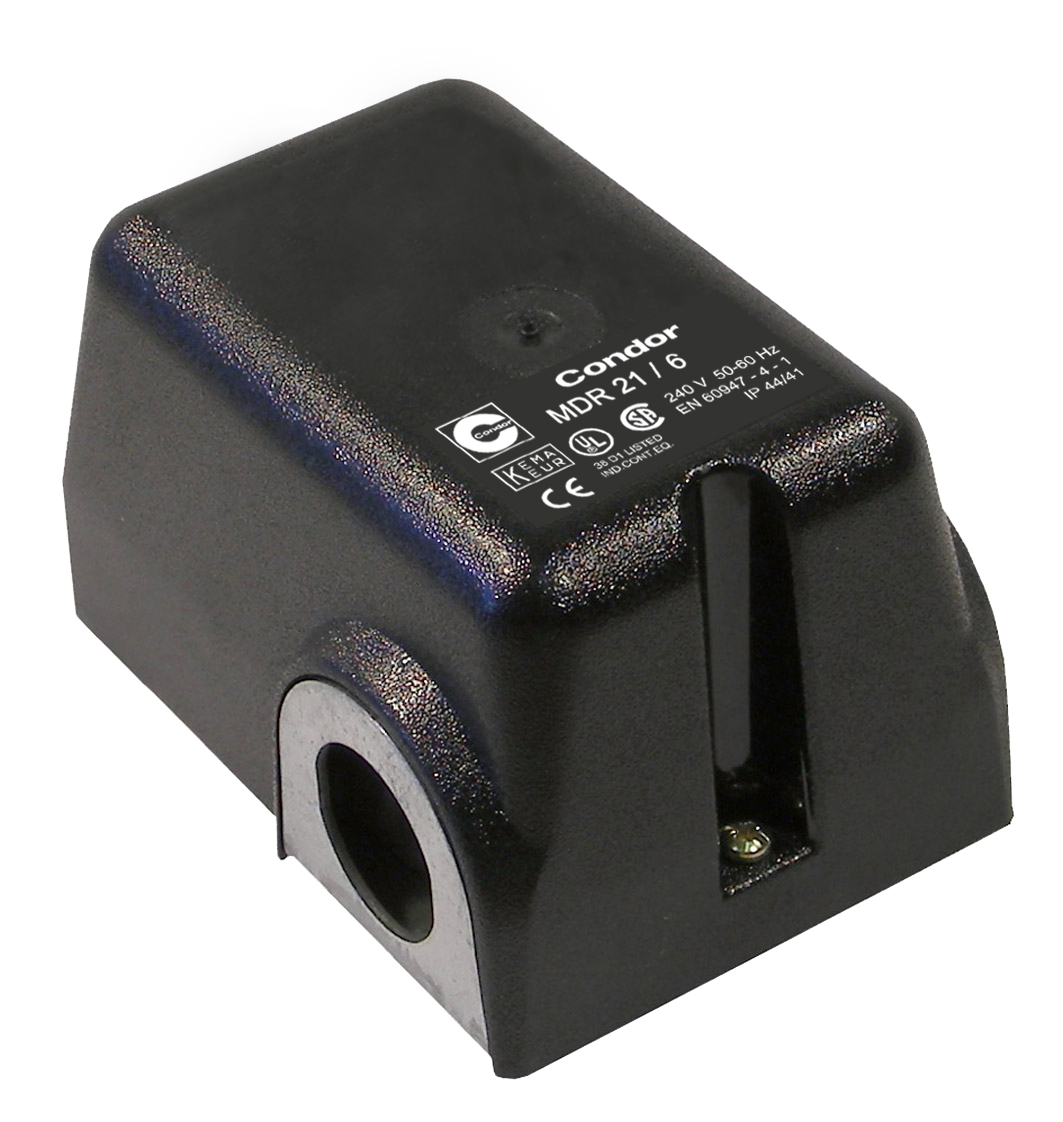

Condor Pressure Switch MDR 21 1,5-7 bar F4 1/4"
Condor MDR 21/6 bar, Spannung Wechselstrom 230 V
Einsatz: Druckluft: Druckschalter Kompressor
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor pressure switch MDR 21/6 bar 226901
AC version
Switching capacity 4.0 kW / 4 HP
max. breaking pressure 12 bar / 175 psi
2-pole (NC contact)
in accordance with EN 60947
UL / CSA approval
Pressure switch type: DEA BACA 015A030 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting, corresponding sealing plugs for connections not required see under "Accessories".
| Thread / connection | F4 1/4" Alu |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 2,2 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Wechselstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 250 V |
| Contact function | 2-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 320 |
| Pressure range (bar) | 1,5-7 |
| Model range - Pressure switch | MDR 21 |
| On / Off switch button | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|
![[219910] Condor Pressure Switch MDR 21 1,5-7 bar G 1/4"](/web/image/product.template/226385/image_128/%5B219910%5D%20Condor%20Pressure%20Switch%20MDR%2021%201%2C5-7%20bar%20G%201-4%22?unique=29ce796)
|
Condor MDR 21/6 bar, Spannung Wechselstrom 230 V |
86.86 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200666] Condor Unloader valve EV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95462/image_128/%5B200666%5D%20Condor%20Unloader%20valve%20EV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=9fb4297)
|
Entlastungsventil EV 2 für Condor MDR 2 und MDR 21 Druckschalter |
16.76 € | |
![[200680] Condor Unloader valve EV 2 S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95463/image_128/%5B200680%5D%20Condor%20Unloader%20valve%20EV%202%20S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
Entlastungsventil EV 2S für Condor MDR 2 und MDR 21 Druckschalter |
16.76 € | |
![[200697] Condor Plastic unloader valve (90°) EV 2W with screw connection for 6 mm plastic or discharge copper tube](/web/image/product.template/95464/image_128/%5B200697%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20discharge%20copper%20tube?unique=9fb4297)
|
Entlastungsventil EV 2W für Condor MDR 2 und MDR 21 Druckschalter |
23.90 € | |
![[200703] Condor Plastic unloader valve (90°) EV 2Wi with screw connection for 1/4" mm plastic or discharge copper tube](/web/image/product.template/95465/image_128/%5B200703%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20discharge%20copper%20tube?unique=9fb4297)
|
Entlastungsventil EV 2Wi für Condor MDR 2 und MDR 21 Druckschalter |
23.90 € | |
![[200710] Condor Plastic unloader valve (90°) EV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95466/image_128/%5B200710%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
Entlastungsventil EV 2WS für Condor MDR 2 und MDR 21 Druckschalter |
23.90 € | |
![[200727] Condor Delayed unloader valve AEV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95467/image_128/%5B200727%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=dfc8fe7)
|
Anlauf-Entlastungsventil AEV 2 für Condor MDR 2 und MDR 21 Druckschalter |
22.56 € | |
![[200741] Condor Delayed unloader valve AEV 2S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95468/image_128/%5B200741%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=7a098e5)
|
Anlauf-Entlastungsventil AEV 2S für Condor MDR 2 und MDR 21 Druckschalter |
22.56 € | |
![[200758] Condor Delayed unloader valve (90°) AEV 2W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95469/image_128/%5B200758%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=e46d50e)
|
Anlauf-Entlastungsventil AEV 2W für Condor MDR 2 und MDR 21 Druckschalter |
29.51 € | |
![[200765] Condor Delayed unloader valve (90°) AEV 2Wi with screw connection for 1/4" mm plastic or copper discharge tube](/web/image/product.template/95470/image_128/%5B200765%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20copper%20discharge%20tube?unique=e46d50e)
|
Anlauf-Entlastungsventil AEV 2Wi für Condor Druckschalter MDR 2 und MDR 21 |
36.89 € | |
![[200772] Condor Delayed unloader valve (90°) AEV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95471/image_128/%5B200772%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
Anlauf-Entlastungsventil AEV 2WS für Condor Druckschalter MDR 2 und MDR 21 |
36.89 € | |
![[201021] Condor Cable gland PG 13,5 Z-21 with strain relief](/web/image/product.template/95458/image_128/%5B201021%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20Z-21%20with%20strain%20relief?unique=9fb4297)
|
Kabelverschraubung PG 13,5 Z-21 für Condor MDR 11 und MDR 21 Druckschalter |
8.93 € | |
![[201038] Condor Cable gland PG 13,5 ZK-21 with strain relief and cable support](/web/image/product.template/95459/image_128/%5B201038%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20ZK-21%20with%20strain%20relief%20and%20cable%20support?unique=4638de6)
|
Kabelverschraubung PG 13,5 ZK-21 für Condor MDR 11 und MDR 21 Druckschalter |
9.64 € | |
![[201243] Condor Grommet WN for cable gland MDR 3, 11, 21](/web/image/product.template/95457/image_128/%5B201243%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%203%2C%2011%2C%2021?unique=4638de6)
|
Condor Würgenippel für Condor Kabelverschraubungen für Condor MDR 11, MDR 21 und MDR 3 Druckschalter |
5.24 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[229452] Condor Cover H21 without On/Off lever (Neutral version without marking) for MDR 21](/web/image/product.template/95460/image_128/%5B229452%5D%20Condor%20Cover%20H21%20without%20On-Off%20lever%20%28Neutral%20version%20without%20marking%29%20for%20MDR%2021?unique=4638de6)
|
Haube H 21 für Condor MDR 21 Druckschalter |
11.90 € | |
