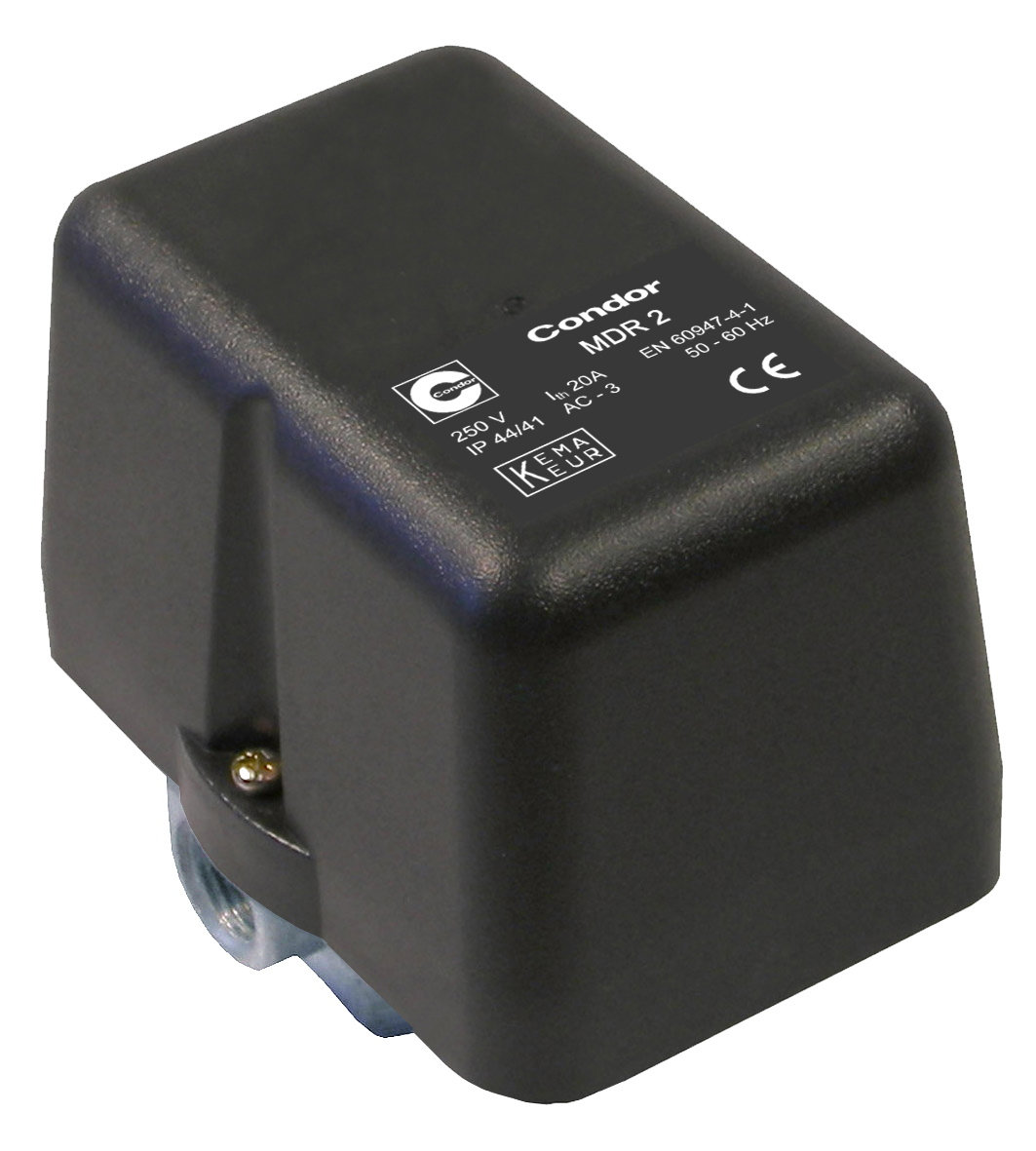

Condor Pressure Switch MDR 2/11 4-12 bar F4 3/8" Alu
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V
Einsatz: Druckluft: Druckschalter Kompressor
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 2/11 bar 226888
Wechselstromausführung
Schaltvermögen 2,2 kW
Druckbereich 4,00 - 12,00 bar
2-polig (Öffner)
nach EN 60947
Druckschaltertyp: GFA BAAA 070A090 XAA XXX siehe weitere Informationen: siehe Technische Daten (PDF 355 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen für die nachträgliche Montage, entsprechende Verschlussstopfen für nicht benötigte Anschlüsse siehe unter "Zubehör".
| Thread / connection | F4 3/8" Alu |
| Motor switching capacity (KW) | 2,2 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Wechselstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 250 V |
| Contact function | 2-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 320 |
| Pressure range (bar) | 4-12 |
| Model range - Pressure switch | MDR 2 |
| Ein / Aus Schaltknopf | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|
![[226895] Condor Pressure Switch MDR 2/11 4-12 bar F4 1/2" Alu](/web/image/product.template/217585/image_128/%5B226895%5D%20Condor%20Pressure%20Switch%20MDR%202-11%204-12%20bar%20F4%201-2%22%20Alu?unique=2d0ecfe)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
108.30 € | |
![[219408] Condor Pressure Switch MDR 2/11 4-12 bar F4 1/4" Alu](/web/image/product.template/217580/image_128/%5B219408%5D%20Condor%20Pressure%20Switch%20MDR%202-11%204-12%20bar%20F4%201-4%22%20Alu?unique=02c3e5e)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
108.30 € | |

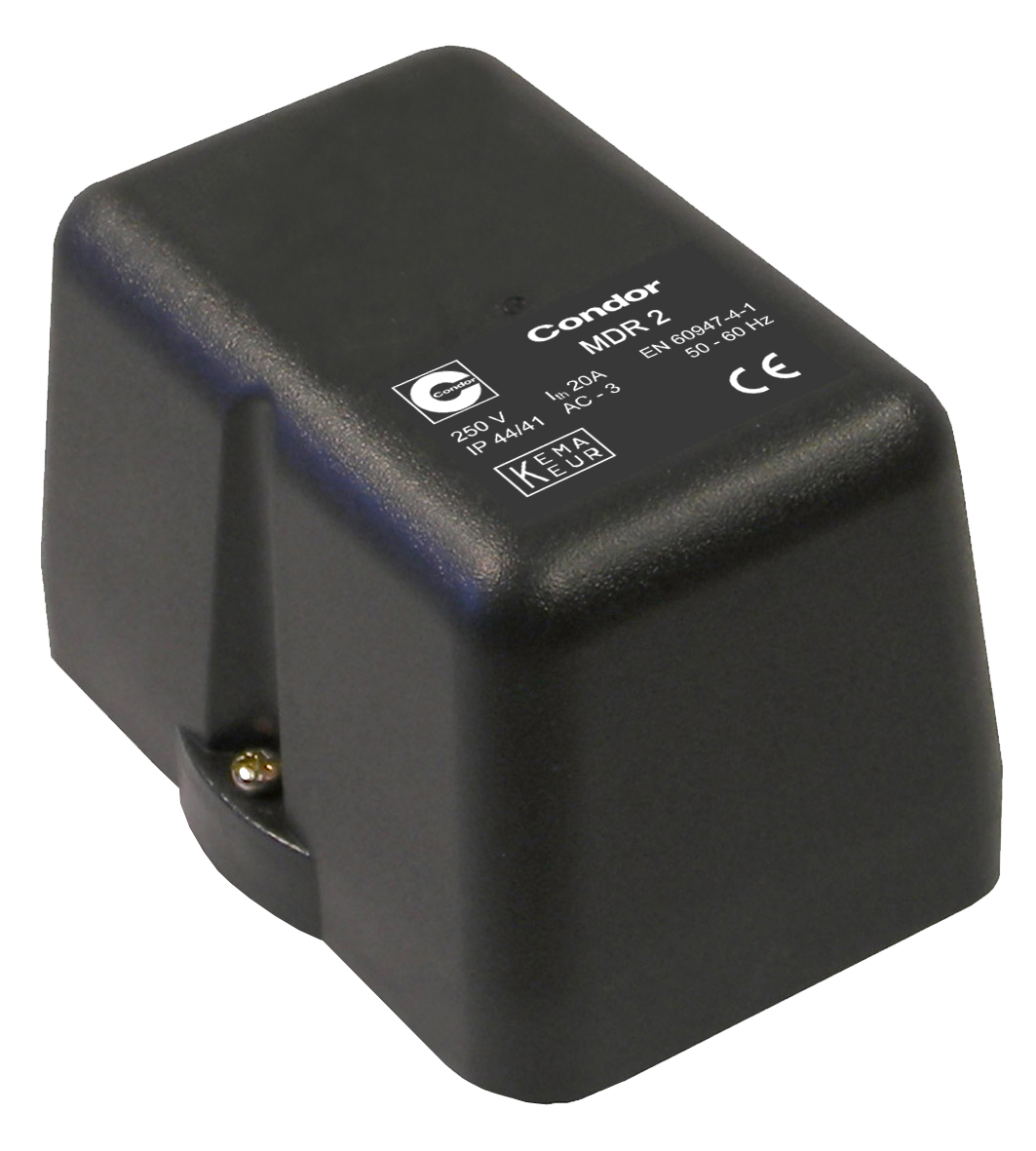

![[217404] Condor Pressure Switch MDR 2/11 4-12 bar G 1/4" Alu](/web/image/product.template/217579/image_128/%5B217404%5D%20Condor%20Pressure%20Switch%20MDR%202-11%204-12%20bar%20G%201-4%22%20Alu?unique=e5ac267)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
95.60 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200666] Condor Unloader valve EV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95462/image_128/%5B200666%5D%20Condor%20Unloader%20valve%20EV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2 für Condor MDR 2 und MDR 21 Druckschalter |
17.20 € | |
![[200680] Condor Unloader valve EV 2 S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95463/image_128/%5B200680%5D%20Condor%20Unloader%20valve%20EV%202%20S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2S für Condor MDR 2 und MDR 21 Druckschalter |
17.20 € | |
![[200697] Condor Plastic unloader valve (90°) EV 2W with screw connection for 6 mm plastic or discharge copper tube](/web/image/product.template/95464/image_128/%5B200697%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20discharge%20copper%20tube?unique=1e5111e)
|
Entlastungsventil EV 2W für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200703] Condor Plastic unloader valve (90°) EV 2Wi with screw connection for 1/4" mm plastic or discharge copper tube](/web/image/product.template/95465/image_128/%5B200703%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20discharge%20copper%20tube?unique=1e5111e)
|
Entlastungsventil EV 2Wi für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200710] Condor Plastic unloader valve (90°) EV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95466/image_128/%5B200710%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2WS für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200727] Condor Delayed unloader valve AEV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95467/image_128/%5B200727%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2 für Condor MDR 2 und MDR 21 Druckschalter |
23.10 € | |
![[200741] Condor Delayed unloader valve AEV 2S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95468/image_128/%5B200741%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2S für Condor MDR 2 und MDR 21 Druckschalter |
23.10 € | |
![[200758] Condor Delayed unloader valve (90°) AEV 2W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95469/image_128/%5B200758%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2W für Condor MDR 2 und MDR 21 Druckschalter |
30.20 € | |
![[200765] Condor Delayed unloader valve (90°) AEV 2Wi with screw connection for 1/4" mm plastic or copper discharge tube](/web/image/product.template/95470/image_128/%5B200765%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2Wi für Condor Druckschalter MDR 2 und MDR 21 |
30.20 € | |
![[200772] Condor Delayed unloader valve (90°) AEV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95471/image_128/%5B200772%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2WS für Condor Druckschalter MDR 2 und MDR 21 |
30.20 € | |
![[200888] Condor Grommet WN for cable gland MDR 2, 4 und 43](/web/image/product.template/95482/image_128/%5B200888%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%202%2C%204%20und%2043?unique=1e5111e)
|
Condor Würgenippel für Kabelverschraubungen für Druckschalter MDR 1, MDR 2, MDR 4 und MDR 43 |
4.30 € | |
![[200895] Condor Conduits PG 11 G for mounting cable glands (inner thread)](/web/image/product.template/95472/image_128/%5B200895%5D%20Condor%20Conduits%20PG%2011%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=1e5111e)
|
Condor Gewindestutzen für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
5.70 € | |
![[200901] Condor Cable gland PG 11 V complete](/web/image/product.template/95473/image_128/%5B200901%5D%20Condor%20Cable%20gland%20PG%2011%20V%20complete?unique=1e5111e)
|
Condor Kabelverschraubung komplett für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
6.80 € | |
![[200918] Condor Cable gland PG 11 ZK with strain relief and cable support](/web/image/product.template/95475/image_128/%5B200918%5D%20Condor%20Cable%20gland%20PG%2011%20ZK%20with%20strain%20relief%20and%20cable%20support?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
8.00 € | |
![[200925] Condor Cable gland PG 11 Z with strain relief](/web/image/product.template/95474/image_128/%5B200925%5D%20Condor%20Cable%20gland%20PG%2011%20Z%20with%20strain%20relief?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
7.20 € | |
![[200932] Condor Cable gland PG 13,5 V complete](/web/image/product.template/95477/image_128/%5B200932%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20V%20complete?unique=1e5111e)
|
Condor Kabelverschraubung komplett für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
7.00 € | |
![[200956] Condor Cable gland PG 13,5 Z with strain relief](/web/image/product.template/95478/image_128/%5B200956%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20Z%20with%20strain%20relief?unique=1e5111e)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
7.50 € | |
![[200963] Condor Conduits PG 13,5 G for mounting cable glands (inner thread)](/web/image/product.template/95476/image_128/%5B200963%5D%20Condor%20Conduits%20PG%2013%2C5%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=1e5111e)
|
Condor Gewindestutzen für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
5.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[217510] Condor Cover H2 without On/Off lever (Neutral version without marking) for MDR 2](/web/image/product.template/95480/image_128/%5B217510%5D%20Condor%20Cover%20H2%20without%20On-Off%20lever%20%28Neutral%20version%20without%20marking%29%20for%20MDR%202?unique=1e5111e)
|
Haube H2 für MDR 2 Condor Druckschalter |
10.00 € | |
