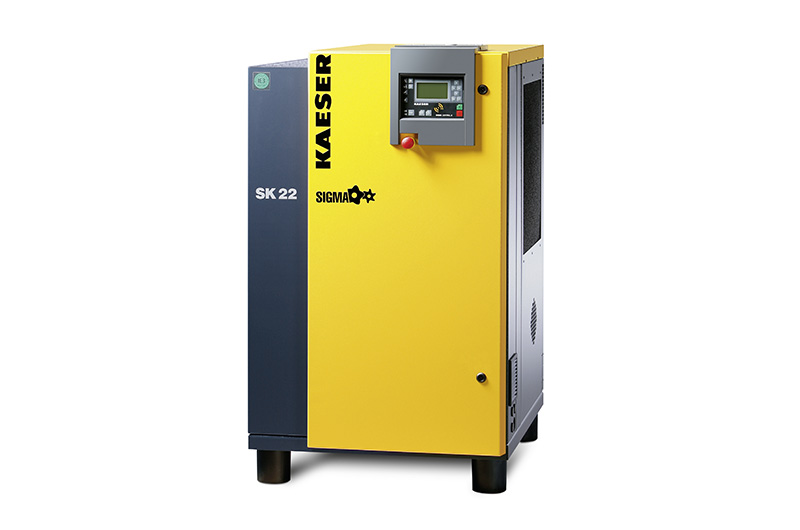

KAESER Screw compressor model SK 22-8 T SC2 OAL
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
101960.01Category :
With refrigeration dryerWeight :
387.00 kgDelivery area :
Germany| Volume flow at overpressure (m³/min) | 2,00 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (KW) | 11 |
| Drive motor efficiency class | IE3 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2.500 |
| Max. usable heat output | 13,2 |
| Max. usable heat output | 9,4 |
| Required supply air opening (m2) | 0,45 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 26 A |
| Fuse: Max current | 32 A |
| Cooling fluid filling quantity (litres) | 7,2 |
| Width (mm) | 750 |
| Depth (mm) | 1.240 |
| Height (mm) | 1.260 |
| Weight (kg) | 387 |
| Compressed air connection | G 1 |
| Sound pressure level (dbA) | 66 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,12 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,52 |
| CO2 equivalent (tonnes) | 0,33 |
| Global warming potential GWP | 631 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[102112.10400] KAESER Filter adsorption model F22KA G 1"](/web/image/product.template/262280/image_128/%5B102112.10400%5D%20KAESER%20Filter%20adsorption%20model%20F22KA%20G%201%22?unique=df0d81d)
|
564.00 € | ||
![[102115.10441] KAESER Filter Extra model F22KE G 1", ECO-DRAIN 31F](/web/image/product.template/262289/image_128/%5B102115.10441%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%201%22%2C%20ECO-DRAIN%2031F?unique=df0d81d)
|
917.00 € | ||
![[3.5316.50380] KAESER Compressed air tank 500/11 st. CE/SPV](/web/image/product.template/102335/image_128/%5B3.5316.50380%5D%20KAESER%20Compressed%20air%20tank%20500-11%20st.%20CE-SPV?unique=df0d81d)
|
Ausführung stehend, zulässiger Höchstüberdruck 11 bar Hinweis (Abbildung): |
2,190.00 € | |
![[5.3495.0] KAESER Oil-water separator model Aquamat CF 6](/web/image/product.template/3693/image_128/%5B5.3495.0%5D%20KAESER%20Oil-water%20separator%20model%20Aquamat%20CF%206%20?unique=df0d81d)
|
Hochwertiger Öl Wasser Trenner / Öl Wasser Separator zum Abscheiden von Öl aus dem Kondensat |
680.00 € | |
![[920023.2] KAESER Pressure maintenance system Model DHS4.0 25G G1" PS16](/web/image/product.template/102676/image_128/%5B920023.2%5D%20KAESER%20Pressure%20maintenance%20system%20Model%20DHS4.0%2025G%20G1%22%20PS16?unique=df0d81d)
|
2,485.00 € | ||
