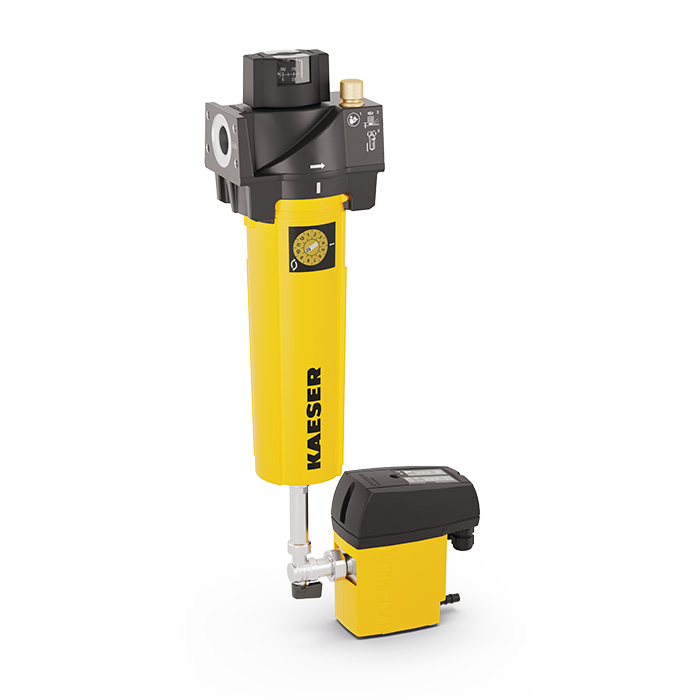

KAESER Filter Extra model F22KE G 1", ECO-DRAIN 31F
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
102115.10441Category :
Compressed air filtersWeight :
4.40 kgDelivery area :
Deutschland| Volume flow (m³/min) | 2,20 |
| Compressed air inlet connection | G 1" |
| Differential pressure in new condition | <0,05 |
| Differential pressure at saturation | <0,2 |
| Residual aerosol content | <0,01 |
| Min. overpressure (bar) | 2 |
| Max. Overpressure (bar) | 16 |
| Weight (kg) | 4,4 |
| Width (mm) | 241 |
| Height (mm) | 538 |
| Depth (mm) | 225 |
| Condensate drain | ECO-DRAIN 31F |
Product variants
![[MDM500199794] KAESER Filter Extra model F22KE G 1", Ball valve](/web/image/product.template/262474/image_128/%5BMDM500199794%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%201%22%2C%20Ball%20valve?unique=bd21dbb)
![[MDM500011421] KAESER Filter Extra model F22KE G 1", ECO-DRAIN 30](/web/image/product.template/262383/image_128/%5BMDM500011421%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%201%22%2C%20ECO-DRAIN%2030?unique=bd21dbb)
![[102115.10411] KAESER Filter Extra model F22KE G 1", Float drain](/web/image/product.template/262288/image_128/%5B102115.10411%5D%20KAESER%20Filter%20Extra%20model%20F22KE%20G%201%22%2C%20Float%20drain?unique=bd21dbb)
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

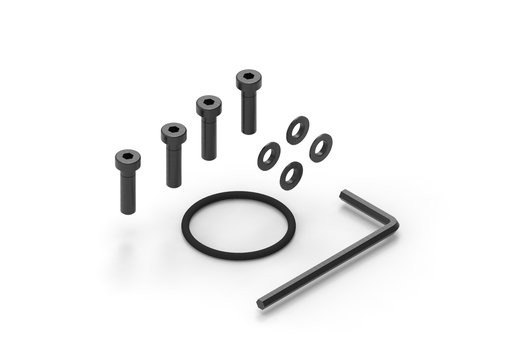

![[405342.0] KAESER mounting KIT connecting flange KF2.2](/web/image/product.template/226606/image_128/%5B405342.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF2.2?unique=bd21dbb)
|
Montage-KIT / Verbindungskit für 2 KAESER-Druckluftfilter |
40.22 € | |

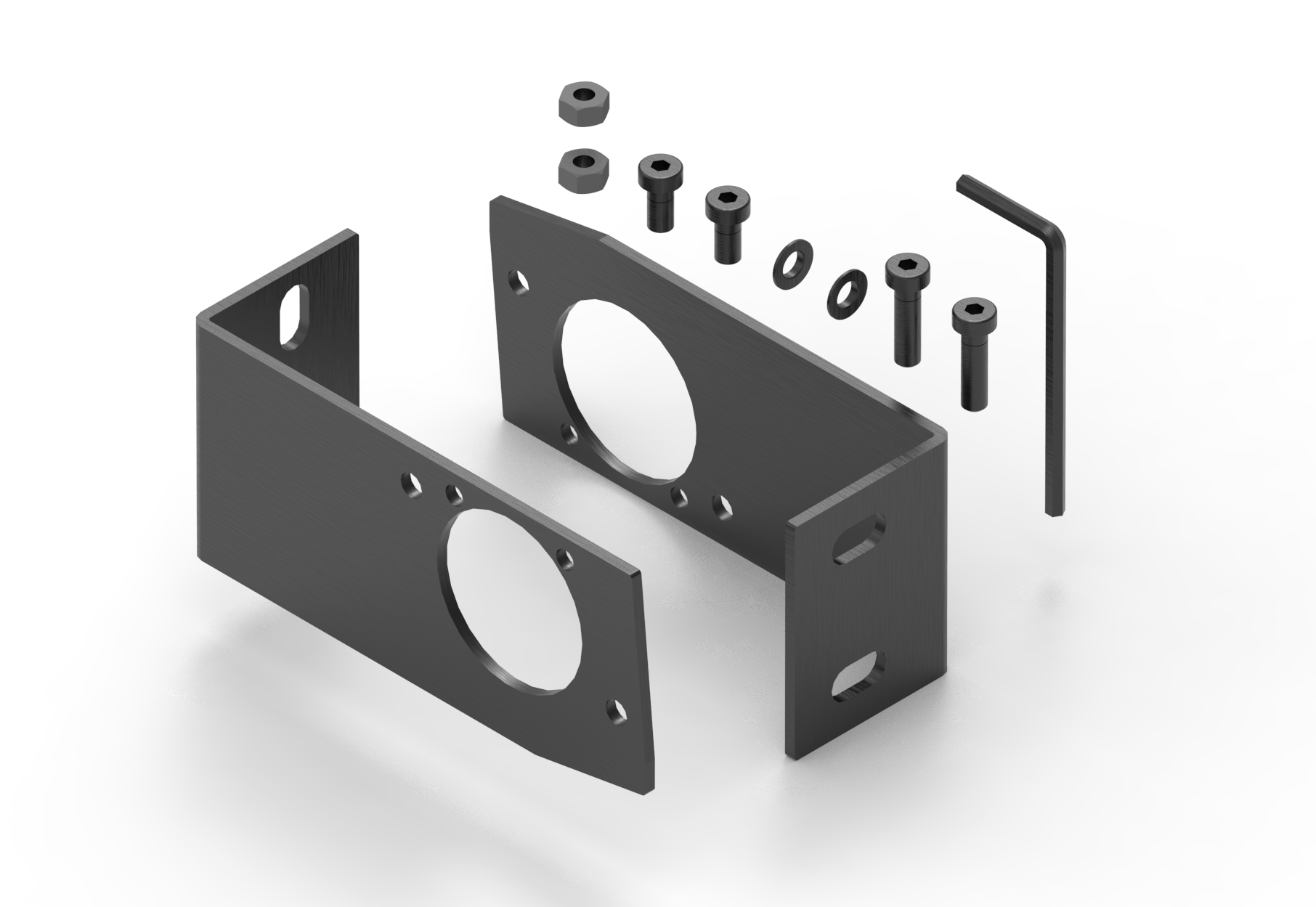

![[4E0520.0] KAESER KIT wall mount filter KF2.2](/web/image/product.template/234770/image_128/%5B4E0520.0%5D%20KAESER%20KIT%20wall%20mount%20filter%20KF2.2?unique=bd21dbb)
|
KIT Wandhalter für KAESER-Druckluftfilter |
72.00 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=bd21dbb)
|
568.82 € | ||

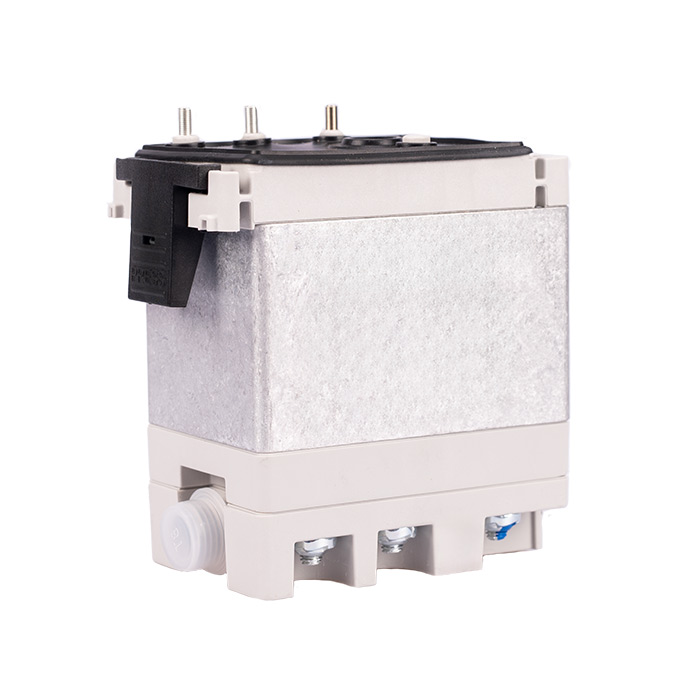

![[8.2474.01540] KAESER Service-Unit ECO-DRAIN 31/31F](/web/image/product.template/16858/image_128/%5B8.2474.01540%5D%20KAESER%20Service-Unit%20ECO-DRAIN%2031-31F?unique=bd21dbb)
|
Für Kondensatableiter KAESER ECO-DRAIN 31/31F |
180.88 € | |
