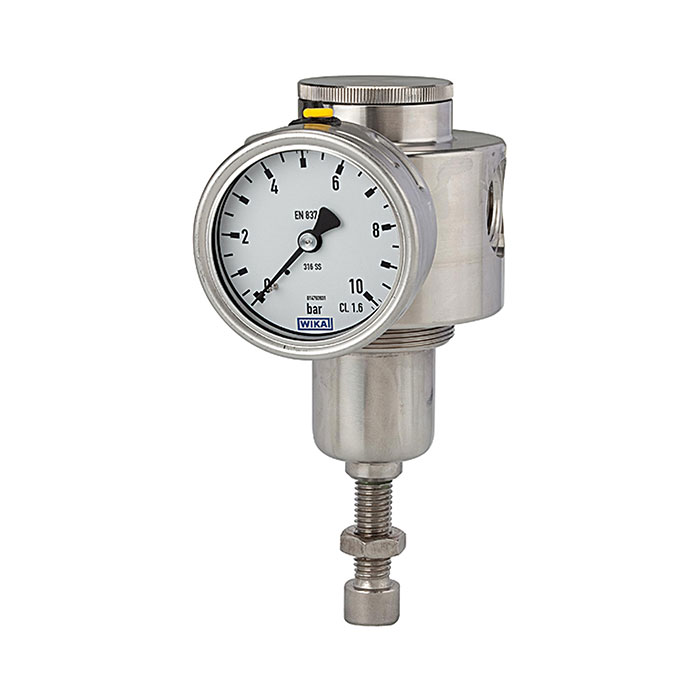

RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 1 - 15 bar
Type number: 571.14 D
EAN: 4047322101882
Edelstahl-Druckregler, 1.4404, ohne Sekundärentl. (nicht rücksteuerbar) inkl. Mano., G 1/4, Regelber. 1,0 - 15 bar, PE max. 50 bar
| Inlet pressure max. | 50 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | FKM |
| Membrane | PTFE on NBR carrier |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 1300 l/min |
| Control range min. | 1 bar |
| Control range max. | 15 bar |
| A | 64 mm |
| B | 160 mm |
| C | 37 mm |
| Class name | STAINLESS STEEL |
