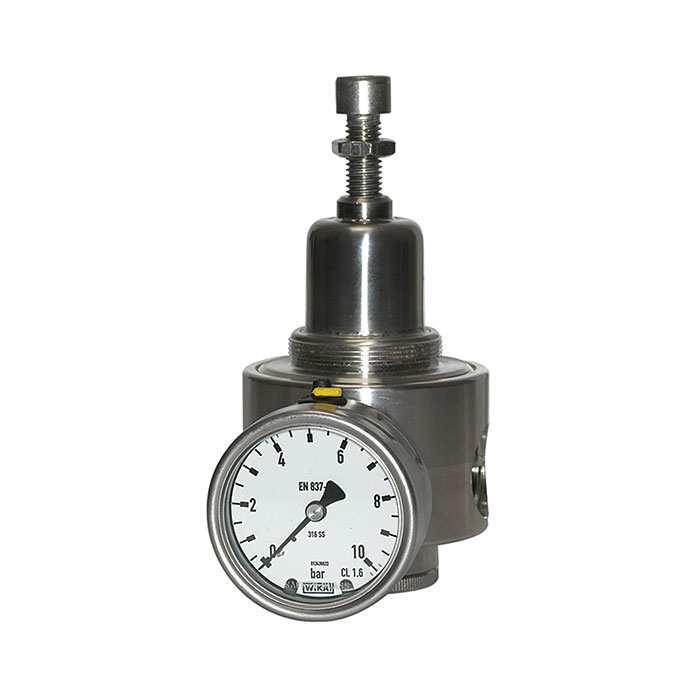

RIEGLER Stainless steel pressure regulator, 1.4404, G 1/4, 0.5 - 8 bar
Type number: 570.14 B
EAN: 4047322101783
Edelstahl-Druckregler, 1.4404, mit Sekundärentlüftung (rücksteuerbar), inkl. Mano., G 1/4, Regelber. 0,5 - 8 bar, PE max. 30 bar
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | FKM |
| Membrane | PTFE on NBR carrier |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 1300 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| A | 64 mm |
| B | 160 mm |
| C | 37 mm |
| Class name | STAINLESS STEEL |
