Overcurrent relay

Condor overcurrent relay - Reliable electromechanical protection in the main circuit

The thermal overcurrent relay offers efficient electromechanical protection in the main circuit and therefore provides an economical solution. It monitors the temperature of the motor winding indirectly via the current flowing in the supply line. If the specified overcurrent value is exceeded, the bimetallic elements in the overcurrent relay deform due to the thermal heat generated. This reliably interrupts the control circuit to the motor.

Important note: Pressure adjustment is only possible on the mounted pressure switch when the appliance is under pressure. Make sure that the appliance is de-energized.

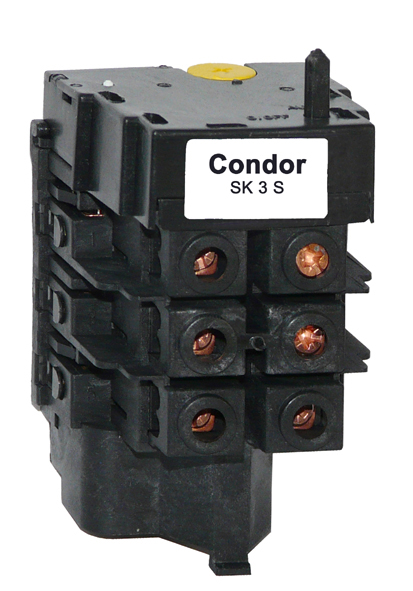

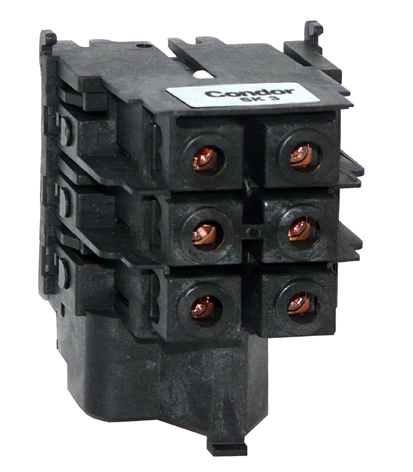

Overcurrent relay for MDR 3 pressure switch:

The thermal overcurrent relay R3 is designed for voltages of 24-480 V at 50 or 60 Hz. It is a 3-pole overcurrent relay that is available from 0.63 A to 30.00 A in various gradations.

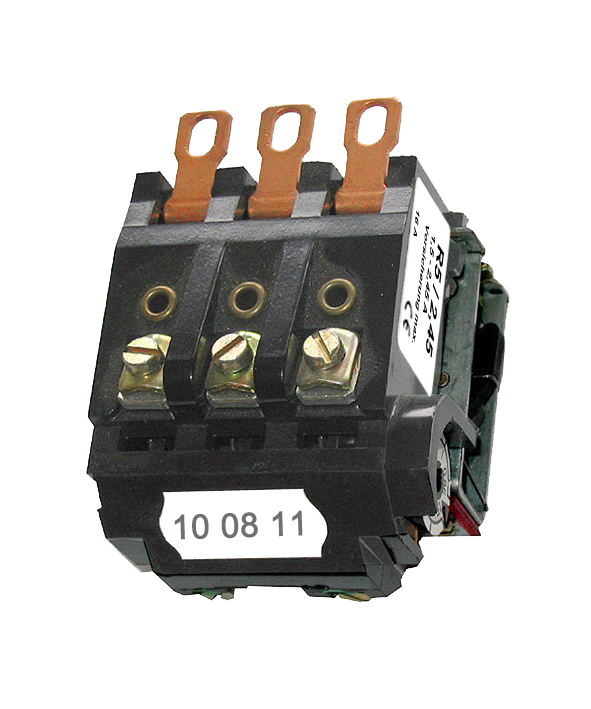

Overcurrent relay for MDR 5 pressure switch:

The thermal overcurrent relay R5 is also available as a 3-pole relay and covers a current range from 0.86 A to 18.00 A in several steps.

You can narrow down your search for the right overcurrent relay by selecting the desired model and ampere range in the product selection menu on the left! Trust in the reliability of Condor overcurrent relays to maximize the safety and efficiency of your systems.
