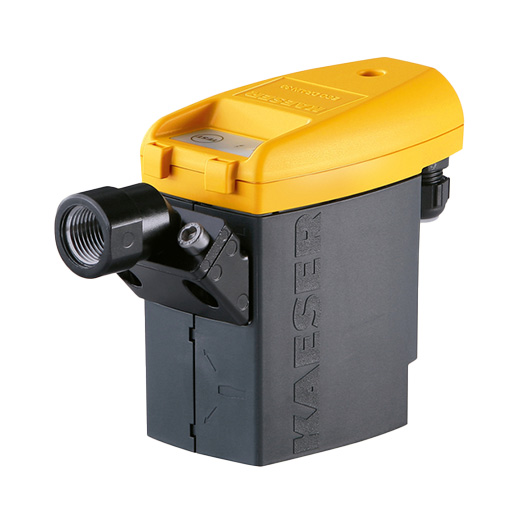

KAESER Steam trap model ECO-DRAIN 30 18-72VDC
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
| Condensate temperature min. (°C) | +1 |
| Max. condensate temperature (°C) | +60 |
| Electrical supply | 95-240 VAC / 50-60 Hz |
| Max. input power (W) | 3 |
| Min. overpressure (bar) | 1 |
| Max. Overpressure (bar) | 16 |
| Protection class | IP 67 |
| Condensate inlet connection | G ½ |
| Condensate drain connection | G ¼ |
| Weight (kg) | 0,8 |
| Width (mm) | 164 |
| Depth (mm) | 65 |
| Height (mm) | 118 |
| Max. Volume flow for climate zone 2 for | 2,5 |
| Max. Volume flow for climate zone 2 for | 5 |
| LED display fault | Nein |
| Floating contact Fault | Nein |
