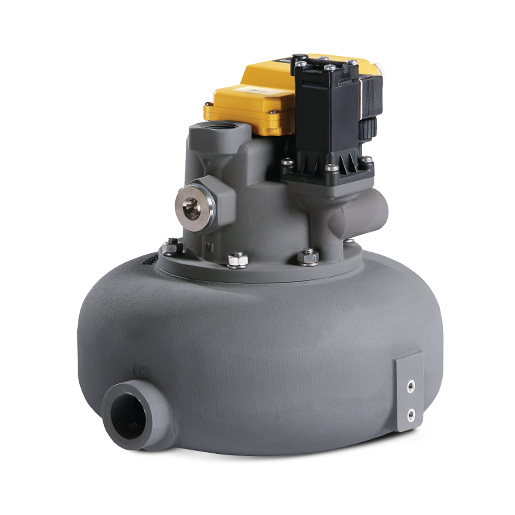

KAESER condensate drain model ECO-DRAIN 16 CO 230VAC
Die elektronischen Kondensatableiter ECO-DRAIN von KAESER leiten zuverlässig und ohne Druckverlust Kondensat aus Zyklonen, Druckluftbehältern und Kältetrocknern ab.
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
| Condensate temperature min. (°C) | +1 |
| Max. condensate temperature (°C) | +60 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Max. input power (W) | 8 |
| Min. overpressure (bar) | 1 |
| Max. Overpressure (bar) | 16 |
| Protection class | IP 65 |
| Condensate inlet connection | 2x G ¾; 1x G 1 |
| Condensate drain connection | G ½ |
| Weight (kg) | 5,9 |
| Width (mm) | 260 |
| Depth (mm) | 280 |
| Height (mm) | 280 |
| Max. Volume flow for climate zone 2 for | 1.400 |
| Max. Volume flow for climate zone 2 for | 2.800 |
| LED display fault | Ja |
| Floating contact Fault | Ja |
