Filtration Group filter element line filter Pi 23063 DN PS 10
High-quality filter element from Filtration Group for the filtration of hydraulic and lubricating fluids, fuels and flame-retardant and synthetic fluids.
Filtration fineness: 10 µm
Nominal size: 630 l/min
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element Inline filter Pi 23063 DN PS 10 / 77925639
Longer service life than conventional filters
Lower energy consumption due to lower differential pressure for longer
Up to 30% more dirt-holding capacity compared to standard products
Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
With the new PulseShieldTM series (PS material) with up to 3 optimally matched glass fiber layers, the dirt holding capacity has been increased by up to 30% compared to conventional glass fiber filter elements (SMX material).| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 630 |
| Height (mm) | 398.5 |
| Outer diameter (mm) | 100 |
| Inner diameter (mm) | 60.4 |
| Mounting diameter (mm) | 60.4 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Glass fiber |
| Filter fineness (micrometres) | 10 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Glass fiber |
| Nominal height (mm) | 398,5 |
| Medium | Hydraulic oil |
| Nominal size | 630 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

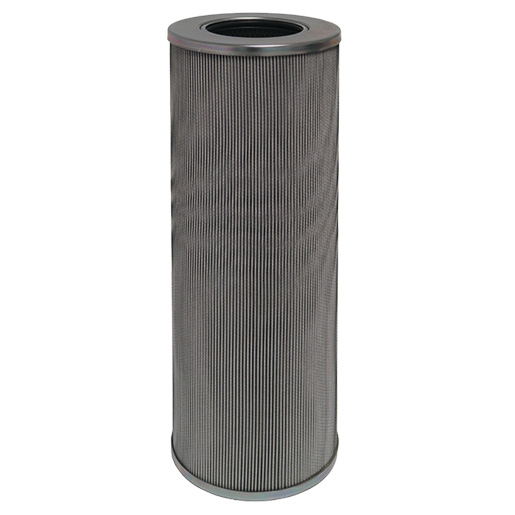

![[76910228] Filtration Group Comex N 0630 DN 10](/web/image/product.template/52270/image_128/%5B76910228%5D%20Filtration%20Group%20Comex%20N%200630%20DN%2010%20?unique=987fd18)
|
