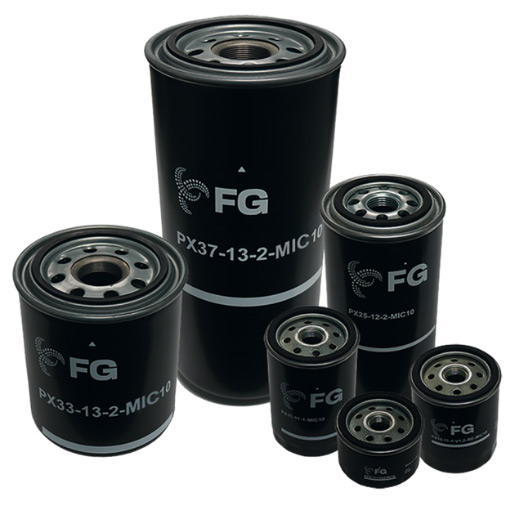

Filtration Group filter element PX25-12-2-V2,5-RD-MIC10 (Nachfolger für CO 171)
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Outer diameter (mm) | 93.2 |
| Dichtungsaußendurchmesser (mm) | 72 |
| Dichtungsinnendurchmesser (mm) | 62 |
| Filter fineness (micrometres) | 10 |
| Filter material | Zellulose |
| Gewindebezeichnung | 1"-12UNF-2B |
| Höhe Nennmaß (mm) | 207.5 |
| Öffnungsdruck (bar) | 2.5 |
| Seal material | NBR |
| zulässiger Betriebsdruck (bar) | 16 |
