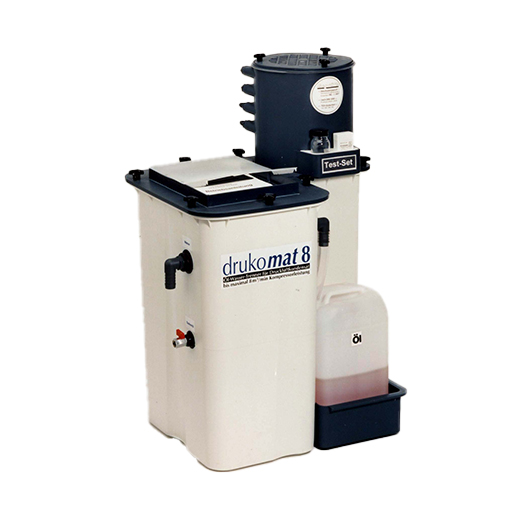

Wortmann Oil-water-seperators model drukomat 8
Drukomat 8 Öl Wasser Trenner, Neugerät incl. einem Filterset.
bis 8 m³/min Kompressorleistung.
Professionelle Kondensataufbereitung mit einem Ölabscheider / Wasserabscheider zum Schutz der Druckluftanlage bzw. des Kompressors. Der Wortmann Öl-Wasser-Trenner trennt zuverlässiges ölhaltiges Kondensat und sorgt für ölfreie Druckluft.
Wortmann
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment.
Wortmann Drukomat 8 oil water separator 3002, incl. a filter set.
The Drukomat 8 reliably de-oils the condensate produced through a combination of deflection and calming chamber, as well as a series connection of coalescence and activated carbon filters directly at the point of origin.
The treated condensate can be discharged directly into the sewer system as purified water.
Filtration:
Water side: 1 x 3.8 kg
Air side: 1 x 1.5 kg
For further technical data, see "Downloads" below.
| Max. Compressor capacity (m³/min) | 8 |
| Container volume (litres) | 120 |
| Height (mm) | 965 |
| Width (mm) | 620 |
| Depth (mm) | 520 |
| Condensate inlet connection | 4x 1/2" Gewinde mit Schlauchtülle |
| Water drain connection | 1" Gewinde mit Schlauchtülle |
| Oil drain connection | 1" Gewinde mit Schlauchtülle |
| Filtering activated carbon water (kg) | 1x 3,8 |
| Activated carbon air filtration (kg) | 1x 1,5 |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[WO-3065] Wortmann Replacement filterset for Drukomat 2 + Drukomat 4 + Drukomat 8](/web/image/product.template/121792/image_128/%5BWO-3065%5D%20Wortmann%20Replacement%20filterset%20for%20Drukomat%202%20%2B%20Drukomat%204%20%2B%20Drukomat%208%20?unique=7d9e1fe)
|
Das Original in Topqualität Aktivkohle Austauschfilter Komplettset passend
|
214.20 € | |
