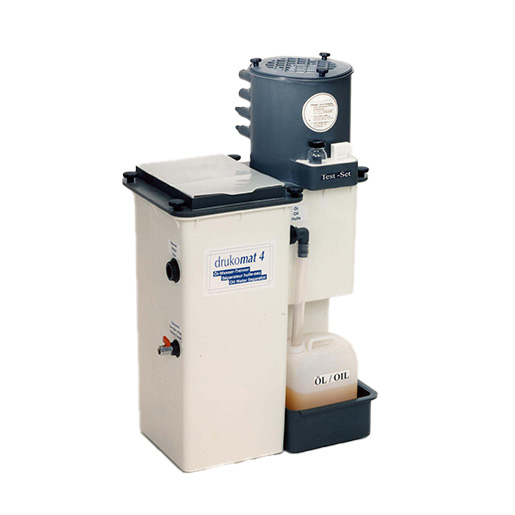

Wortmann Oil-water-seperators model drukomat 4
Drukomat 4 Öl Wasser Trenner, Neugerät incl. einem Filterset.
bis 5 m³/min Kompressorleistung.
Professionelle Kondensataufbereitung mit einem Ölabscheider / Wasserabscheider zum Schutz der Druckluftanlage bzw. des Kompressors. Der Wortmann Öl-Wasser-Trenner trennt zuverlässiges ölhaltiges Kondensat und sorgt für ölfreie Druckluft.
Wortmann
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment.
Wortmann Drukomat 4 oil water separator 3001, incl. a filter set.
The Drukomat 4 reliably de-oils the condensate produced through a combination of deflection and settling chamber, as well as a series connection of coalescence and activated carbon filters directly at the point of origin.
The treated condensate can be discharged directly into the sewer system as purified water.
Filtration:
Water side: 1 x 3.8 kg
Air side: 1 x 1.5 kg
For further technical data, see "Downloads" below.
Max. Compressor capacity (m³/min) | 5 |
Container volume (litres) | 74 |
Height (mm) | 965 |
Width (mm) | 600 |
Depth (mm) | 380 |
Condensate inlet connection | 4x 1/2" |
Water drain connection | 1" |
Oil drain connection | 1" |
Filtering activated carbon water (kg) | 1x 3,8 |
Activated carbon air filtration (kg) | 1x 1,5 |
