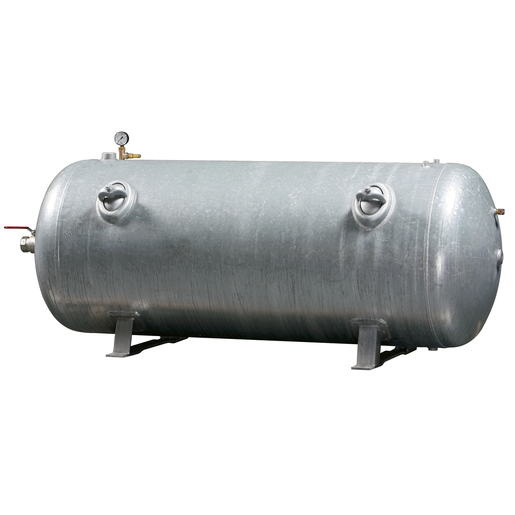

KAESER Compressed air tank 5000/11 lg. CE/PED
Ausführung liegend, zulässiger Höchstüberdruck 11 bar
Hinweis (Abbildung):
Der Behälter wird ohne Armaturensatz / Manometersatz geliefert.
Wir empfehlen diesen mitzubestellen!
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
3.5170.30030Category :
Horizontal VersionWeight :
1,050.00 kgDelivery area :
GermanyKAESER compressed air tanks
Compressed air tank - horizontal version
Rely on KAESER air reservoirs for economy and safety. In addition to their high-quality workmanship, they are characterized by excellent corrosion protection. Plastic protective caps on all connection nozzles ensure optimum protection during transportation to the customer. Thanks to large maintenance openings, cleaning, maintenance and tank inspections are effortless and uncomplicated.
Inspection intervals of up to five years
Optimum corrosion protection (hot-dip galvanized)
Excellent corrosion protection
Easily accessible and generously dimensioned maintenance openings
Note:
The tank is supplied without fitting set and pressure gauge set.
We recommend ordering these at the same time - see under accessories
| Design | lying |
| Volume of compressed air tank (litres) | 5.000 |
| Max. Overpressure (bar) | 11 |
| Diameter (mm) | 1.400 |
| Container length (mm) | 3.470 |
| Weight (kg) | 1.050 |
| Compressed air inlet connection | DN 100 |
| Compressed air outlet connection | DN 100 |
| Safety valve connection | G 1½" |
| Manometer set connection | G ½" |
| Condensate drain connection | G 2" |
| Container acceptance | DIRECTIVE 2014/68/EU |
| Maintenance opening according to AD2000 | 1x manhole |
| Min. operating temperature (°C) | -10 |
| Max. Operating temperature (°C) | +50 |
| Surface coating | galvanized |
Product variants
| Product | Price | ||
|---|---|---|---|

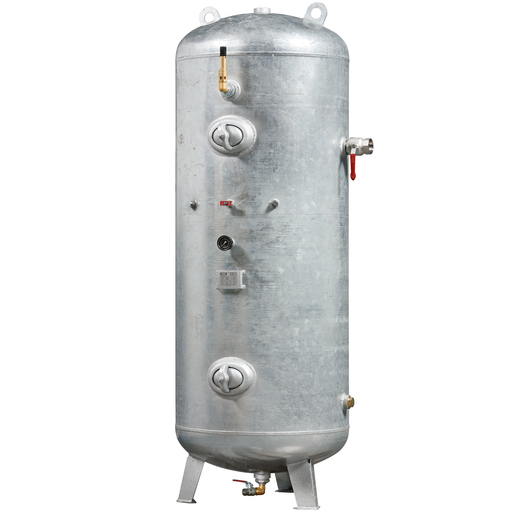

![[3.5382.10290] KAESER Compressed air tank 5000/11 st. CE/PED](/web/image/product.template/102340/image_128/%5B3.5382.10290%5D%20KAESER%20Compressed%20air%20tank%205000-11%20st.%20CE-PED?unique=40ae9d8)
|
Ausführung stehend, zulässiger Höchstüberdruck 11 bar Hinweis (Abbildung): |
13,845.65 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

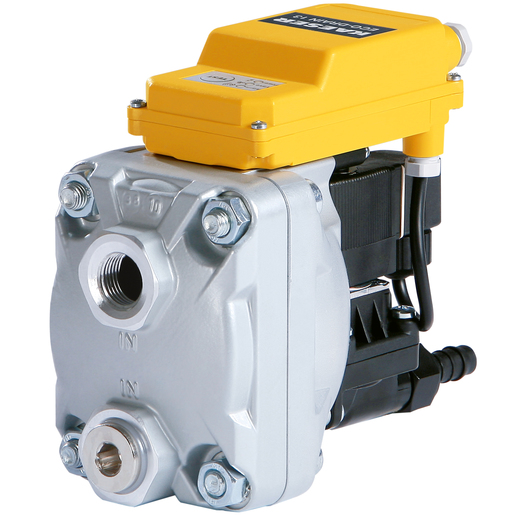

![[8.4512.0] ECO-DRAIN 14 condensate drain set for DLB LIEG 5000l/8000l/10000l/11bar/16bar](/web/image/product.template/236646/image_128/%5B8.4512.0%5D%20ECO-DRAIN%2014%20condensate%20drain%20set%20for%20DLB%20LIEG%205000l-8000l-10000l-11bar-16bar?unique=e46d50e)
|
Die elektronischen Kondensatableiter ECO-DRAIN von KAESER leiten zuverlässig und ohne Druckverlust Kondensat aus Zyklonen, Druckluftbehältern und Kältetrocknern ab. |
1,243.55 € | |

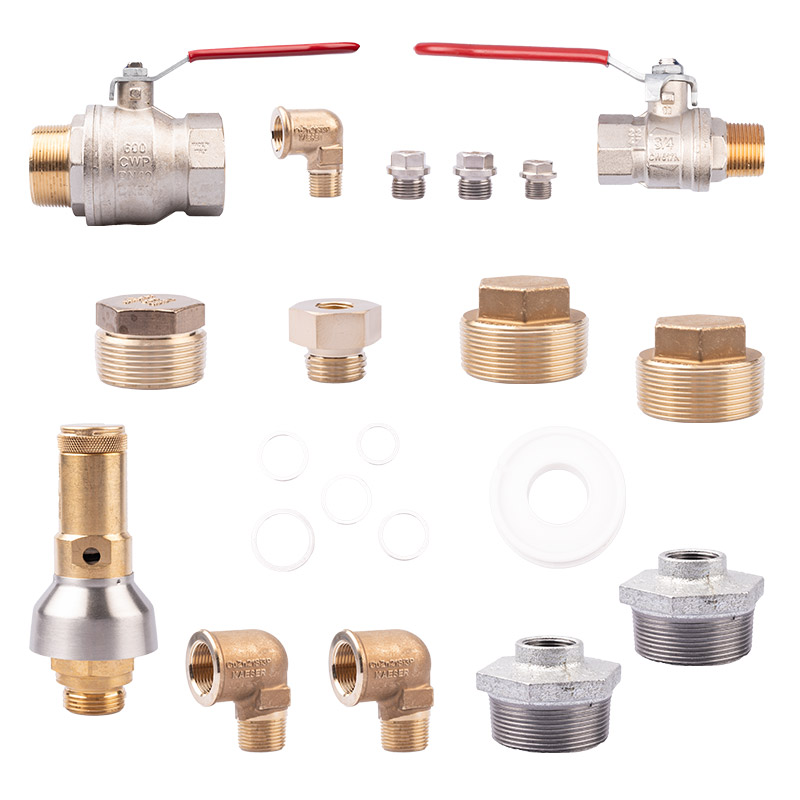

![[DEDLBLIEG500011] KAESER fitting set for air receiver 5000/11 horizontal version](/web/image/product.template/236591/image_128/%5BDEDLBLIEG500011%5D%20KAESER%20fitting%20set%20for%20air%20receiver%205000-11%20horizontal%20version?unique=75b824f)
|
Hinweis Bild: Abbildung ähnlich |
1,038.87 € | |
