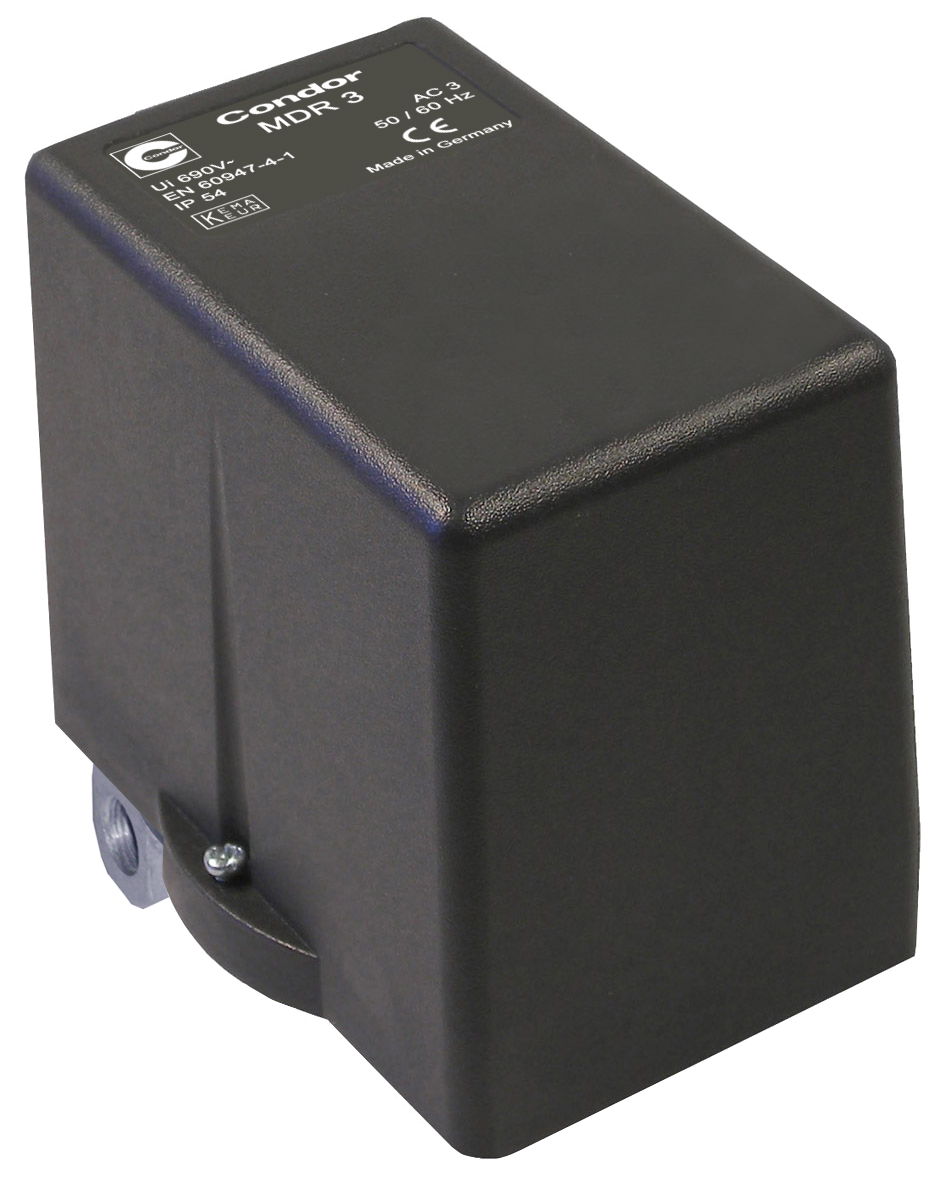

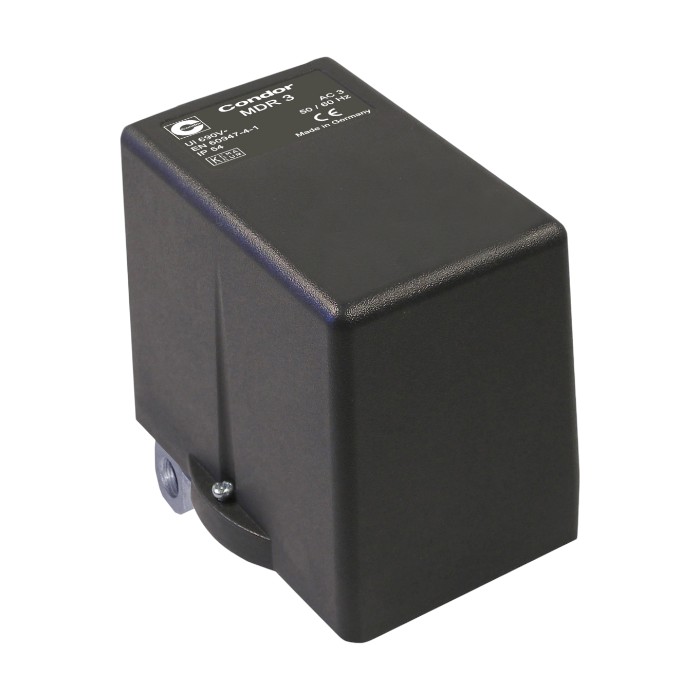

Condor Pressure Switch MDR 3/16 6-16 bar F4 1/2" Alu
Condor MDR 3/16 bar, Spannung Drehstrom 400 V
Druckluft / Wasser: Druckschalter Kompressor / Druckschalter Pumpe
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 3/16 bar 227021 incl. SK 3 Schaltkammer ohne Schaltschloss (ist in Grundausstattung der MDR 3 enthalten)
Drehstromausführung
Schaltvermögen 7,5 (11) kW / 20 HP
passende Überstromrelais lieferbar siehe unter "Zubehör"
Druckbereich 6,00 - 16,00 bar
3-polig (Öffner)
nach EN 60947
UL / CSA-Zulassung
Druckschaltertyp: HDA BAAA 130A160 XAA XXX siehe weitere Informationen: siehe Technische Daten (PDF 446 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen für die nachträgliche Montage, entsprechende Verschlusstopfen für nicht benötigte Anschlüsse siehe unter "Zubehör".
| Thread / connection | F4 1/2"Alu |
| Protection class | IP 54 |
| Motor switching capacity (KW) | 7,5 kW (11kW - auf Anfrage) |
| Max. media temperature (°C) | 80°C |
| Current version | Drehstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 400 V |
| Contact function | 3-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 620 |
| Pressure range (bar) | 6-16 |
| Model range - Pressure switch | MDR 3 |
| Ein / Aus Schaltknopf | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|
![[227014] Condor Pressure Switch MDR 3/16 6-16 bar F4 1/4" Alu](/web/image/product.template/217794/image_128/%5B227014%5D%20Condor%20Pressure%20Switch%20MDR%203-16%206-16%20bar%20F4%201-4%22%20Alu?unique=bd21dbb)
|
Condor MDR 3/16 bar, Spannung Drehstrom 400 V |
108.46 € | |
![[227038] Condor Pressure Switch MDR 3/16 6-16 bar F4 3/8" Alu](/web/image/product.template/217796/image_128/%5B227038%5D%20Condor%20Pressure%20Switch%20MDR%203-16%206-16%20bar%20F4%203-8%22%20Alu?unique=bd21dbb)
|
Condor MDR 3/16 bar, Spannung Drehstrom 400 V |
108.46 € | |
![[226994] Condor Pressure Switch MDR 3/16 6-16 bar G 1/2" Alu](/web/image/product.template/217792/image_128/%5B226994%5D%20Condor%20Pressure%20Switch%20MDR%203-16%206-16%20bar%20G%201-2%22%20Alu?unique=bd21dbb)
|
Condor MDR 3/16 bar, Spannung Drehstrom 400 V |
98.96 € | |

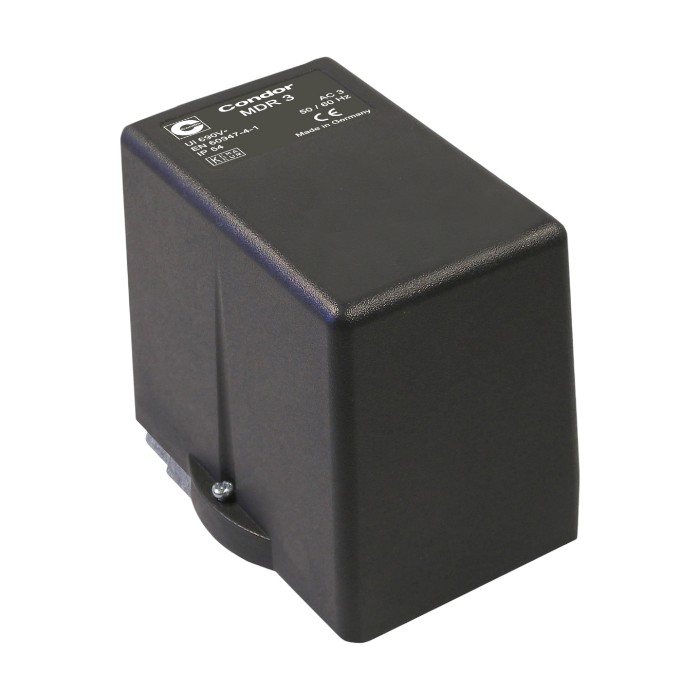

![[227007] Condor Pressure Switch MDR 3/16 6-16 bar G 1/4" Alu](/web/image/product.template/217793/image_128/%5B227007%5D%20Condor%20Pressure%20Switch%20MDR%203-16%206-16%20bar%20G%201-4%22%20Alu?unique=bd21dbb)
|
