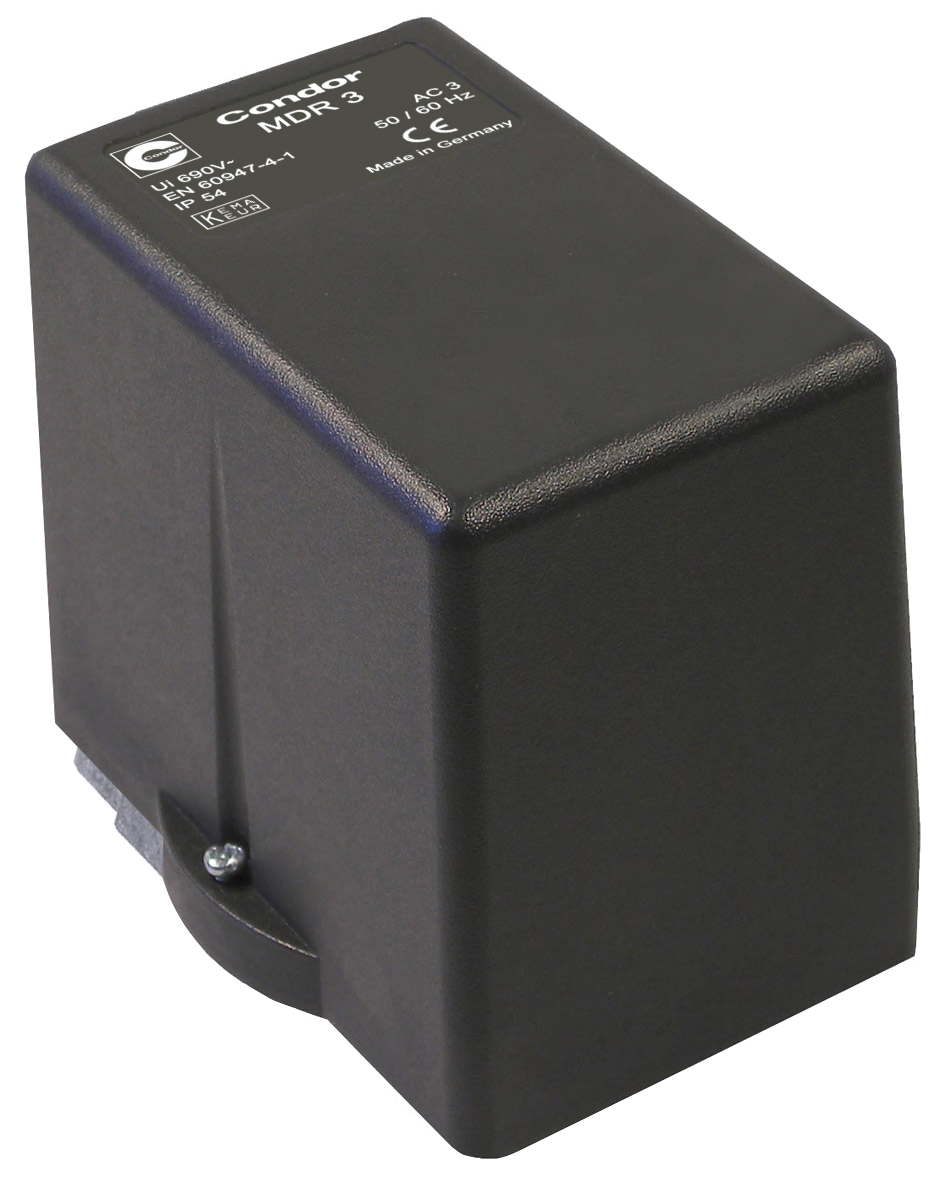

Condor Pressure Switch MDR 3/11 4-11 bar G 1/2" Alu
Condor MDR 3/11 bar, Spannung Drehstrom 400 V
Druckluft / Wasser: Druckschalter Kompressor / Druckschalter Pumpe
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 3/11 bar 226949 incl. SK 3 Schaltkammer ohne Schaltschloss (ist in Grundausstattung der MDR 3 enthalten)
Drehstromausführung
Schaltvermögen 7,5 (11) kW / 20 HP
passende Überstromrelais lieferbar siehe unter "Zubehör"
Druckbereich 4,00 - 11,00 bar
3-polig (Öffner)
nach EN 60947
UL / CSA-Zulassung
Druckschaltertyp: GAA BAAA 090A110 XAA XXX siehe weitere Informationen: siehe Technische Daten (PDF 446 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | G 1/2" Alu |
| Protection class | IP 54 |
| Motor switching capacity (KW) | 7,5 kW (11kW - auf Anfrage) |
| Max. media temperature (°C) | 80°C |
| Current version | Drehstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 400 V |
| Contact function | 3-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 590 |
| Pressure range (bar) | 4-11 |
| Model range - Pressure switch | MDR 3 |
| Ein / Aus Schaltknopf | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|
![[226970] Condor Pressure Switch MDR 3/11 4-11 bar F4 1/2" Alu](/web/image/product.template/218138/image_128/%5B226970%5D%20Condor%20Pressure%20Switch%20MDR%203-11%204-11%20bar%20F4%201-2%22%20Alu?unique=474ce62)
|
Condor MDR 3/11 bar, Spannung Drehstrom 400 V |
111.10 € | |

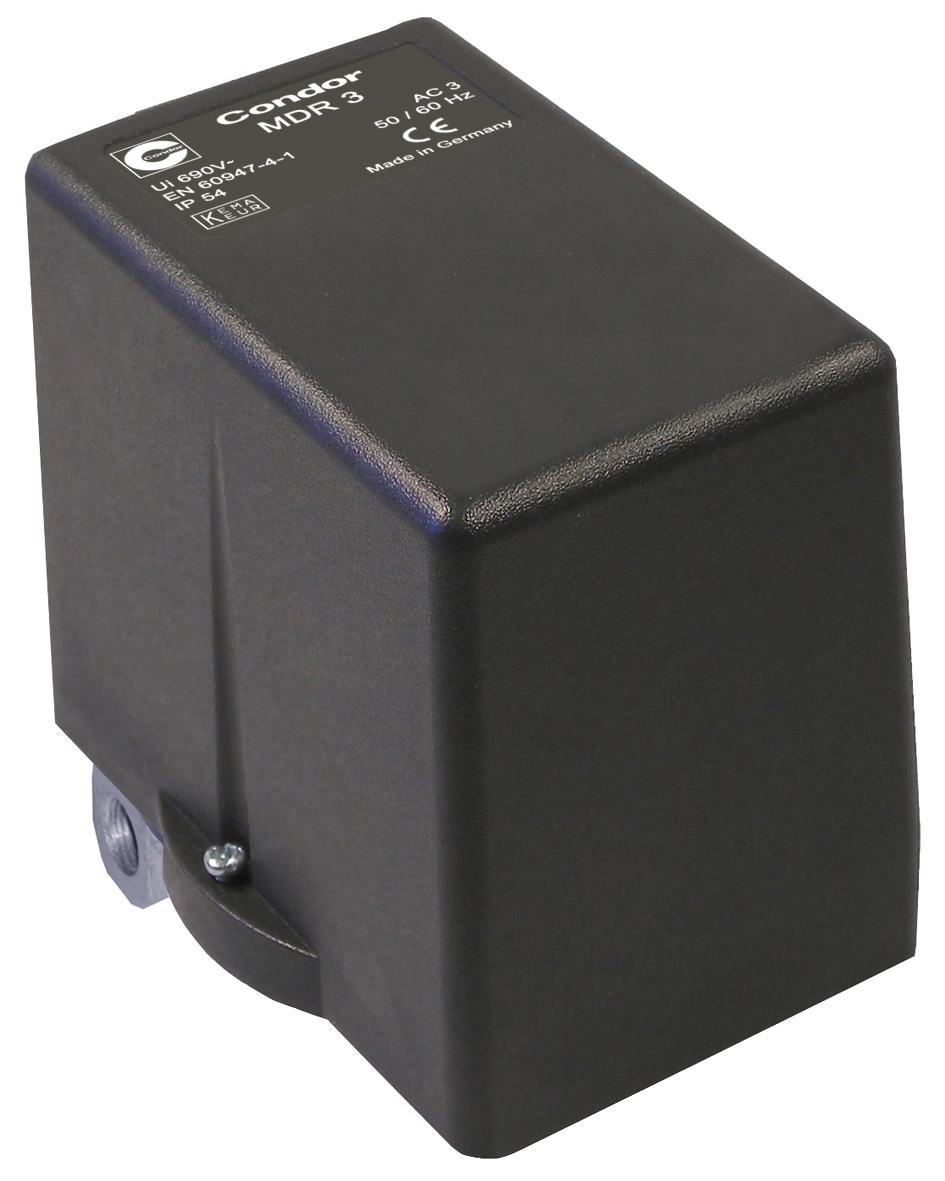

![[226963] Condor Pressure Switch MDR 3/11 4-11 bar F4 1/4" Alu](/web/image/product.template/217586/image_128/%5B226963%5D%20Condor%20Pressure%20Switch%20MDR%203-11%204-11%20bar%20F4%201-4%22%20Alu?unique=3c1a8ee)
|
Condor MDR 3/11 bar, Spannung Drehstrom 400 V |
111.10 € | |
![[226987] Condor Pressure Switch MDR 3/11 4-11 bar F4 3/8" Alu](/web/image/product.template/217791/image_128/%5B226987%5D%20Condor%20Pressure%20Switch%20MDR%203-11%204-11%20bar%20F4%203-8%22%20Alu?unique=65f8e2f)
|
Condor MDR 3/11 bar, Spannung Drehstrom 400 V |
111.10 € | |

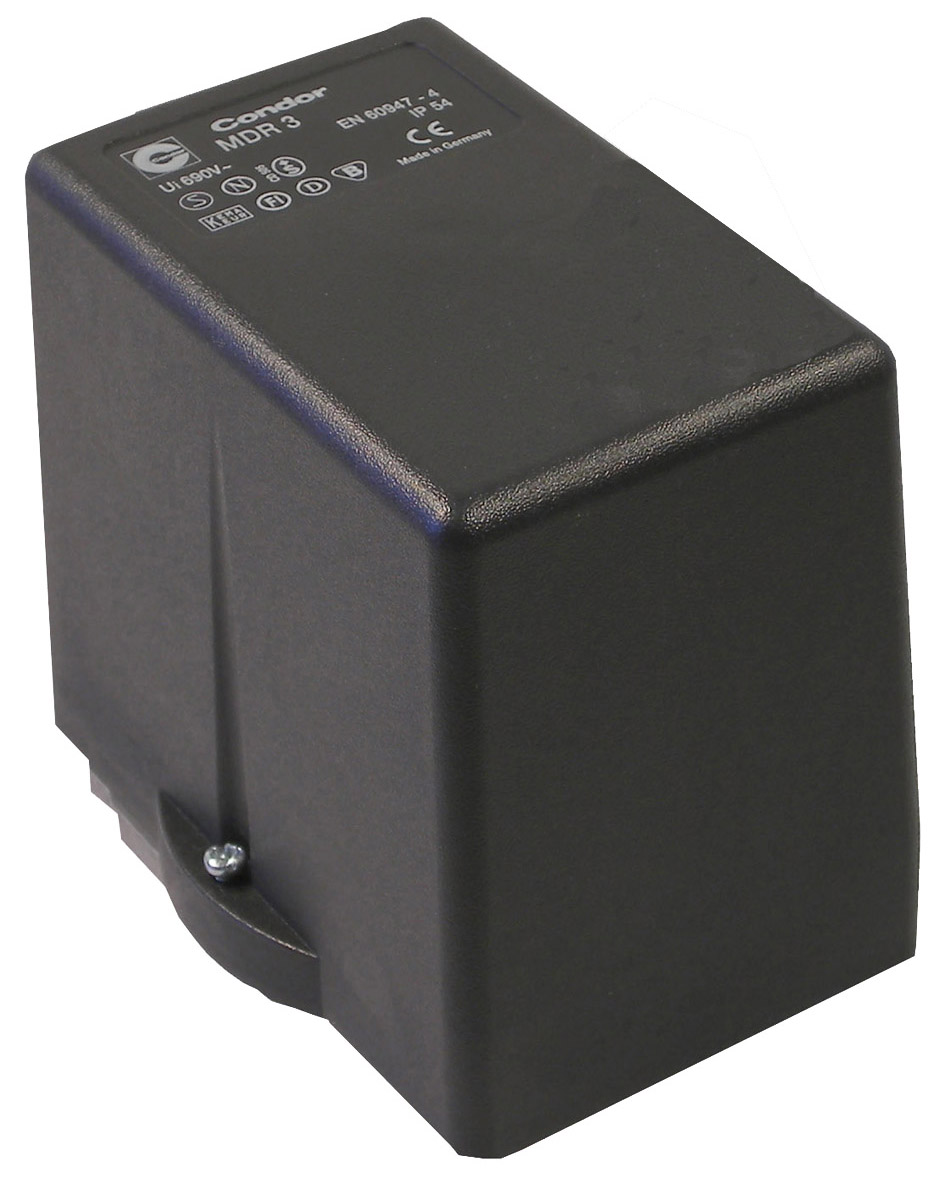

![[226956] Condor Pressure Switch MDR 3/11 4-11 bar G 1/4" Alu](/web/image/product.template/217790/image_128/%5B226956%5D%20Condor%20Pressure%20Switch%20MDR%203-11%204-11%20bar%20G%201-4%22%20Alu?unique=19e8e9a)
|
Condor MDR 3/11 bar, Spannung Drehstrom 400 V |
99.50 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[201045] Condor Unloader valve EV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95483/image_128/%5B201045%5D%20Condor%20Unloader%20valve%20EV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 3 für Condor MDR 3 Druckschalter |
17.60 € | |
![[201052] Condor Unloader valve EV 3i with screw connection for 1/4“ plastic or copper discharge](/web/image/product.template/95484/image_128/%5B201052%5D%20Condor%20Unloader%20valve%20EV%203i%20with%20screw%20connection%20for%201-4%E2%80%9C%20plastic%20or%20copper%20discharge?unique=1e5111e)
|
Entlastungsventil EV 3i für Condor MDR 3 Druckschalter |
17.60 € | |
![[201069] Condor Unloader valve EV 3S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95485/image_128/%5B201069%5D%20Condor%20Unloader%20valve%20EV%203S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 3S für Condor MDR 3 Druckschalter |
17.60 € | |
![[201076] Condor Plastic unloader valve (90°) EV 3W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95486/image_128/%5B201076%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%203W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV3W für Condor MDR 3 Druckschalter |
24.80 € | |
![[201083] Condor Plastic unloader valve (90°) EV 3Wi with screw connection for 1/4“ plastic or copper discharge tube](/web/image/product.template/95487/image_128/%5B201083%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%203Wi%20with%20screw%20connection%20for%201-4%E2%80%9C%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 3Wi für Condor MDR 3 Druckschalter |
24.80 € | |
![[201090] Condor Plastic unloader valve (90°) EV 3WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95488/image_128/%5B201090%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%203WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Condor Entlastungsventil EV 3WS für Condor Druckschalter MDR 3 |
24.80 € | |
![[201106] Condor Delayed unloader valve AEV 3 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95490/image_128/%5B201106%5D%20Condor%20Delayed%20unloader%20valve%20AEV%203%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 3 für Condor MDR 3 Druckschalter |
23.50 € | |
![[201120] Condor Delayed unloader valve AEV 3S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95491/image_128/%5B201120%5D%20Condor%20Delayed%20unloader%20valve%20AEV%203S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 3S für Condor MDR 3 Druckschalter |
23.50 € | |
![[201137] Condor Delayed unloader valve (90°) AEV 3W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95492/image_128/%5B201137%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%203W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 3W für Condor MDR 3 Druckschalter |
30.90 € | |
![[201144] Condor Delayed unloader valve (90°) AEV 3 Wi with screw connection for 1/4“ plastic or copper discharge tube](/web/image/product.template/95493/image_128/%5B201144%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%203%20Wi%20with%20screw%20connection%20for%201-4%E2%80%9C%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 3Wi für Condor MDR 3 Druckschalter |
30.90 € | |
![[201151] Condor Delayed unloader valve (90°) AEV 3 WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95494/image_128/%5B201151%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%203%20WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 3WS für Condor MDR 3 Druckschalter |
30.90 € | |
![[201229] Condor Unloader valve EV 3L with screw connection for 6 mm plastic or copper discharge](/web/image/product.template/95489/image_128/%5B201229%5D%20Condor%20Unloader%20valve%20EV%203L%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge?unique=1e5111e)
|
Entlastungsventil EV 3L für Condor MDR 3 Druckschalter |
34.20 € | |
![[201243] Condor Grommet WN for cable gland MDR 3, 11, 21](/web/image/product.template/95457/image_128/%5B201243%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%203%2C%2011%2C%2021?unique=1e5111e)
|
Condor Würgenippel für Condor Kabelverschraubungen für Condor MDR 11, MDR 21 und MDR 3 Druckschalter |
4.30 € | |
![[201250] Condor Conduits PG 11 G for mounting cable glands (inner thread) PG 11 G](/web/image/product.template/95496/image_128/%5B201250%5D%20Condor%20Conduits%20PG%2011%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29%20PG%2011%20G?unique=1e5111e)
|
Gewindestutzen PG 11 G zur Montage von Kabelverschraubungen für Condor MDR 3 Druckschalter |
5.70 € | |
![[201267] Condor Cable gland PG 11 V complete](/web/image/product.template/95497/image_128/%5B201267%5D%20Condor%20Cable%20gland%20PG%2011%20V%20complete?unique=1e5111e)
|
Kabelverschraubung PG 11 V für Condor MDR 3 Druckschalter |
6.80 € | |
![[201274] Condor Cable gland PG 11 Z with strain relief](/web/image/product.template/95498/image_128/%5B201274%5D%20Condor%20Cable%20gland%20PG%2011%20Z%20with%20strain%20relief?unique=1e5111e)
|
Kabelverschraubung PG 11 Z für Condor MDR 3 Druckschalter |
7.20 € | |
![[201281] Condor Cable gland PG 11 ZK with strain relief and cable support PG 11 ZK](/web/image/product.template/95499/image_128/%5B201281%5D%20Condor%20Cable%20gland%20PG%2011%20ZK%20with%20strain%20relief%20and%20cable%20support%20PG%2011%20ZK?unique=1e5111e)
|
Kabelverschraubung PG 11 ZK für Condor MDR 3 Druckschalter |
8.00 € | |
![[201298] Condor Conduits PG 13,5 G for mounting cable glands (inner thread)](/web/image/product.template/95500/image_128/%5B201298%5D%20Condor%20Conduits%20PG%2013%2C5%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=1e5111e)
|
Gewindestutzen PG 13,5 G für Condor Kabelverschraubungen für Condor MDR 3 Druckschalter |
5.80 € | |
![[201304] Condor Cable gland PG 13,5 V complete](/web/image/product.template/95501/image_128/%5B201304%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20V%20complete?unique=1e5111e)
|
Kabelverschraubung PG 13,5 V für Condor MDR 3 Druckschalter |
7.00 € | |
![[201311] Condor Cable gland PG 13,5 Z with strain relief](/web/image/product.template/95502/image_128/%5B201311%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20Z%20with%20strain%20relief?unique=1e5111e)
|
Kabelverschraubung PG 13,5 Z für Condor MDR 3 Druckschalter |
7.50 € | |
![[201328] Condor Cable gland PG 13,5 ZK with strain relief and cable support](/web/image/product.template/95503/image_128/%5B201328%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20ZK%20with%20strain%20relief%20and%20cable%20support?unique=1e5111e)
|
Kabelverschraubung PG 13,5 ZK für Condor MDR 3 Druckschalter |
8.10 € | |
![[201335] Condor Conduits PG 16 G for mounting cable glands (inner thread) PG 16 G](/web/image/product.template/95504/image_128/%5B201335%5D%20Condor%20Conduits%20PG%2016%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29%20PG%2016%20G?unique=1e5111e)
|
Gewindestutzen PG 16 G für Condor Kabelverschraubungen für Condor MDR 3 Druckschalter |
5.80 € | |
![[201342] Condor Cable gland PG 16 V complete](/web/image/product.template/95505/image_128/%5B201342%5D%20Condor%20Cable%20gland%20PG%2016%20V%20complete?unique=1e5111e)
|
Kabelverschraubung PG 16 V für Condor MDR 3 Druckschalter |
8.10 € | |
![[201359] Condor Cable gland PG 16 Z with strain relief](/web/image/product.template/95506/image_128/%5B201359%5D%20Condor%20Cable%20gland%20PG%2016%20Z%20with%20strain%20relief?unique=1e5111e)
|
Kabelverschraubung PG 16 Z für Condor MDR 3 Druckschalter |
9.50 € | |
![[201366] Condor Cable gland PG 16 ZK with strain relief and cable support PG 16 ZK](/web/image/product.template/95507/image_128/%5B201366%5D%20Condor%20Cable%20gland%20PG%2016%20ZK%20with%20strain%20relief%20and%20cable%20support%20PG%2016%20ZK?unique=1e5111e)
|
Kabelverschraubungen PG 16 ZK für Condor MDR 3 Druckschalter |
10.20 € | |
![[201373] Condor Cable gland PG 9 Z with strain relief](/web/image/product.template/95495/image_128/%5B201373%5D%20Condor%20Cable%20gland%20PG%209%20Z%20with%20strain%20relief?unique=1e5111e)
|
Kabelverschraubung PG 9 Z für Condor MDR 3 Druckschalter |
7.20 € | |
![[201403] Condor Thermal overload relay, 3 phase, R3/1,0, 0.63 - 1.00 A](/web/image/product.template/217766/image_128/%5B201403%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20R3-1%2C0%2C%200.63%20-%201.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 1,0 für Condor MDR 3 Druckschalter |
54.90 € | |
![[201410] Condor Thermal overload relay, 3 phase, R3/1,6, 1.00 - 1.60 A](/web/image/product.template/217767/image_128/%5B201410%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20R3-1%2C6%2C%201.00%20-%201.60%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 1,6 für Condor MDR 3 Druckschalter |
54.90 € | |
![[201427] Condor Thermal overload relay, 3 phase, R3/2,5, 1.60 - 2.50 A](/web/image/product.template/217938/image_128/%5B201427%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20R3-2%2C5%2C%201.60%20-%202.50%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 2,5 für Condor MDR 3 Druckschalter |
54.90 € | |
![[201434] Condor Thermal overload relay, 3 phase, R3/4,0, 2.50 - 4.00 A](/web/image/product.template/217939/image_128/%5B201434%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20R3-4%2C0%2C%202.50%20-%204.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 4,0 für Condor MDR 3 Druckschalter |
54.90 € | |
![[201441] Condor Thermal overload relay, 3 phase, R3/6,3, 4.00 - 6.30 A](/web/image/product.template/217940/image_128/%5B201441%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20R3-6%2C3%2C%204.00%20-%206.30%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 6,3 für Condor MDR 3 Druckschalter |
54.90 € | |
![[201458] Condor Thermal overload relay, 3 phase SK R3/10,0, 6.30 - 10.00 A](/web/image/product.template/217941/image_128/%5B201458%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%20SK%20R3-10%2C0%2C%206.30%20-%2010.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 10,0 für Condor MDR 3 Druckschalter |
67.60 € | |
![[201465] Condor Thermal overload relay, 3 phase, R3/16,0, 10.00 - 16.00 A](/web/image/product.template/217942/image_128/%5B201465%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20R3-16%2C0%2C%2010.00%20-%2016.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 16,0 für Condor MDR 3 Druckschalter |
67.60 € | |
![[201472] Condor Thermal overload relay, 3 phase, SK R3/20,0, 16.00 - 20.00 A](/web/image/product.template/151648/image_128/%5B201472%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20SK%20R3-20%2C0%2C%2016.00%20-%2020.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 20,0 für Condor MDR 3 Druckschalter |
67.60 € | |
![[201489] Condor Thermal overload relay, 3 phase, SK R3/24,0, 20.00 - 24.00 A](/web/image/product.template/217943/image_128/%5B201489%5D%20Condor%20Thermal%20overload%20relay%2C%203%20phase%2C%20SK%20R3-24%2C0%2C%2020.00%20-%2024.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 24,0 für Condor MDR 3 Druckschalter |
67.60 € | |
![[201496] Condor Thermal 2-pole overload relay SK R3/30/2 22.00 - 30.00 A](/web/image/product.template/217944/image_128/%5B201496%5D%20Condor%20Thermal%202-pole%20overload%20relay%20SK%20R3-30-2%2022.00%20-%2030.00%20A?unique=1e5111e)
|
Überstromrelais / Motorschutzrelais SK R3/ 30/2 für Condor MDR 3 Druckschalter |
67.60 € | |
![[237297] Condor Hour meter and cover for MDR 3, 230 V / 50 Hz](/web/image/product.template/217764/image_128/%5B237297%5D%20Condor%20Hour%20meter%20and%20cover%20for%20MDR%203%2C%20230%20V%20-%2050%20Hz?unique=1e5111e)
|
Nachrüstsatz Betriebsstundenzähler H3-B 230, mit Haube für Condor Condor Druckschalter MDR 3, 230 V / 50 Hz |
81.40 € | |
![[237303] Condor Hour meter and cover H3-B 400 for MDR 3, 400 V / 50 Hz](/web/image/product.template/151660/image_128/%5B237303%5D%20Condor%20Hour%20meter%20and%20cover%20H3-B%20400%20for%20MDR%203%2C%20400%20V%20-%2050%20Hz?unique=1e5111e)
|
Nachrüstsatz Betriebsstundenzähler H3-B 400, mit Haube für Condor Condor Druckschalter MDR 3, 400 V / 50 Hz |
85.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[201380] Condor Arc chamber without On/Off lock mechanism (part of standard MDR 3...)](/web/image/product.template/151646/image_128/%5B201380%5D%20Condor%20Arc%20chamber%20without%20On-Off%20lock%20mechanism%20%28part%20of%20standard%20MDR%203--.%29?unique=1e5111e)
|
Schaltkammer SK3 ohne Schaltschloss für Condor MDR 3 Druckschalter |
18.40 € | |
![[229490] Condor Cover H3 without rotary knob (Neutral version, without marking) for MDR 3](/web/image/product.template/95508/image_128/%5B229490%5D%20Condor%20Cover%20H3%20without%20rotary%20knob%20%28Neutral%20version%2C%20without%20marking%29%20for%20MDR%203?unique=1e5111e)
|
Haube H3 für Condor MDR 3 Druckschalter |
12.30 € | |
