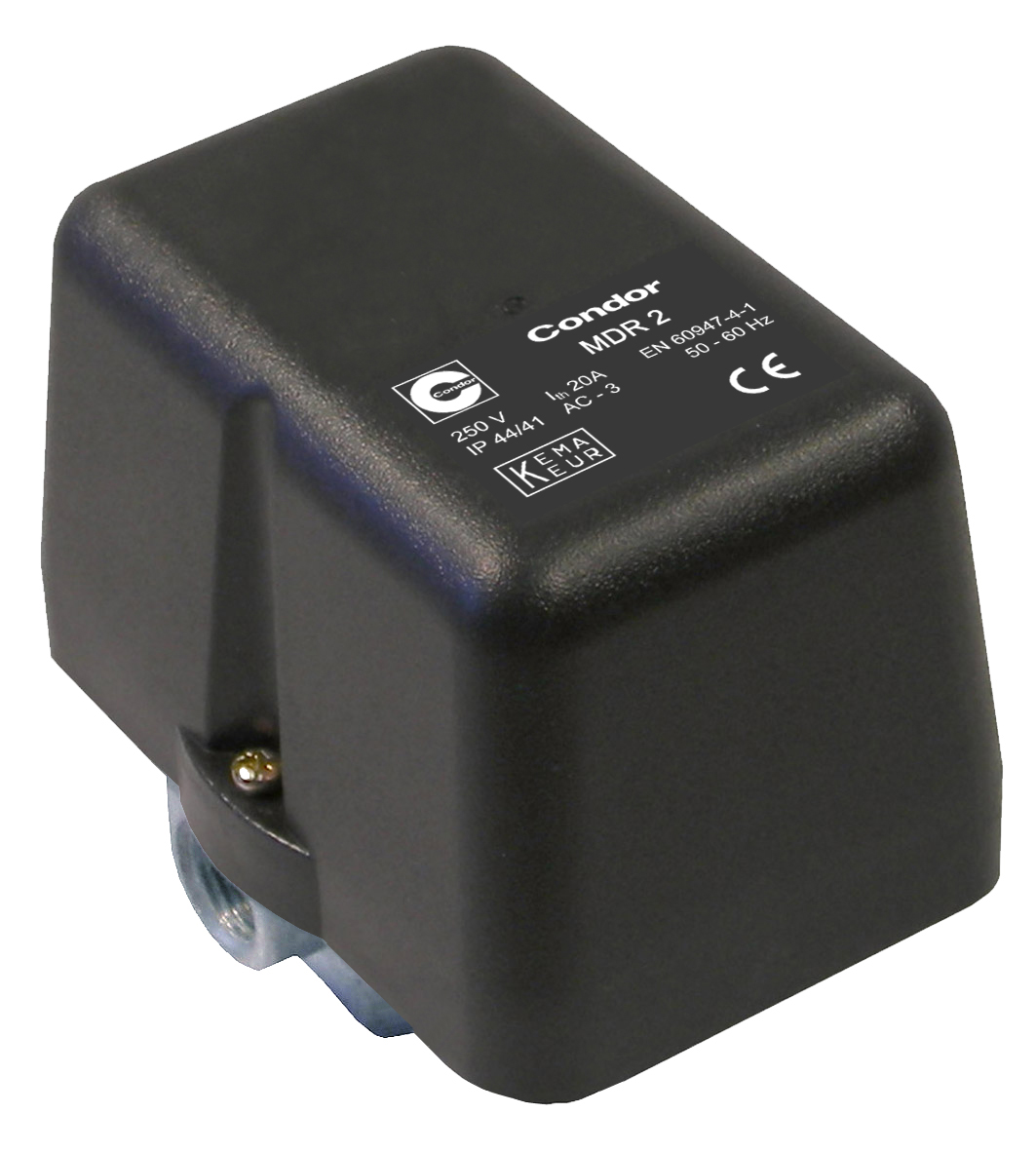

Condor Pressure Switch MDR 2/11 4-12 bar F4 1/4" Alu
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V
Einsatz: Druckluft: Druckschalter Kompressor
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 2/11 bar 219408
Wechselstromausführung
Schaltvermögen 2,2 kW
Druckbereich 4,00 - 12,00 bar
2-polig (Öffner)
nach EN 60947
Druckschaltertyp: GEA BAAA 070A090 XAA XXX siehe weitere Informationen: siehe Technische Daten (PDF 355 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | F4 1/4" Alu |
| Motor switching capacity (KW) | 2,2 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Wechselstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 250 V |
| Contact function | 2-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 320 |
| Pressure range (bar) | 4-12 |
| Model range - Pressure switch | MDR 2 |
| Ein / Aus Schaltknopf | Nein |
Product variants
| Product | Price | ||
|---|---|---|---|
![[226895] Condor Pressure Switch MDR 2/11 4-12 bar F4 1/2" Alu](/web/image/product.template/217585/image_128/%5B226895%5D%20Condor%20Pressure%20Switch%20MDR%202-11%204-12%20bar%20F4%201-2%22%20Alu?unique=2d0ecfe)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
108.30 € | |
![[226888] Condor Pressure Switch MDR 2/11 4-12 bar F4 3/8" Alu](/web/image/product.template/217858/image_128/%5B226888%5D%20Condor%20Pressure%20Switch%20MDR%202-11%204-12%20bar%20F4%203-8%22%20Alu?unique=dac0a14)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
108.30 € | |

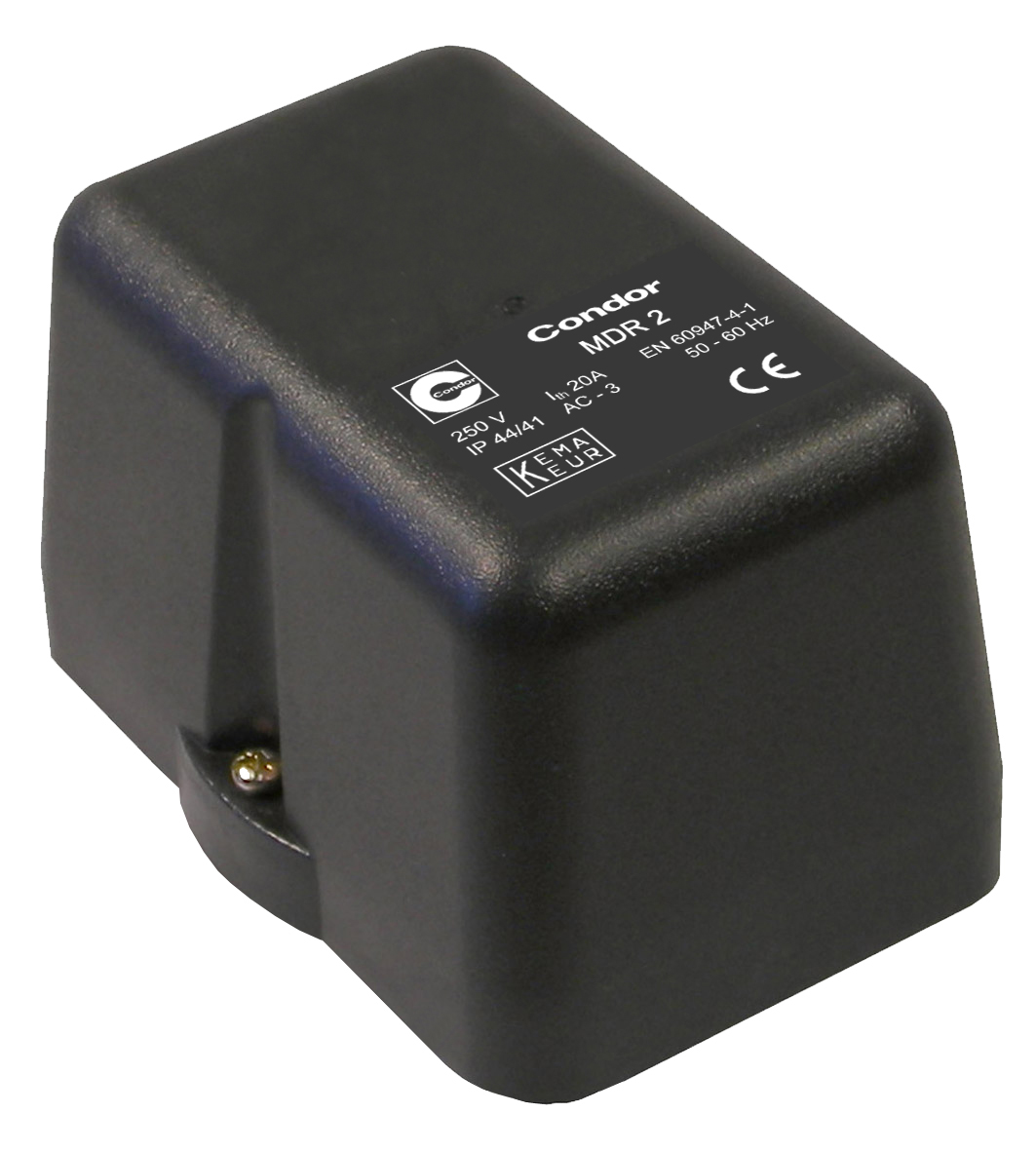

![[217404] Condor Pressure Switch MDR 2/11 4-12 bar G 1/4" Alu](/web/image/product.template/217579/image_128/%5B217404%5D%20Condor%20Pressure%20Switch%20MDR%202-11%204-12%20bar%20G%201-4%22%20Alu?unique=e5ac267)
|
