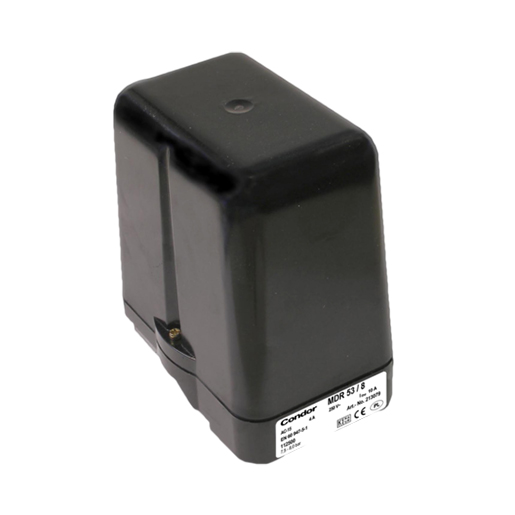

Condor Pressure Switch MDR 53/25 SO8 - 8 bar G 1/2“
Condor MDR 53/bis 8 bar
Druckschalter Kompressor / Druckschalter Pumpe
Anwendungen: Drucklufttechnik und Wassertechnik
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor control pressure switch MDR 53/up to 8 bar 213147
1 changeover contact - SPDT
Pressure range up to 8.00 bar
Large connection space
High switching accuracy
Pressure adjustment possible without tools
According to EN 60947
CSA approval optional
Switch-off pressure is preset, switch-on pressure is smallest pressure difference and overpressure-resistant up to 25 bar, SO type. A screw plug is included
Pressure switch type: OAA BAAA xxxA080 XAA XXX see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
Application areas:Compressed air technology
Water technology
| Protection class | IP 54 |
| Motor switching capacity (kW) | 4,0 kW |
| Max. media temperature (°C) | 80 |
| Current version | Wechselstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 250 V |
| Contact function | Wechsler |
| Rated frequency | 50 Hz / 60 Hz |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[230045] Condor Mounting bracket](/web/image/product.template/95986/image_128/%5B230045%5D%20Condor%20Mounting%20bracket?unique=9fb4297)
|
Condor Montagewinkel für Condor Druckschalter MDR 5 und MDR 53 |
14.16 € | |
![[269496] Condor Grommet WN M20 for cable gland MDR 5](/web/image/product.template/95980/image_128/%5B269496%5D%20Condor%20Grommet%20WN%20M20%20for%20cable%20gland%20MDR%205?unique=9fb4297)
|
Condor Würgenippel für Condor Kabelverschraubungen für Condor Druckschalter MDR 5 und MDR 53 |
5.24 € | |
![[269502] Condor Screw plug M20](/web/image/product.template/95981/image_128/%5B269502%5D%20Condor%20Screw%20plug%20M20?unique=4638de6)
|
Condor Verschlussschraube M 20 für Condor Druckschalter MDR 5 und MDR 53 |
2.86 € | |
![[269519] Condor Cable gland M20 L with strain relief, clamping range 10-14 mm](/web/image/product.template/95984/image_128/%5B269519%5D%20Condor%20Cable%20gland%20M20%20L%20with%20strain%20relief%2C%20clamping%20range%2010-14%20mm?unique=9fb4297)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
12.50 € | |
![[269526] Condor Cable gland M20 LK with strain relief and cable support, clamping range 10-14 mm](/web/image/product.template/95985/image_128/%5B269526%5D%20Condor%20Cable%20gland%20M20%20LK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%2010-14%20mm?unique=9fb4297)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
12.85 € | |
![[269533] Condor Cable gland M20 Z with strain relief, clamping range 6-12 mm](/web/image/product.template/95982/image_128/%5B269533%5D%20Condor%20Cable%20gland%20M20%20Z%20with%20strain%20relief%2C%20clamping%20range%206-12%20mm?unique=9fb4297)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
12.50 € | |
![[269540] Condor Cable gland M20 ZK with strain relief and cable support, clamping range 6-12 mm](/web/image/product.template/95983/image_128/%5B269540%5D%20Condor%20Cable%20gland%20M20%20ZK%20with%20strain%20relief%20and%20cable%20support%2C%20clamping%20range%206-12%20mm?unique=4638de6)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 5 und MDR 53 |
12.85 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[230052] Condor Cover H5 without On/Off push buttons for MDR 5](/web/image/product.template/95987/image_128/%5B230052%5D%20Condor%20Cover%20H5%20without%20On-Off%20push%20buttons%20for%20MDR%205?unique=9fb4297)
|
Condor Haube für Condor Steuerdruckschalter MDR 5 und MDR 53 |
18.56 € | |
