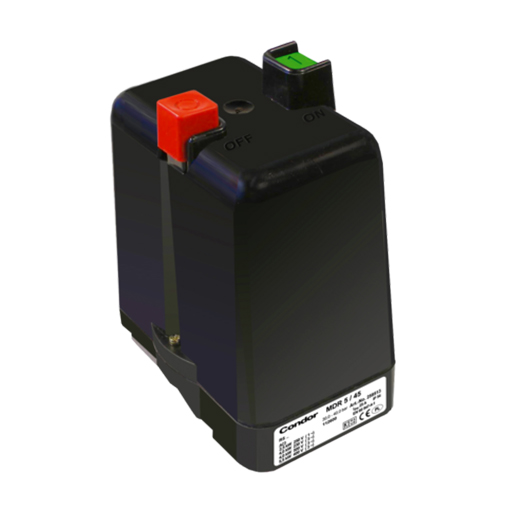

Condor Pressure Switch MDR 5/11-K 2-11 bar G 1/2" + G 1/4" Alu
Condor MDR 5/11 bar, Spannung Drehstrom 400 V
Druckluft / Wasser: Druckschalter Kompressor / Druckschalter Pumpe
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 5/11 bar EA 212966
Bitte beachten Sie, dass für die Inbetriebnahme ein Überstromrelais benötigt wird, siehe unter "Zubehör" ansonsten keine Funktionsfähigkeit der Ein-/Ausschaltautomatik!
Drehstromausführung
Schaltvermögen 5,5
Druckbereich 2,00 - 11,00 bar
3-polig (Öffner)
nach EN 60947
Technische Änderungen des Herstellers vorbehalten!
Druckschaltertyp: GOA AAAA 090A110 XXX XXX siehe weitere Informationen: siehe Technische Daten (PDF 404 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen, Hauben für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | G1/2" + G1/4" Alu |
| Protection class | IP 54 |
| Motor switching capacity (KW) | 5,5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Drehstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 400 V |
| Contact function | 3-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 900 |
| Pressure range (bar) | 2-11 |
| Model range - Pressure switch | MDR 5 |
| Ein / Aus Schaltknopf | Ja |
