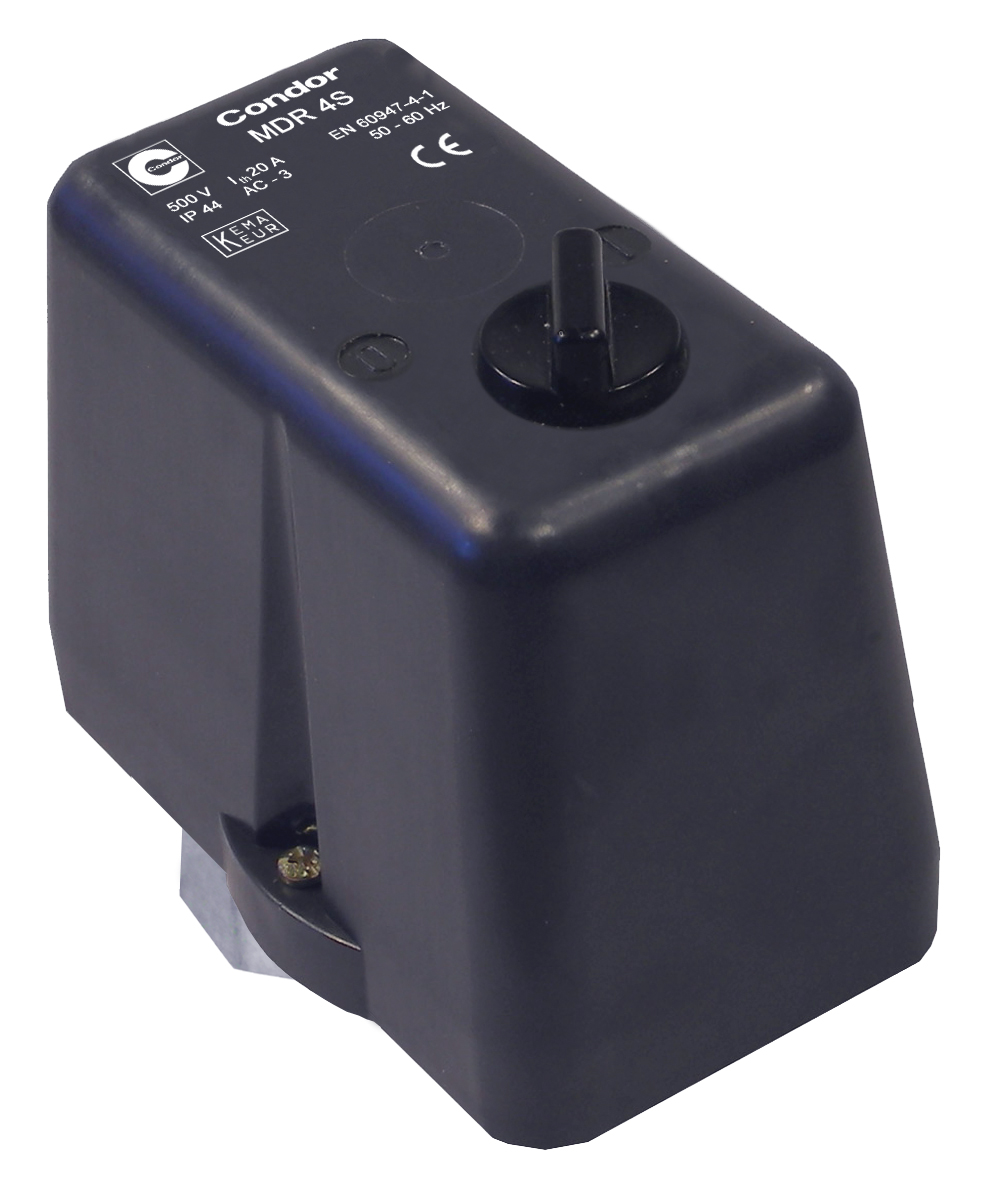

Condor Pressure Switch MDR 4 S/16 EA 6-16 bar G 1/2" + G 1/4" Alu
Condor MDR 4 S/16 bar, Spannung Drehstrom 400 V
Druckluft / Wasser: Druckschalter Kompressor / Druckschalter Pumpe
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor pressure switch MDR 4 S/16 bar EA 212669
Three-phase version
Switching capacity 5.5 kW
Pressure range 6.00 - 16.00 bar
3-pole (NC contact)
In accordance with EN 60947
Pressure switch type: HOA AFAA 135A160 XAA XXX see further information under Documents.
Required relief valves, cable glands for retrofitting see under "Accessories".
| Thread / connection | G 1/2" + G1/4" Alu |
| Protection class | IP 44 |
| Motor switching capacity (kW) | 5,5 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Drehstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 400 V |
| Contact function | 3-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 460 |
| Pressure range (bar) | 6-16 |
| Model range - Pressure switch | MDR 4 S |
| On / Off switch button | Ja |
Product variants
| Product | Price | ||
|---|---|---|---|
![[257967] Condor Pressure Switch MDR 4 S/16 EA 6-16 bar F4 1/2" Alu](/web/image/product.template/217613/image_128/%5B257967%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-16%20EA%206-16%20bar%20F4%201-2%22%20Alu?unique=5929e4e)
|
Condor MDR 4 S/16 bar, Spannung Drehstrom 400 V |
118.95 € | |

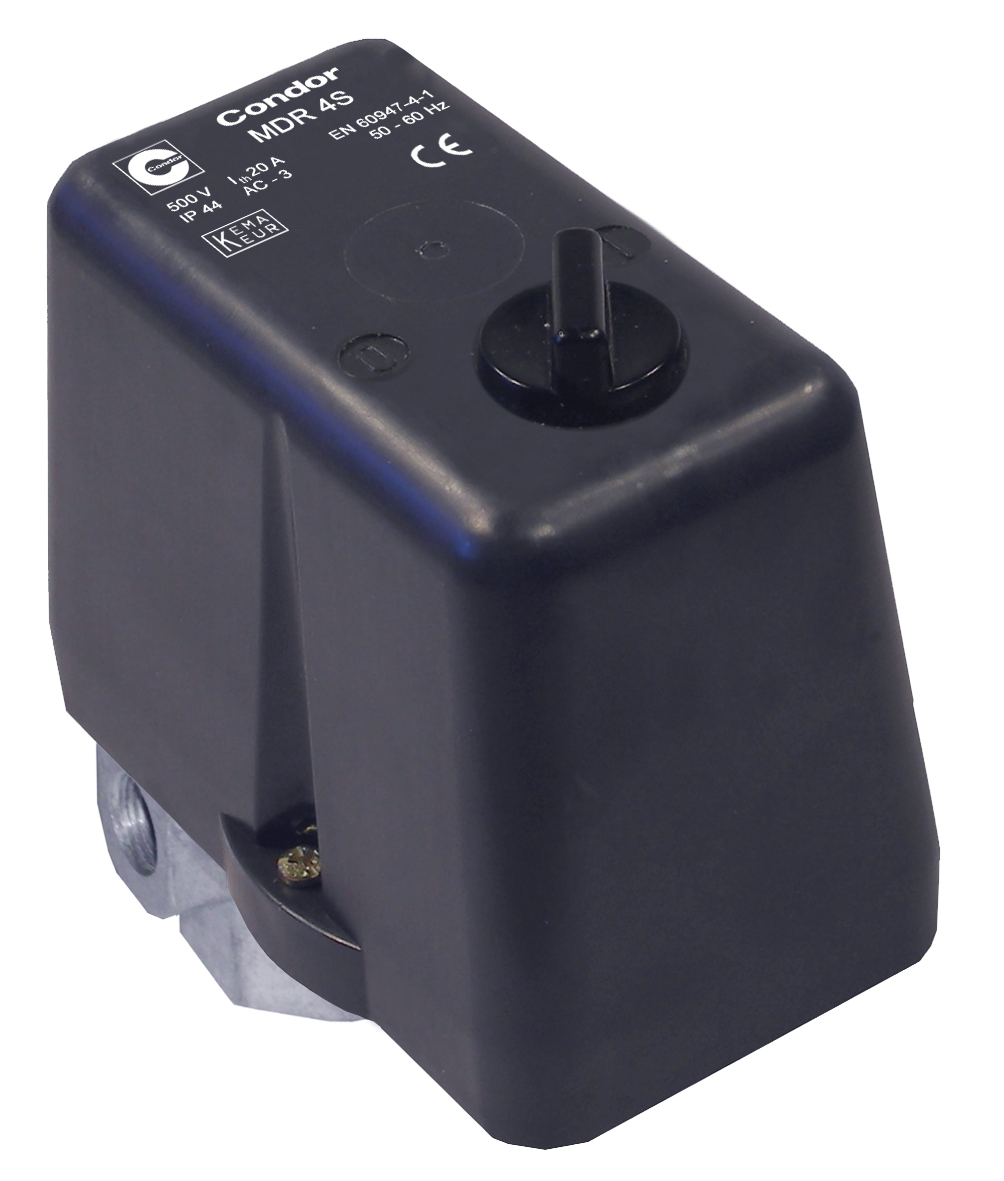

![[257950] Condor Pressure Switch MDR 4 S/16 EA 6-16 bar F4 1/4“ Alu](/web/image/product.template/218147/image_128/%5B257950%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-16%20EA%206-16%20bar%20F4%201-4%E2%80%9C%20Alu?unique=cb45811)
|
Condor MDR 4 S/16 bar, Spannung Drehstrom 400 V |
118.95 € | |
![[257974] Condor Pressure Switch MDR 4 S/16 EA 6-16 bar F4 3/8“ Alu](/web/image/product.template/218148/image_128/%5B257974%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-16%20EA%206-16%20bar%20F4%203-8%E2%80%9C%20Alu?unique=91e31b0)
|
Condor MDR 4 S/16 bar, Spannung Drehstrom 400 V |
118.95 € | |
![[212652] Condor Pressure Switch MDR 4 S/16 EA 6-16 bar G 1/2" Alu](/web/image/product.template/217559/image_128/%5B212652%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-16%20EA%206-16%20bar%20G%201-2%22%20Alu?unique=e713c30)
|
Condor MDR 4 S/16 bar, Spannung Drehstrom 400 V |
100.88 € | |
![[212645] Condor Pressure Switch MDR 4 S/16 EA 6-16 bar G 1/4" Alu](/web/image/product.template/217558/image_128/%5B212645%5D%20Condor%20Pressure%20Switch%20MDR%204%20S-16%20EA%206-16%20bar%20G%201-4%22%20Alu?unique=142b27d)
|
Condor MDR 4 S/16 bar, Spannung Drehstrom 400 V |
100.88 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200888] Condor Grommet WN for cable gland MDR 1, 2, 4 und 43](/web/image/product.template/95482/image_128/%5B200888%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%201%2C%202%2C%204%20und%2043?unique=4638de6)
|
Condor Würgenippel für Kabelverschraubungen für Druckschalter MDR 1, MDR 2, MDR 4 und MDR 43 |
5.24 € | |
![[200895] Condor Conduits PG 11 G for mounting cable glands (inner thread)](/web/image/product.template/95472/image_128/%5B200895%5D%20Condor%20Conduits%20PG%2011%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=4638de6)
|
Condor Gewindestutzen für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
6.90 € | |
![[200901] Condor Cable gland PG 11 V complete](/web/image/product.template/95473/image_128/%5B200901%5D%20Condor%20Cable%20gland%20PG%2011%20V%20complete?unique=9fb4297)
|
Condor Kabelverschraubung komplett für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
8.33 € | |
![[200918] Condor Cable gland PG 11 ZK with strain relief and cable support](/web/image/product.template/95475/image_128/%5B200918%5D%20Condor%20Cable%20gland%20PG%2011%20ZK%20with%20strain%20relief%20and%20cable%20support?unique=4638de6)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
9.76 € | |
![[200925] Condor Cable gland PG 11 Z with strain relief](/web/image/product.template/95474/image_128/%5B200925%5D%20Condor%20Cable%20gland%20PG%2011%20Z%20with%20strain%20relief?unique=9fb4297)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
8.81 € | |
![[200956] Condor Cable gland PG 13,5 Z with strain relief](/web/image/product.template/95478/image_128/%5B200956%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20Z%20with%20strain%20relief?unique=9fb4297)
|
Condor Kabelverschraubung für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
9.16 € | |
![[200963] Condor Conduits PG 13,5 G for mounting cable glands (inner thread)](/web/image/product.template/95476/image_128/%5B200963%5D%20Condor%20Conduits%20PG%2013%2C5%20G%20for%20mounting%20cable%20glands%20%28inner%20thread%29?unique=4638de6)
|
Condor Gewindestutzen für Condor Druckschalter MDR 2, MDR 4 und MDR 43 |
7.02 € | |
![[201601] Condor Unloader valve EV 4 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/217946/image_128/%5B201601%5D%20Condor%20Unloader%20valve%20EV%204%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=9fb4297)
|
Entlastungsventil EV 4 für Condor MDR 4 Druckschalter |
17.14 € | |
![[201625] Condor Unloader valve EV 4S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/151649/image_128/%5B201625%5D%20Condor%20Unloader%20valve%20EV%204S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
Entlastungsventil EV 4S für Condor MDR 4 Druckschalter |
17.14 € | |
![[201656] Condor Plastic unloader valve (90°) EV 4WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/151650/image_128/%5B201656%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%204WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=9fb4297)
|
Entlastungsventil EV 4WS für Condor MDR 4 Druckschalter |
24.18 € | |
![[201663] Condor Delayed unloader valve AEV 4 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/151651/image_128/%5B201663%5D%20Condor%20Delayed%20unloader%20valve%20AEV%204%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=359f299)
|
Anlauf-Entlastungsventil AEV 4 für Condor MDR 4 Druckschalter |
22.94 € | |
![[201687] Condor Delayed unloader valve (90°) AEV 4S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/151652/image_128/%5B201687%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=773360a)
|
Anlauf-Entlastungsventil AEV 4S für Condor MDR 4 Druckschalter |
22.94 € | |
![[201694] Condor Delayed unloader valve (90°) AEV 4-W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/217948/image_128/%5B201694%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204-W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=e46d50e)
|
Anlauf-Entlastungsventil AEV 4W für Condor MDR 4 Druckschalter |
30.18 € | |
![[255055] Condor Plastic unloader valve (90°) EV 4W with screw connection for 6 mm plastic or discharge copper tube](/web/image/product.template/151662/image_128/%5B255055%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%204W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20discharge%20copper%20tube?unique=e46d50e)
|
Entlastungsventil EV 4W für Condor MDR 4 Druckschalter |
30.23 € | |
![[255062] Condor Plastic unloader valve (90°) EV 2Wi with screw connection for 1/4" plastic or discharge copper tube](/web/image/product.template/217947/image_128/%5B255062%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202Wi%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20discharge%20copper%20tube?unique=e46d50e)
|
Entlastungsventil EV 4Wi für Condor MDR 4 Druckschalter |
30.23 € | |
![[255079] Condor Delayed unloader valve (90°) AEV 4-Wi with screw connection for 1/4" plastic or copper discharge tube](/web/image/product.template/151663/image_128/%5B255079%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204-Wi%20with%20screw%20connection%20for%201-4%22%20plastic%20or%20copper%20discharge%20tube?unique=4638de6)
|
Anlauf-Entlastungsventil AEV 4Wi für Condor MDR 4 Druckschalter |
30.18 € | |
![[255086] Condor Delayed unloader valve (90°) AEV 4-WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/217949/image_128/%5B255086%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%204-WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=e46d50e)
|
Anlauf-Entlastungsventil AEV 4WS für Condor MDR 4 Druckschalter |
30.18 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

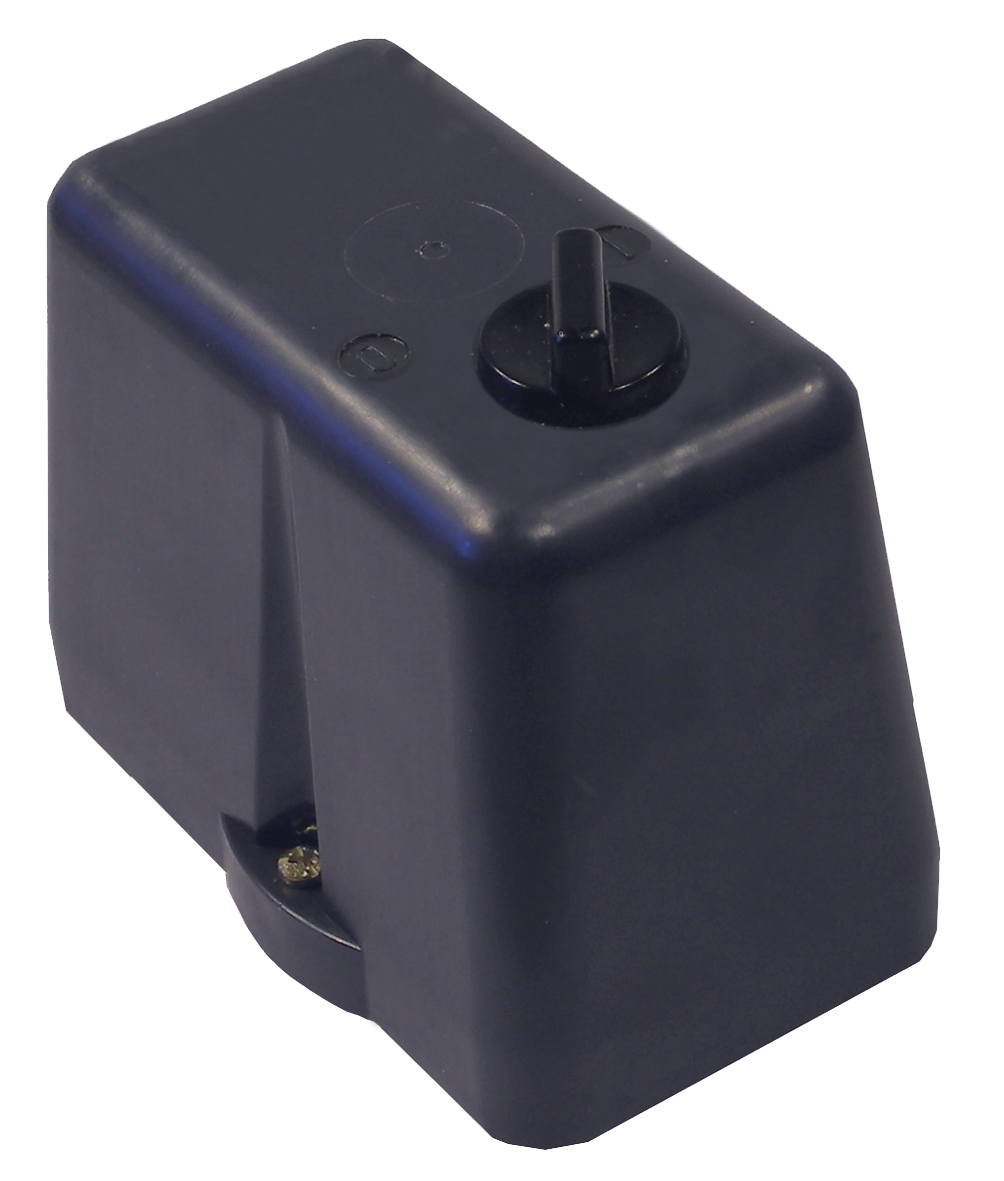

![[229476] Condor Cover H4 S-EA for MDR 4 S+EA with rotary knob for manual On/Off (Neutral version, without marking)](/web/image/product.template/151654/image_128/%5B229476%5D%20Condor%20Cover%20H4%20S-EA%20for%20MDR%204%20S%2BEA%20with%20rotary%20knob%20for%20manual%20On-Off%20%28Neutral%20version%2C%20without%20marking%29?unique=9fb4297)
|
