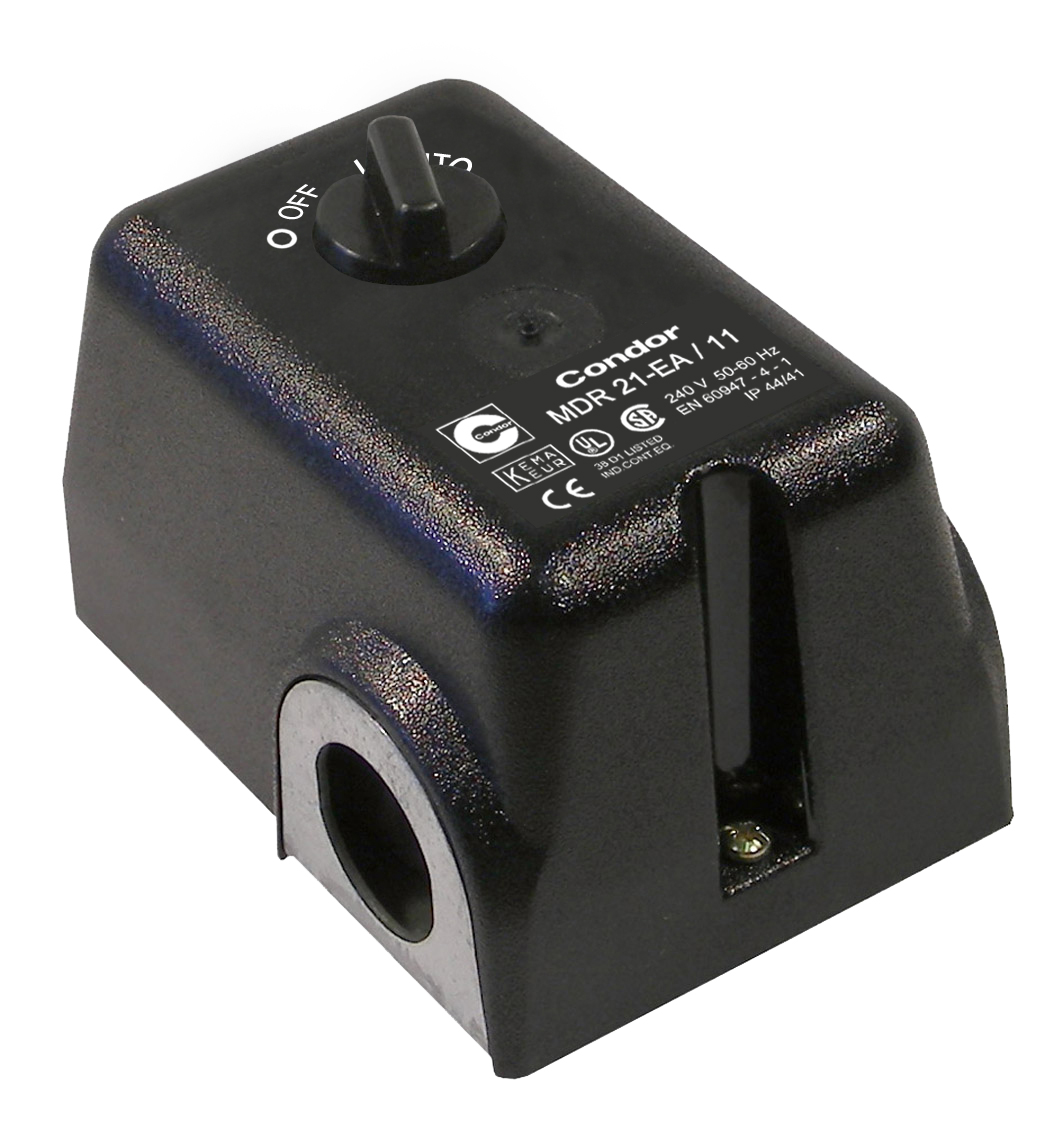

Condor Pressure Switch MDR 21 EA 4-12 bar G 1/4"
Condor MDR 21/11 bar, Spannung Wechselstrom 230 V
Einsatz: Druckluft: Druckschalter Kompressor
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 21/11 bar EA 212232
Wechselstromausführung
Schaltvermögen 4,0 kW / 4 HP
max. Ausschaltdruck 12 bar / 175 psi
2-polig (Öffner)
nach EN 60947
UL / CSA-Zulassung
Druckschaltertyp: GBA AACA 070A090 XAA XXX siehe weitere Informationen: siehe Technische Daten (PDF 377 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | G 1/4" Alu |
| Protection class | IP 44 |
| Motor switching capacity (KW) | 2,2 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Wechselstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 250 V |
| Contact function | 2-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 300 |
| Pressure range (bar) | 4-12 |
| Model range - Pressure switch | MDR 21 |
| Ein / Aus Schaltknopf | Ja |
Product variants
| Product | Price | ||
|---|---|---|---|
![[212249] Condor Pressure Switch MDR 21 EA 4-12 bar F4 1/4"](/web/image/product.template/226384/image_128/%5B212249%5D%20Condor%20Pressure%20Switch%20MDR%2021%20EA%204-12%20bar%20F4%201-4%22?unique=6911390)
|
Condor MDR 21/11 bar, Spannung Wechselstrom 230 V |
115.00 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200666] Condor Unloader valve EV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95462/image_128/%5B200666%5D%20Condor%20Unloader%20valve%20EV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2 für Condor MDR 2 und MDR 21 Druckschalter |
17.20 € | |

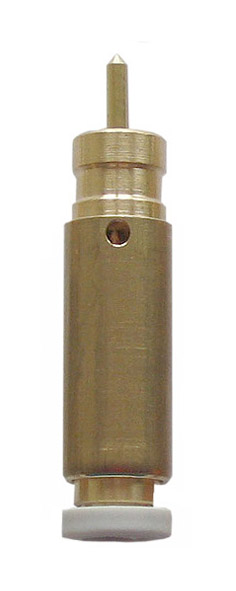

![[200680] Condor Unloader valve EV 2 S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95463/image_128/%5B200680%5D%20Condor%20Unloader%20valve%20EV%202%20S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2S für Condor MDR 2 und MDR 21 Druckschalter |
17.20 € | |

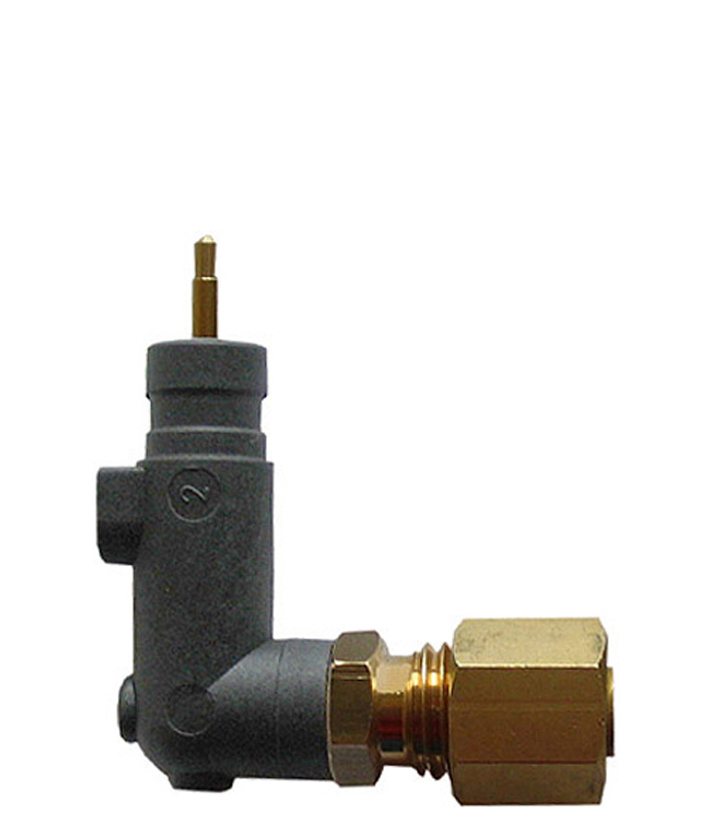

![[200697] Condor Plastic unloader valve (90°) EV 2W with screw connection for 6 mm plastic or discharge copper tube](/web/image/product.template/95464/image_128/%5B200697%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20discharge%20copper%20tube?unique=1e5111e)
|
Entlastungsventil EV 2W für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200703] Condor Plastic unloader valve (90°) EV 2Wi with screw connection for 1/4" mm plastic or discharge copper tube](/web/image/product.template/95465/image_128/%5B200703%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20discharge%20copper%20tube?unique=1e5111e)
|
Entlastungsventil EV 2Wi für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |

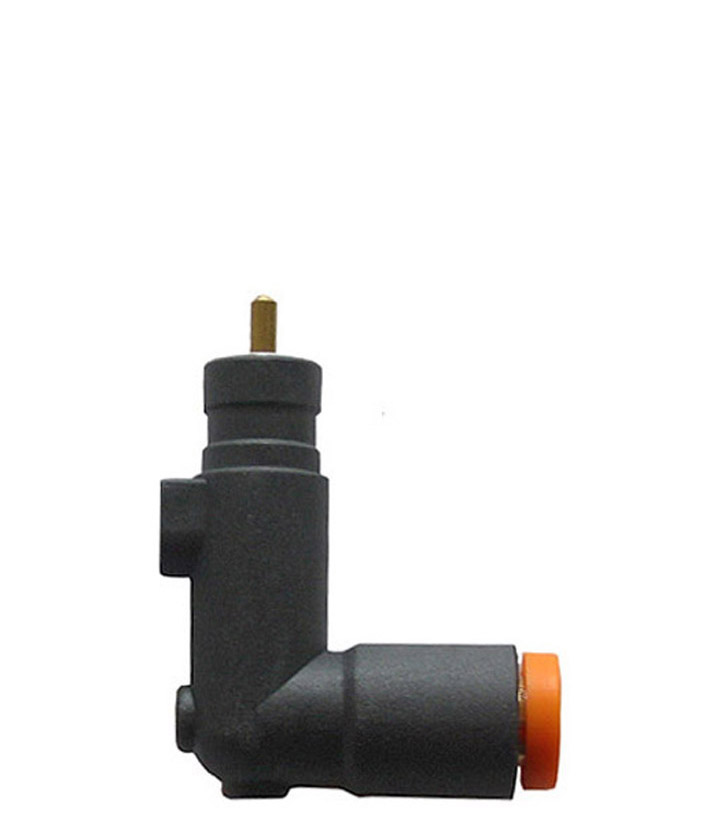

![[200710] Condor Plastic unloader valve (90°) EV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95466/image_128/%5B200710%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2WS für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |

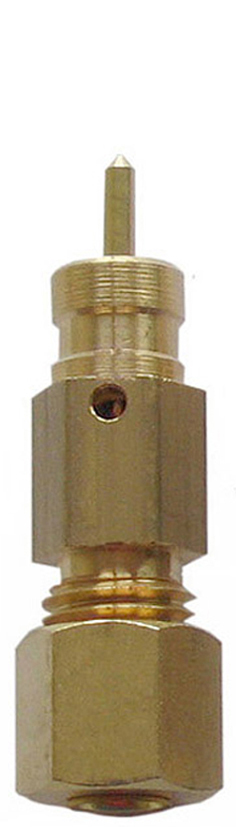

![[200727] Condor Delayed unloader valve AEV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95467/image_128/%5B200727%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2 für Condor MDR 2 und MDR 21 Druckschalter |
23.10 € | |

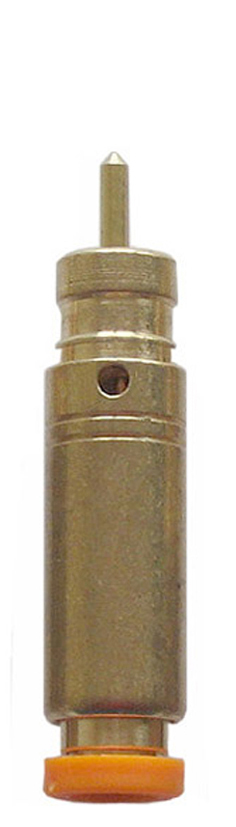

![[200741] Condor Delayed unloader valve AEV 2S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95468/image_128/%5B200741%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2S für Condor MDR 2 und MDR 21 Druckschalter |
23.10 € | |

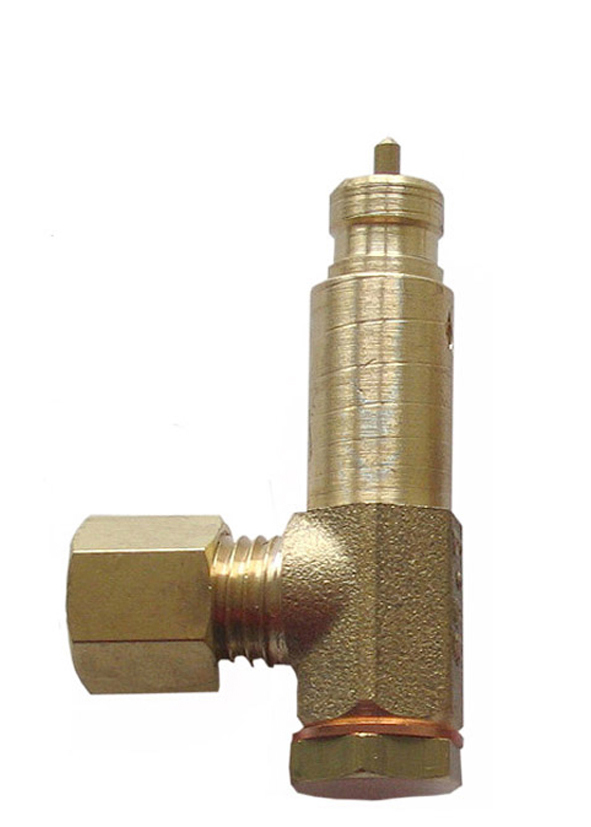

![[200758] Condor Delayed unloader valve (90°) AEV 2W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95469/image_128/%5B200758%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2W für Condor MDR 2 und MDR 21 Druckschalter |
30.20 € | |

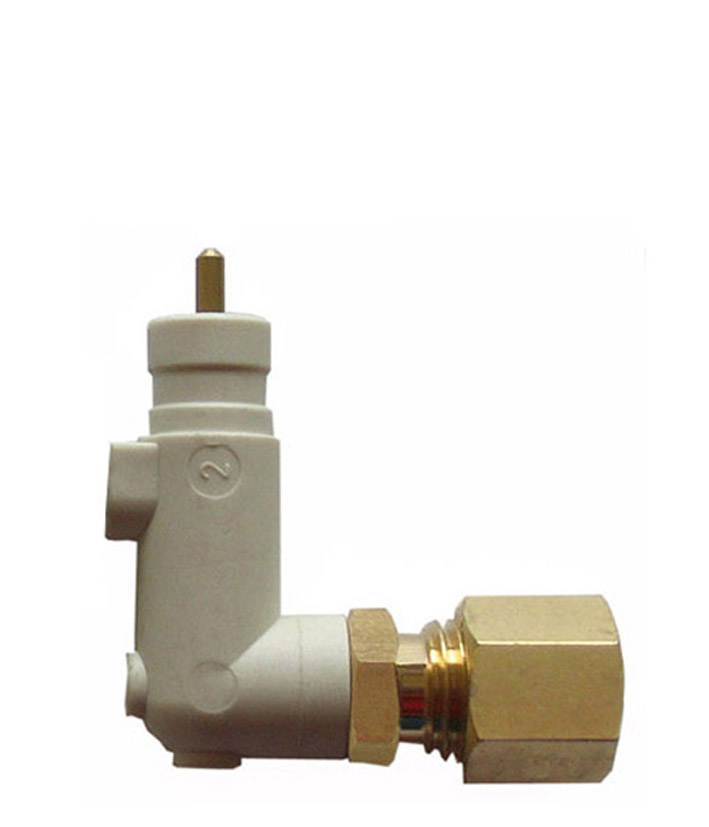

![[200765] Condor Delayed unloader valve (90°) AEV 2Wi with screw connection for 1/4" mm plastic or copper discharge tube](/web/image/product.template/95470/image_128/%5B200765%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2Wi für Condor Druckschalter MDR 2 und MDR 21 |
30.20 € | |

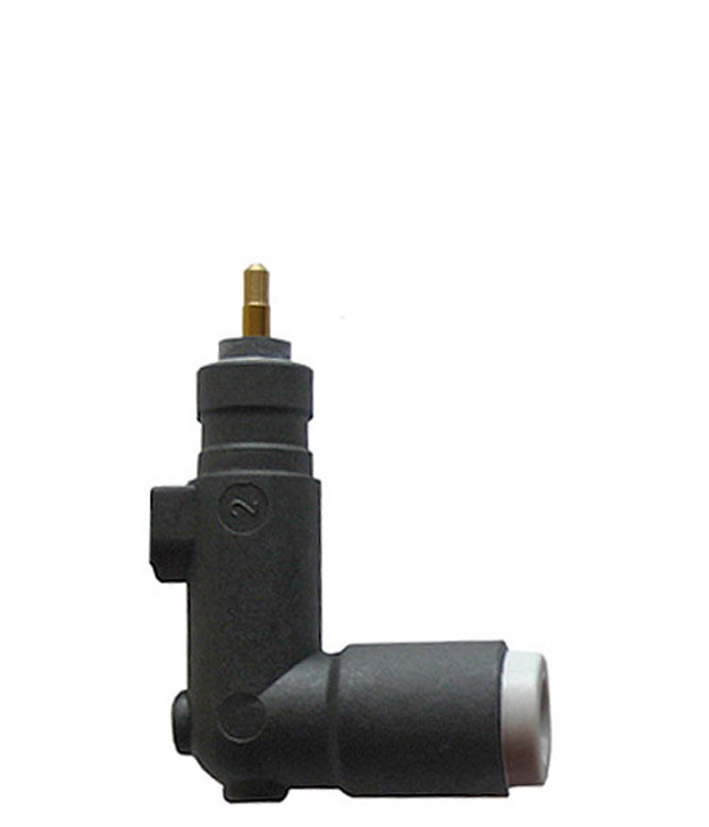

![[200772] Condor Delayed unloader valve (90°) AEV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95471/image_128/%5B200772%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2WS für Condor Druckschalter MDR 2 und MDR 21 |
30.20 € | |

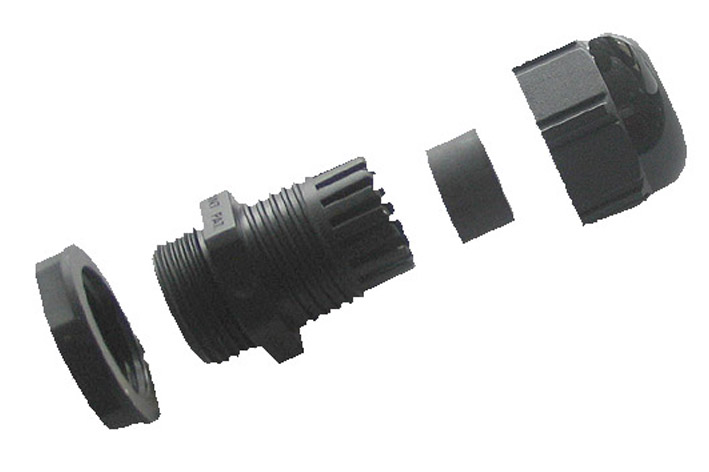

![[201021] Condor Cable gland PG 13,5 Z-21 with strain relief](/web/image/product.template/95458/image_128/%5B201021%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20Z-21%20with%20strain%20relief?unique=1e5111e)
|
Kabelverschraubung PG 13,5 Z-21 für Condor MDR 11 und MDR 21 Druckschalter |
7.50 € | |

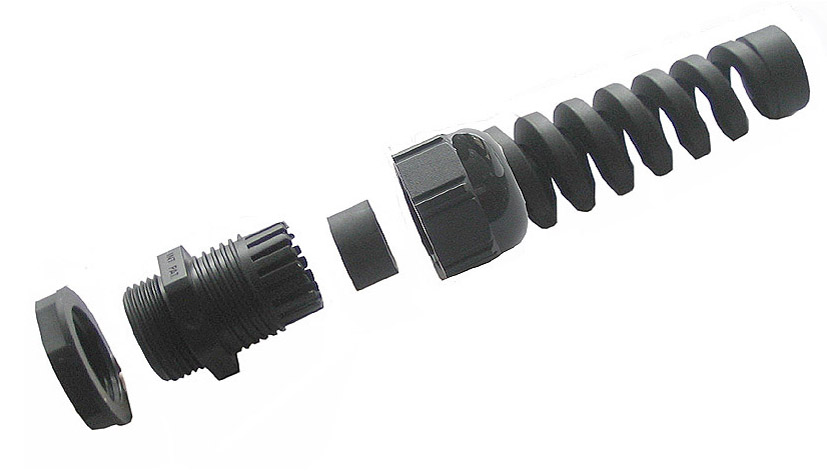

![[201038] Condor Cable gland PG 13,5 ZK-21 with strain relief and cable support](/web/image/product.template/95459/image_128/%5B201038%5D%20Condor%20Cable%20gland%20PG%2013%2C5%20ZK-21%20with%20strain%20relief%20and%20cable%20support?unique=1e5111e)
|
Kabelverschraubung PG 13,5 ZK-21 für Condor MDR 11 und MDR 21 Druckschalter |
8.10 € | |
![[201243] Condor Grommet WN for cable gland MDR 3, 11, 21](/web/image/product.template/95457/image_128/%5B201243%5D%20Condor%20Grommet%20WN%20for%20cable%20gland%20MDR%203%2C%2011%2C%2021?unique=1e5111e)
|
Condor Würgenippel für Condor Kabelverschraubungen für Condor MDR 11, MDR 21 und MDR 3 Druckschalter |
4.30 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[217503] Condor Cover H 21-EA with On/Off lever for manual On/Off (neutral version, without marking) for MDR 21](/web/image/product.template/95461/image_128/%5B217503%5D%20Condor%20Cover%20H%2021-EA%20with%20On-Off%20lever%20for%20manual%20On-Off%20%28neutral%20version%2C%20without%20marking%29%20for%20MDR%2021?unique=1e5111e)
|
Condor Haube H 21-EA mit Ein-/Ausschalter für Condor MDR 21 Druckschalter |
13.50 € | |
