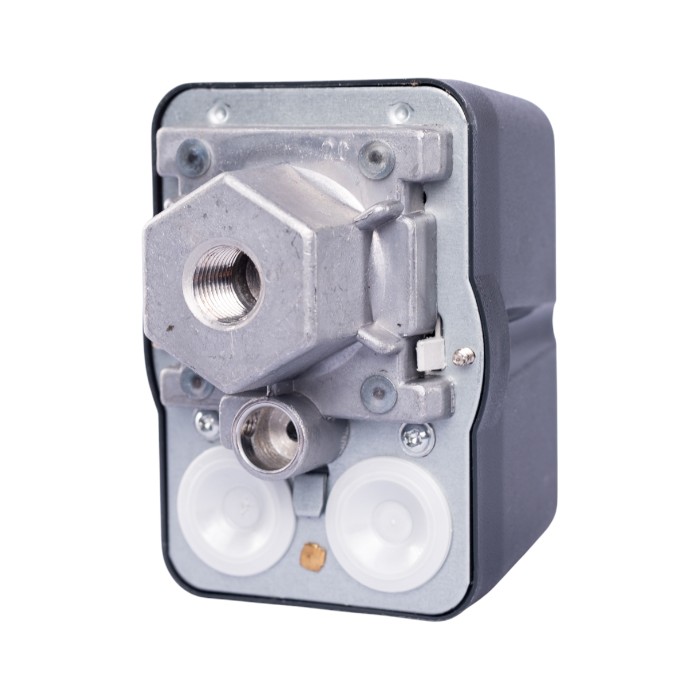

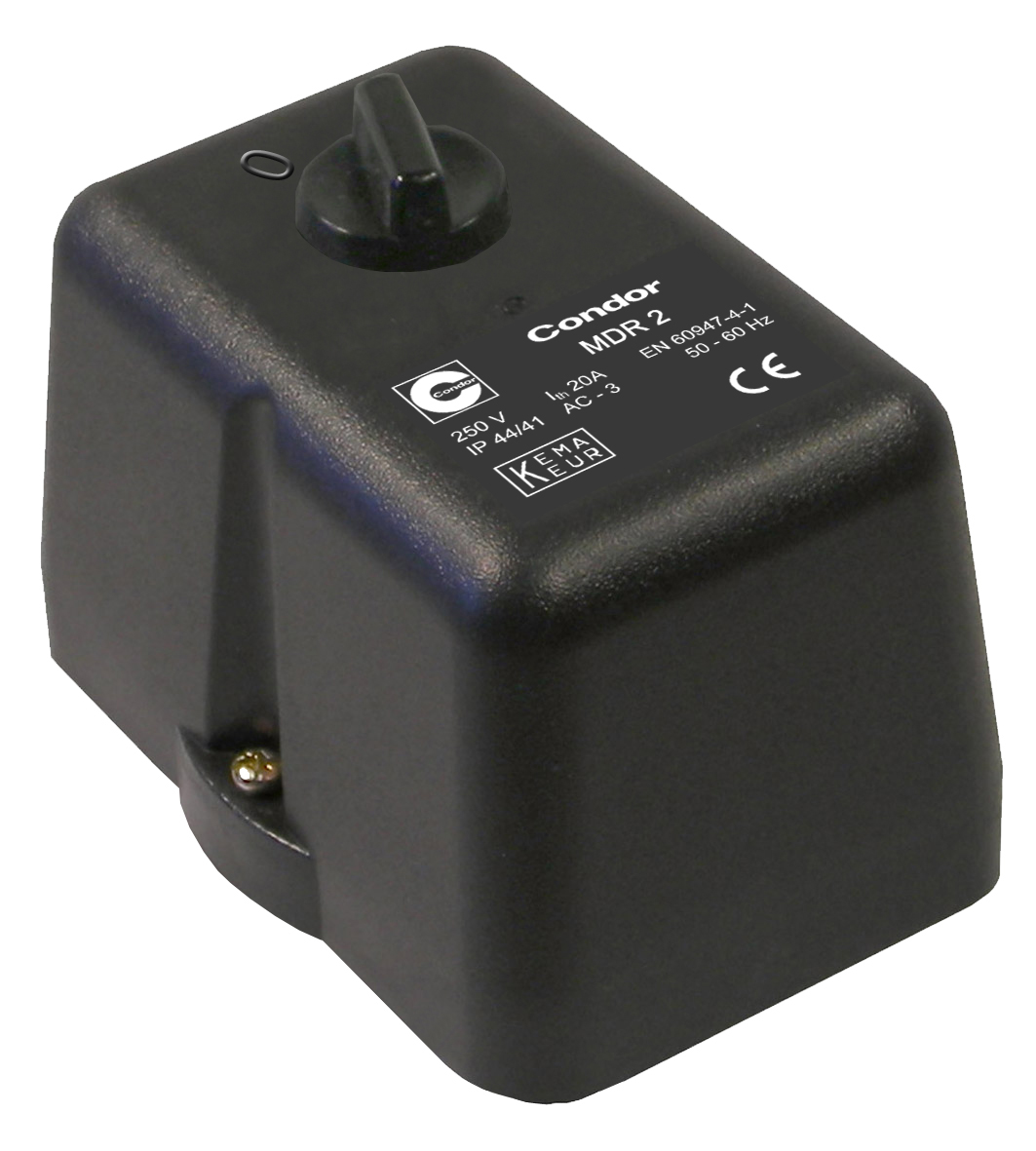

Condor Pressure Switch MDR 2/11 EA 4-12 bar G 1/4" Alu
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V
Einsatz: Druckluft: Druckschalter Kompressor
Condor-Werke
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology.
Condor Druckschalter MDR 2/11 bar EA 212171
Wechselstromausführung
Schaltvermögen 2,2 kW
Druckbereich 4,00 - 12,00 bar
2-polig (Öffner)
nach EN 60947
Druckschaltertyp: GBA AAAA 070A090 XAA XXX siehe weitere Informationen: siehe Technische Daten (PDF 355 KB)
Erforderliche Entlastungsventile, Kabelverschraubungen für die nachträgliche Montage siehe unter "Zubehör".
| Thread / connection | G 1/4" Alu |
| Motor switching capacity (KW) | 2,2 kW |
| Max. media temperature (°C) | 80°C |
| Current version | Wechselstrom |
| Type of construction | Elektro-mechanisch |
| Tension | ≤ 250 V |
| Contact function | 2-polig (Öffner) |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 300 |
| Pressure range (bar) | 4-12 |
| Model range - Pressure switch | MDR 2 |
| Ein / Aus Schaltknopf | Ja |
Product variants
| Product | Price | ||
|---|---|---|---|

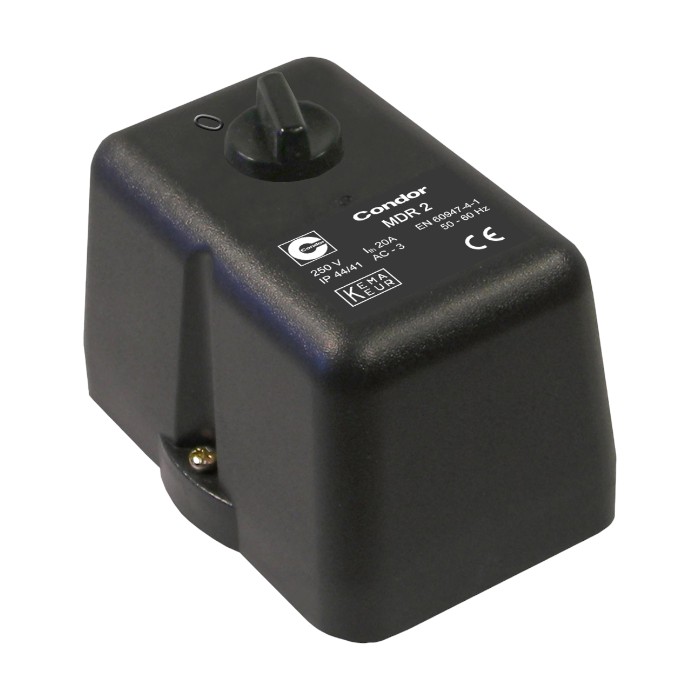

![[212201] Condor Pressure Switch MDR 2/11 EA 4-12 bar F4 1/2" Alu](/web/image/product.template/218137/image_128/%5B212201%5D%20Condor%20Pressure%20Switch%20MDR%202-11%20EA%204-12%20bar%20F4%201-2%22%20Alu?unique=01fd36d)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
112.00 € | |
![[212188] Condor Pressure Switch MDR 2/11 EA 4-12 bar F4 1/4" Alu](/web/image/product.template/217542/image_128/%5B212188%5D%20Condor%20Pressure%20Switch%20MDR%202-11%20EA%204-12%20bar%20F4%201-4%22%20Alu?unique=5e3cedb)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
112.00 € | |

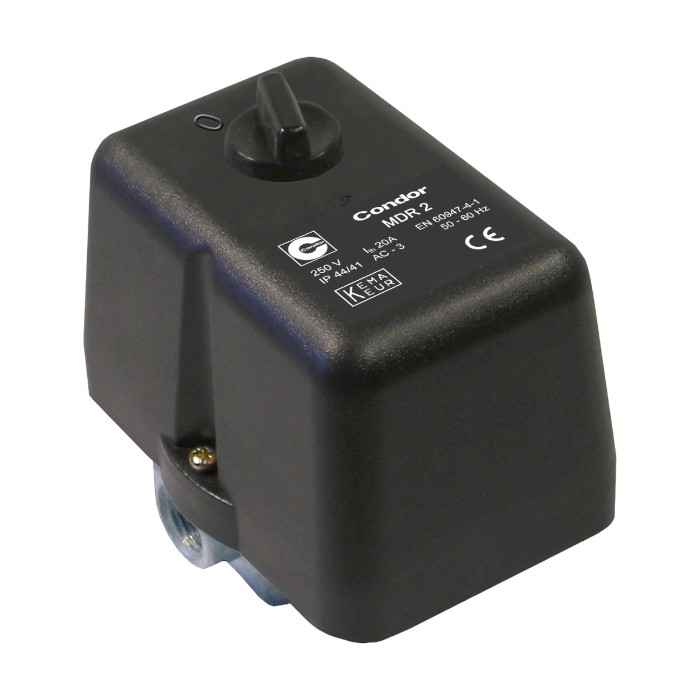

![[212195] Condor Pressure Switch MDR 2/11 EA 4-12 bar F4 3/8" Alu](/web/image/product.template/217543/image_128/%5B212195%5D%20Condor%20Pressure%20Switch%20MDR%202-11%20EA%204-12%20bar%20F4%203-8%22%20Alu?unique=f33ab5a)
|
Condor MDR 2/11 bar, Spannung Wechselstrom 230 V |
112.00 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[200666] Condor Unloader valve EV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95462/image_128/%5B200666%5D%20Condor%20Unloader%20valve%20EV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2 für Condor MDR 2 und MDR 21 Druckschalter |
17.20 € | |
![[200680] Condor Unloader valve EV 2 S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95463/image_128/%5B200680%5D%20Condor%20Unloader%20valve%20EV%202%20S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2S für Condor MDR 2 und MDR 21 Druckschalter |
17.20 € | |
![[200697] Condor Plastic unloader valve (90°) EV 2W with screw connection for 6 mm plastic or discharge copper tube](/web/image/product.template/95464/image_128/%5B200697%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20discharge%20copper%20tube?unique=1e5111e)
|
Entlastungsventil EV 2W für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200703] Condor Plastic unloader valve (90°) EV 2Wi with screw connection for 1/4" mm plastic or discharge copper tube](/web/image/product.template/95465/image_128/%5B200703%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202Wi%20with%20screw%20connection%20for%201-4%22%20mm%20plastic%20or%20discharge%20copper%20tube?unique=1e5111e)
|
Entlastungsventil EV 2Wi für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200710] Condor Plastic unloader valve (90°) EV 2WS with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95466/image_128/%5B200710%5D%20Condor%20Plastic%20unloader%20valve%20%2890%C2%B0%29%20EV%202WS%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Entlastungsventil EV 2WS für Condor MDR 2 und MDR 21 Druckschalter |
24.50 € | |
![[200727] Condor Delayed unloader valve AEV 2 with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95467/image_128/%5B200727%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2 für Condor MDR 2 und MDR 21 Druckschalter |
23.10 € | |
![[200741] Condor Delayed unloader valve AEV 2S with quick-connect for 6 mm plastic discharge tube](/web/image/product.template/95468/image_128/%5B200741%5D%20Condor%20Delayed%20unloader%20valve%20AEV%202S%20with%20quick-connect%20for%206%20mm%20plastic%20discharge%20tube?unique=1e5111e)
|
Anlauf-Entlastungsventil AEV 2S für Condor MDR 2 und MDR 21 Druckschalter |
23.10 € | |

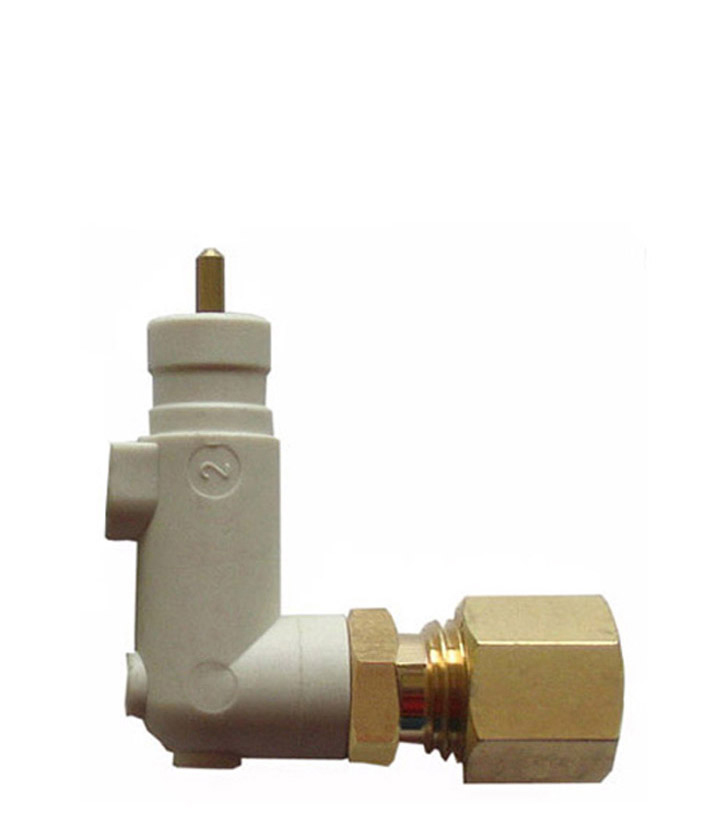

![[200758] Condor Delayed unloader valve (90°) AEV 2W with screw connection for 6 mm plastic or copper discharge tube](/web/image/product.template/95469/image_128/%5B200758%5D%20Condor%20Delayed%20unloader%20valve%20%2890%C2%B0%29%20AEV%202W%20with%20screw%20connection%20for%206%20mm%20plastic%20or%20copper%20discharge%20tube?unique=1e5111e)
|
