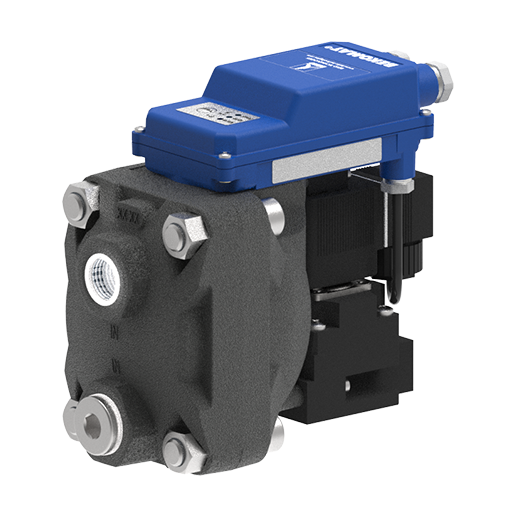

BEKO Condensate drain BEKOMAT 13 CO PN40, 230Vac
BEKO Technologies
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES.
BEKO BEKOMAT 13 CO PN40 condensate drain 2001287
The BEKOMAT® condensate drains work with a capacitive sensor. The electronic level control of the BEKOMAT® guarantees that the condensate is drained without any loss of compressed air and minimizes energy consumption. For this reason, the BEKOMAT® often pays for itself within six months compared to devices with time-controlled drain valves. This not only saves energy and therefore costs, but also CO2 emissions.
Die BEKOMAT-Vorteile im Überblick
- Keine unnötigen Druckluftverluste
- Ableitung nach Anfallmenge
- Sensor erfasst jeden Kondesatart
- Schmutzunempfindlichkeit
- Wartungsarm
- Vollautomatische Überwachung
Zusatzinformation:
- Art.-Nr.: KA13N10AP wurde ersetzt durch Art.-Nr.: 2001287
- Baugleich mit Elmag, Aircraft, Schneider Airsystems
| Max. Compressor capacity (m³/min) | 30 |
| Max. Refrigeration dryer capacity (m³/min) | 60 |
| Max. Filter capacity (m³/min) | 300 |
| Min. / max. operating pressure (bar) | 1,2 ... 25 bzw. 40 bzw. 50 |
| Housing (material) | Aluminium, hartcoatiert |
| Ambient temperature (°C) | +1 … +60 |
| Weight (kg) | 2,2 |
| Condensate feed | 2 x G½ (innen) [optional: NPT-Gewinde] |
| Condensate drain | 1 x G⅜ (innen); ohne Tülle, Schlauch Ø = 13 mm (innen) |
| Operating voltage | 230 / 200 / 115 / 100 / 24 VAC ± 10%, 50 ... 60 Hz / 24 VDC ± 10% |
| Power consumption (VA (W)) | < 8,0 |
| Protection class (IP) | 65 |
| Condensate | ölhaltiges Kondensat; ölfreies Kondensat |
| Wire cross-section (mains connection) (mm) | empfohlen 3 x 0,75 … 1,5 (AWG 16 ... 18) |
| Wire cross-section (mains connection) (mm) | empfohlen 3 x 0,75 … 1,5 (AWG 16 ... 18) |
| Protection | empfohlen AC: 1 A träge / vorgeschrieben DC: 1 A träge |
| Contact load | max. AC 250 V, DC 30 V / 1A; min. DC 5V / 10 mA |
