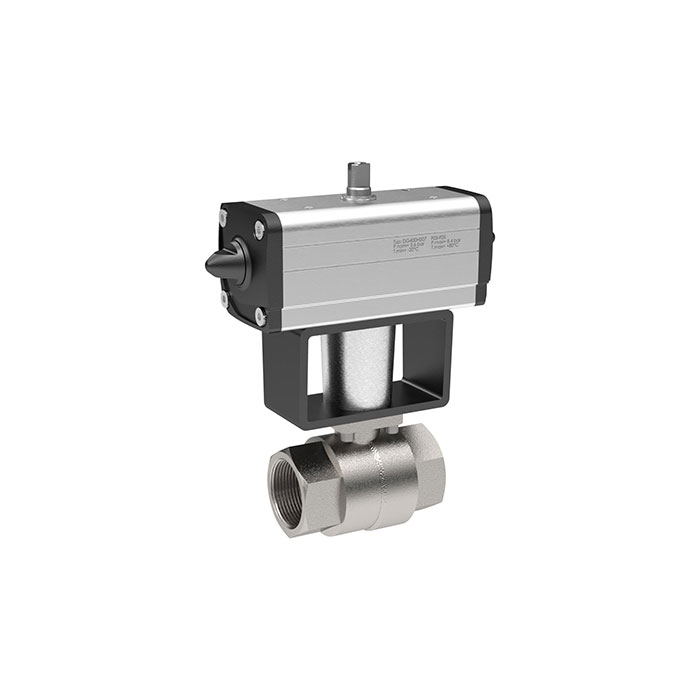

RIEGLER Stainless steel ball valve, Pneumatic actuation drive, Rp 1 1/4
Type number: 351.513-1
EAN: 4047322635189
Edelstahl-KH, pneum. Stellantrieb nach NAMUR, doppeltw., Betriebstemp. KH -20 °C bis +150 °C, Rp 1 1/4, DN 32, PN max. 64 bar
| Operating temperature actuator min. | -20 °C |
| Operating temperature actuator max. | 80 °C |
| Actuator control pressure max. | 8.4 bar |
| Control pressure recommended | 5.6 bar |
| Operating temperature ball valve min. | -20 °C |
| Operating temperature ball valve max. | 150 °C |
| Rotation angle | 90 ° |
| Valve adapter | nach Namur integriert |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401/1.4301/1.4310/1.4408, flange plate ISO 5211 |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 1/4 |
| DN | 32 |
| PN | 64 bar |
| A | 188.5 mm |
| B | 188.5 mm |
| L | 95 mm |
| Execution | double-acting |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
| REACH SVHC2 Substance Name | Octamethylcyclotetrasiloxane (D4) |
| REACH SVHC3 Substance Name | Decamethylcyclopentasiloxane (D5) |
| REACH SVHC4 Substance Name | Dodecamethylcyclohexasiloxane (D6) |
