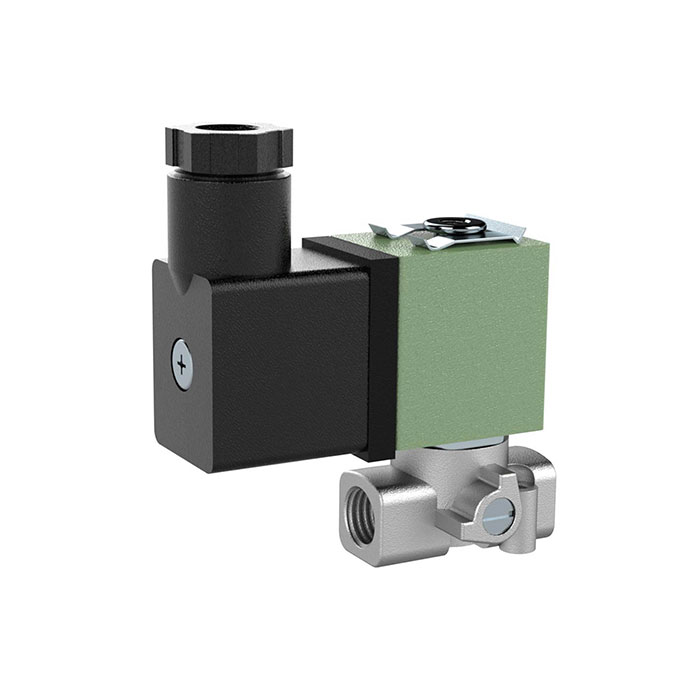

RIEGLER 3/2-way solenoid valve stainless steel, NC, 230VAC,50-60Hz, G 1/8
Type number: MV18ES230
EAN: 4047322631815
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way solenoid valve, stainless steel, NC, direct operated, 230 V AC, 50 - 60 Hz, medium temp. -10°C to 100°C, FPM, G 1/8, PN 0-15 bar
| Housing | Stainless steel 1.4401 |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Edelstahl 1.4401 |
| Thread | G 1/8 |
| DN | 45323 |
| Function | stromlos geschlossen (NC) |
| Tension | 230 V AC, 50 - 60 Hz |
| A | 60.5 mm |
| B | 33 mm |
| Class name | STAINLESS STEEL |
