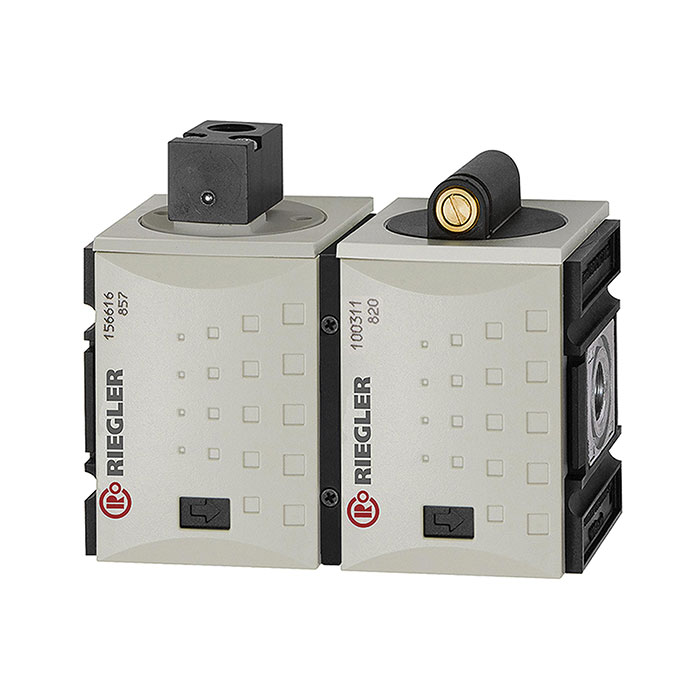

RIEGLER Filling unit »FUTURA«, pneumatically actuated, Size 2, G 1/2
Type number: FU 958-137
EAN: 4047322628266
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Befülleinheit »FUTURA« pneumatisch betätigt, BG 2, G 1/2, Abluft G 1/2, Eingangsdruck 2,5 - 16 bar, Temp. -10 °C bis 50 °C
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/2 |
| Flow rate | 3400 l/min |
| BG | 2 |
| A | 126 mm |
| B | 117.6 mm |
| C | 61.1 mm |
| D | 56.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exhaust air | G 1/2 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
