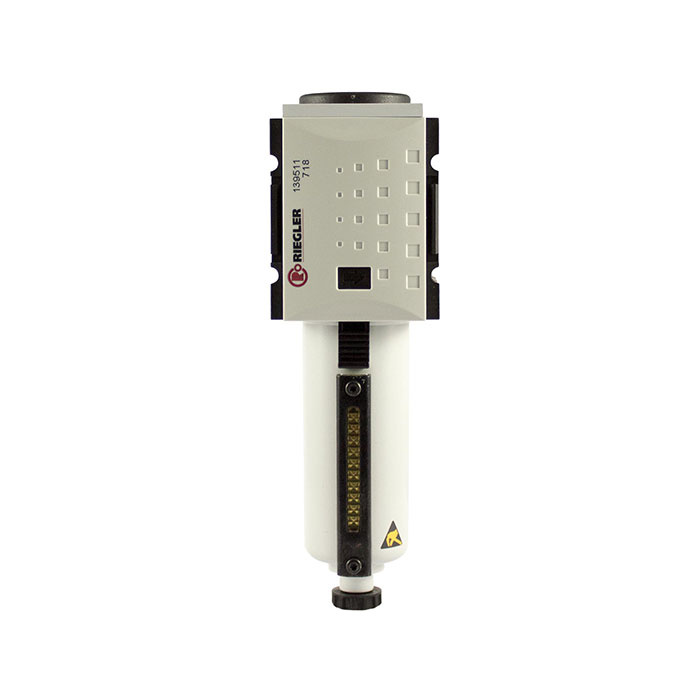

RIEGLER Microfilter »FUTURA«, Metal container, 0.01 µm, Size 1, G 3/8, FA
Type number: FU 882-M
EAN: 4047322627696
Mikrofilter »FUTURA«, Metallbehälter u. Sichtrohr, 0,01 µm, BG 1, G 3/8, PE 1,5 - 16 bar, Temp. -10°C bis 50°C, Kondensatablass VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Borosilicate glass fiber |
| Filter fineness | 0.01 µm |
| Dust separation | > 0,01 µm 99,999 % |
| Residual oil content | < 0.01 mg/m³ |
| Thread | G 3/8 |
| Flow rate | 350 l/min |
| Condensate drain | fully automatic |
| BG | 1 |
| A | 52 mm |
| B | 186.5 mm |
| C | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
