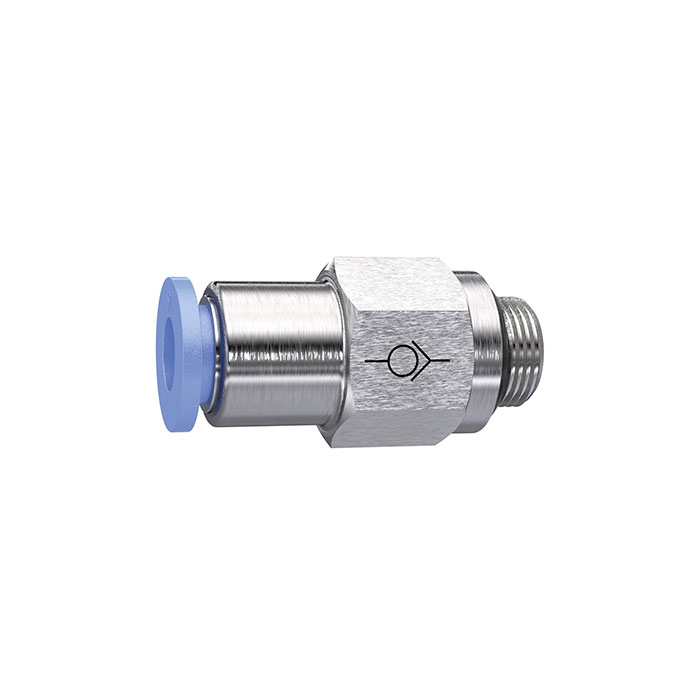

RIEGLER Straight Check valve »Blue Series«, Thread to hose, M5 o.
Type number: 200.54-2
EAN: 4047322593465
Ger. Rückschlagventil »Blaue Serie«, Gew. zu Schl., M5 a., für Schl.-Außen-Ø 4 mm, pmax. 10 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Thread to the hose |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 10 mm |
| Thread standard | DIN 13-1 |
| for hose outer Ø | 4 mm |
| Execution | With O-ring (NBR) |
| L1 | 33 mm |
| Class name | EASY |
