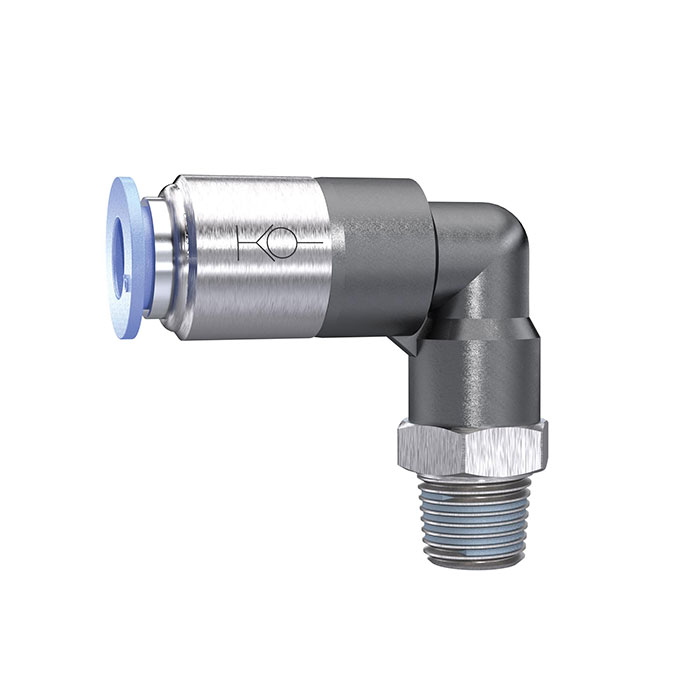

RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/8 o.
Type number: 198.186-2
EAN: 4047322593311
L-Steckverschraubung »Blaue Serie«, selbstabsper., R 1/8 a., f. Schlauch-Außen-Ø 6 mm, pmax. 10 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 12 mm |
| Thread standard | ISO 7-1 |
| Function | Selbstabsperrend |
| for hose outer Ø | 6 mm |
| Execution | With thread coating |
| L1 | 32.5 mm |
| L2 | 22 mm |
| Class name | EASY |
| Construction method | rotatable |
