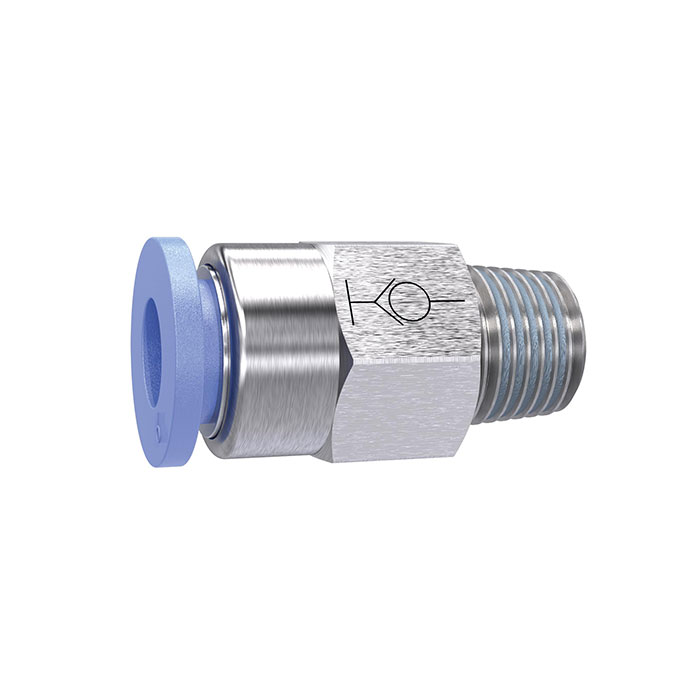

RIEGLER Straight Push-in fitting »Blue Series«, Self-locking, R 3/8 o.
Type number: 196.3810-2
EAN: 4047322593137
Ger. Steckverschraubung »Blaue Serie« selbstabsper., R 3/8 a., f. Schl.-Außen-Ø 10 mm, pmax. 10 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 3/8 |
| SW | 17 mm |
| Thread standard | ISO 7-1 |
| Function | Selbstabsperrend |
| for hose outer Ø | 10 mm |
| Execution | With thread coating |
| L1 | 35 mm |
| Class name | EASY |
