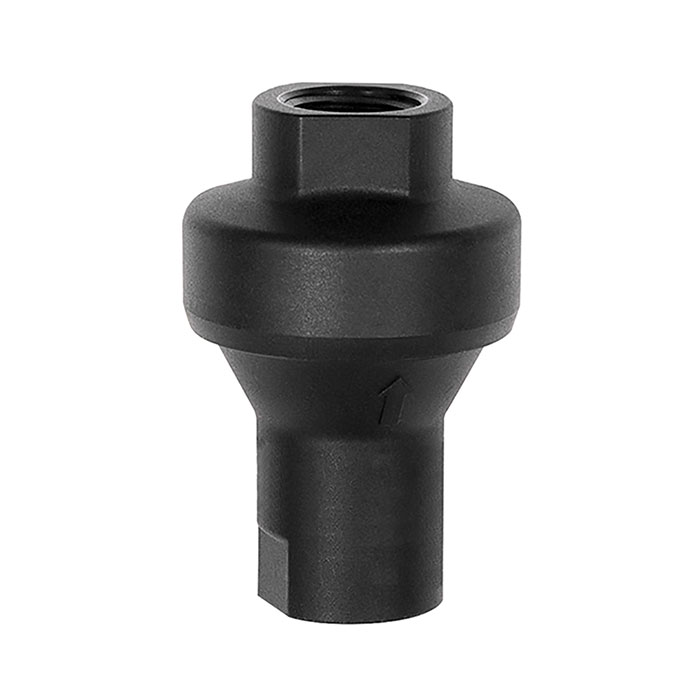

RIEGLER Inline pressure regulator for drinking water G 1/4, pre-set 8 bar
Type number: 639.08-T
EAN: 4047322588539
Inline-Druckregler für Trinkwasser, ohne Entlüftung, G 1/4, SW 17, Arbeitsdruck (voreingestellt) 8 bar, PN max. 10 bar
| Temperature range min. | 4 °C |
| Temperature range max. | 60 °C |
| Housing | GV-5 FWA |
| Sealing material | FPM |
| Flow rate measurement | at P<sub>1</sub> = 10 bar and pressure drop ˆ†<sub>p</sub>= 0.8 bar |
| Series | inline |
| Max. operating pressure | 10 bar |
| Interior parts | Stainless steel DIN 1.4404 / AISI 316L |
| Thread | G 1/4 |
| Flow rate | 4 l/min |
| Working pressure (preset) | 8 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 52 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
