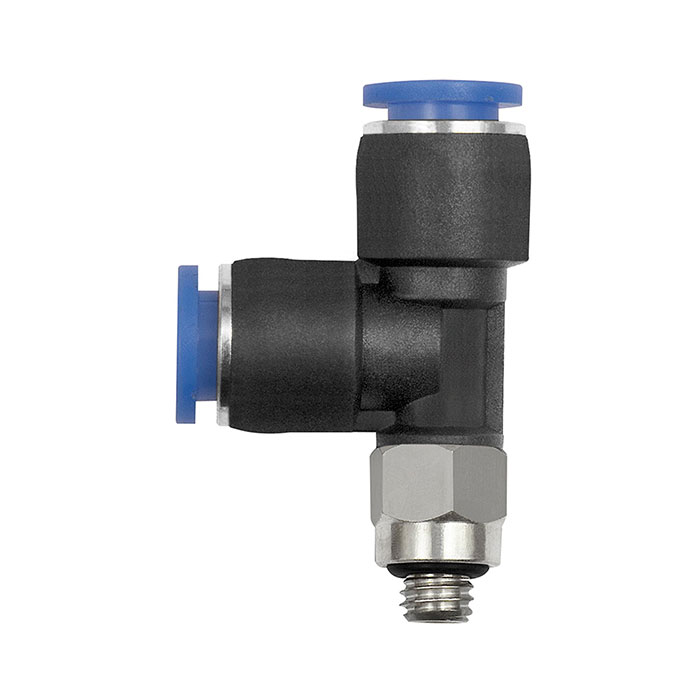

RIEGLER Push-in T-fitting »Blue Series« mini, L-shape, rotating, M3
Type number: 129.003-3M
EAN: 4047322582889
T-Steckverschr. »Blaue Serie« mini, L-Form, drehbar, M3, für Schlauch-Außen-Ø 3 mm, pmax 10 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M3 |
| SW | 5,5 mm |
| Thread standard | DIN 13-1, NBR O-Ring |
| for hose outer Ø | 3 mm |
| L1 | 11.4 mm |
| L2 | 24.5 mm |
| Class name | EASY |
