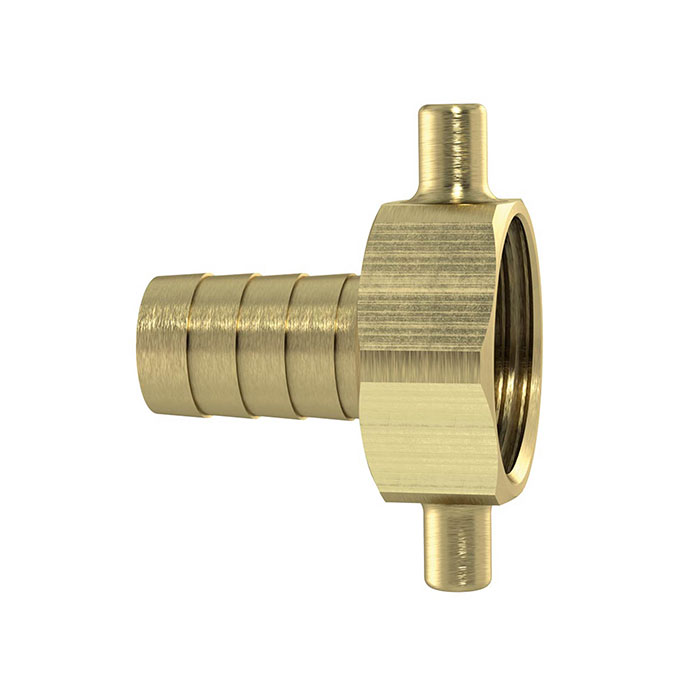

2/3 Tube fitting G3/4x19, swivel nut, lightweight CH type, Brass

https://www.filcom-technik.de/web/image/product.template/210469/image_1920?unique=67949e4

Typennummer: SV3419MS23CH

EAN: 4047322580908

3.74 € 3.74 EUR 3.74 € VAT Included

4.19 € VAT Included

Not Available For Sale

10% Black Week Sale - Sparcode: F24Q4BW
End of promotion: 10% Black Week Sale

    This combination does not exist.

    Contact Us
    Product no. :
    146196
    Category :
    Unions
    Weight :
    0.06 kg

    2/3 Schlauchverschraubung, G 3/4 x 19 mm, Überwurfmutter, leichte CH Ausführung, Messing blank

    Operating pressure min. 0 bar
    Max. operating pressure 16 bar
    Material Messing CW614N
    Operating temperature min. -10 °C
    Operating temperature max. 100 °C
    Thread G 3/4
    SW 29 mm
    for hose 19 mm
    D 48 mm
    L1 41 mm
    L2 28 mm
    REACH SVHC1 Substance Name Blei
    CAS No. SVHC 1 7439-92-1
    RoHS material information RoHS konform
    RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
    RoHS Article of the Directive Artikel 4, Absatz 1, Anhang 3
    Share of SVHC substance in % for RoHS 0.04
    Exception 6c
    REACH Info enthält SVHC Stoff
    Share of SVHC SCIP >= 1,0% w/w und < 10,0% w/w
    Proportion of SVHC substance in SCIP >= 0,1 % in w/w
    Material identification keine
    Class name FLEX
