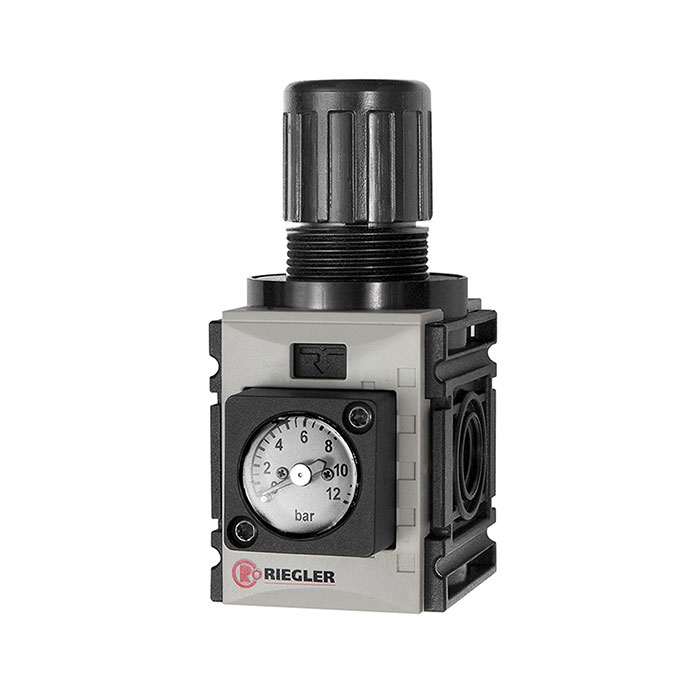

RIEGLER Pressure regulator »FUTURA-mini«, compact pressure gauge, G 1/4
Type number: FUM 7210-KM
EAN: 4047322556323
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Druckregler, durchg. Druckversorgung »FUTURA-mini«, Kompaktmano., BG 0, G 1/4, PE max. 12 bar, Regelbereich 0,5 - 10 bar
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 12 bar |
| BG | 0 |
| A | 43 mm |
| B | 93 mm |
| C | 68 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
