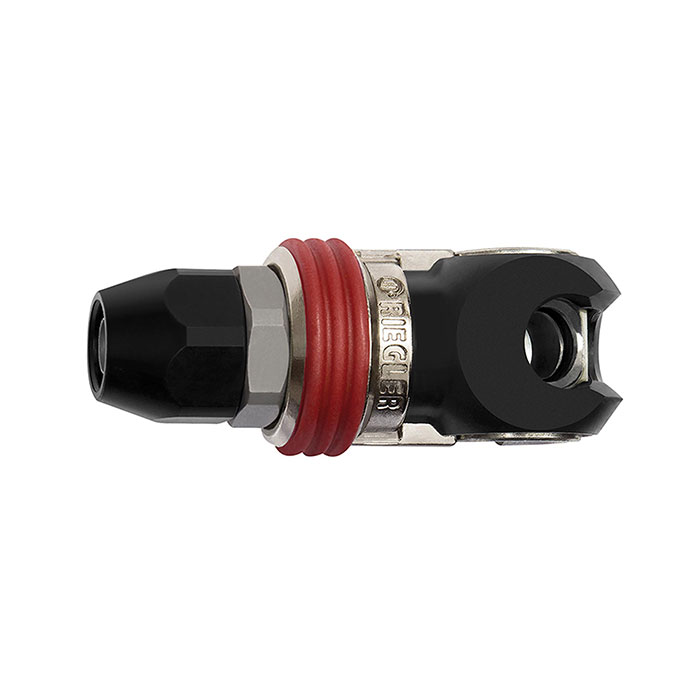

RIEGLER Swing safety coupling I.D. 8, ISO 6150 C, Steel, Hose 11x16
Type number: 425.37-SCH
EAN: 4047322567794
Schwenk-Sicherheitskupplung NW 8, ISO 6150 C, Stahl, Schlauchanschluss 11x16, Betriebsdruck max. 25 bar, Temp. -20 °C bis 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 2300 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 24 mm |
| NW | 8 |
| Length | 82 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Hose connection 11x16 |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | gemäß ISO 6150 C |
| Class name | MAX |
