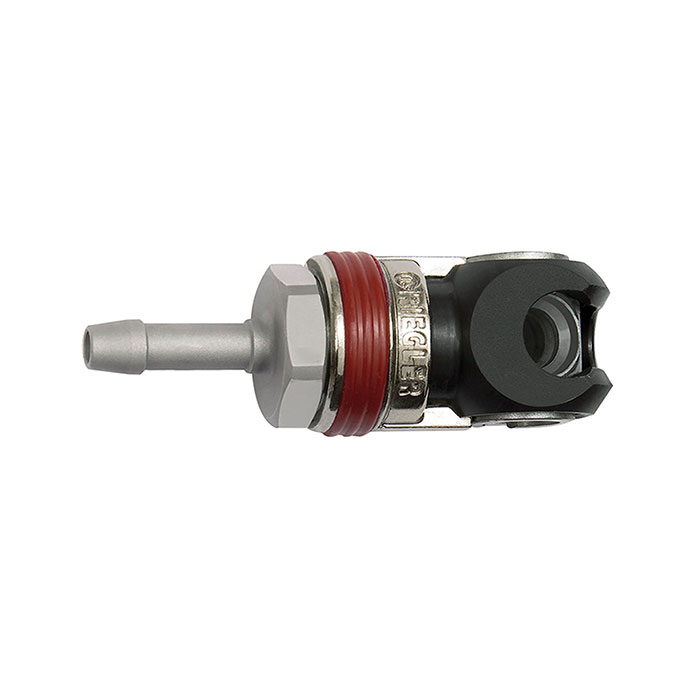

RIEGLER Swing safety coupling I.D. 5.5, ARO 210, Steel, Sleeve I.D. 8
Type number: 420.22-SCH
EAN: 4047322567343
Schwenk-Sicherheitskupplung NW 5,5, ARO 210, Stahl, Tülle LW 8, Betriebsdruck max. 25 bar, Temp. -20 °C bis 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 820 l/min (air) |
| Sleeve | Zinc die-cast, nickel-plated, red rubber-coated |
| Threaded piece | Galvanized steel |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 19 mm |
| NW | 5.5 |
| Length | 68 mm |
| Connection | LW 8 |
| Connector profile | gemäß ARO 210 |
| Class name | MAX |
