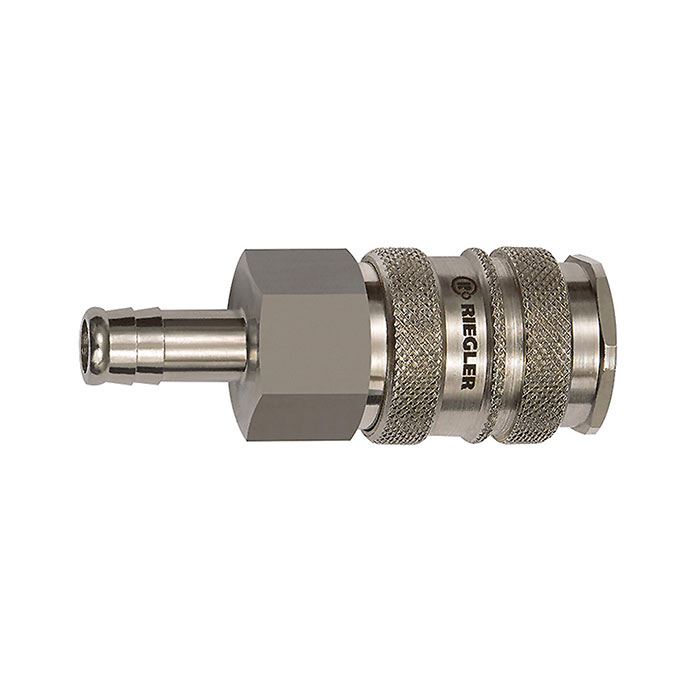

RIEGLER Quick-connect coupling I.D. 10, Steel/nickel-plated brass, I.D.13
Type number: 241.65-E
EAN: 4047322568319
Schnellverschlusskupplung NW 10, Stahl/Messing vern., Tülle LW 13, Betriebsdruck 0-35 bar, Mediums-/Umgeb.temp. -20 °C bis 100 °C
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 3500 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Nickel-plated brass |
| Valve | Messing vernickelt |
| Operating pressure | 0 - 35 bar |
| SW | 24 mm |
| NW | 10 |
| Length | 75 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| Exception | 6a, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Class name | PLUS |
