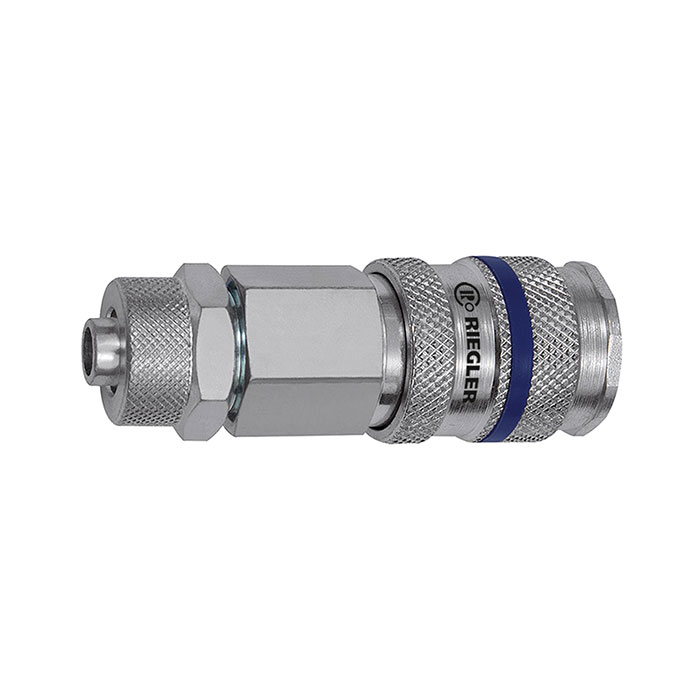

RIEGLER Quick-connect coupling I.D. 7.8, Steel, Hose connection 12x9
Type number: 244.92-1-E
EAN: 4047322568173
Schnellverschlusskupplung NW 7,8, Stahl, Schlauchanschluss 12x9, Betriebsdruck 0 - 35 bar, Mediums-/Umgebungstemp. -20°C bis 100°C
| Housing | Galvanized steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2000 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Sleeve | Galvanized steel |
| Threaded piece | Galvanized steel |
| Valve | Zink-Druckguss (Zamak) |
| Operating pressure | 0 - 35 bar |
| SW | 19 mm |
| NW | 7.8 |
| Length | 64 mm |
| Connection | Hose connection 12x9 |
| Class name | PLUS |
