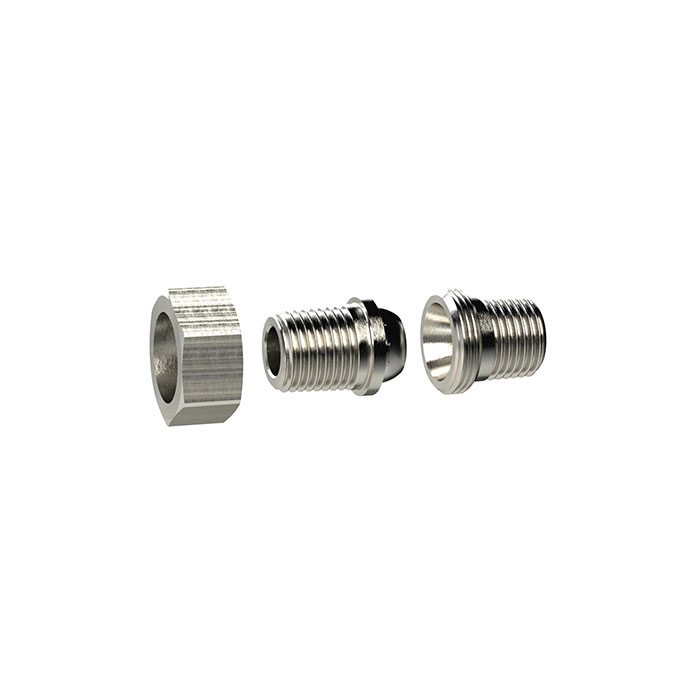

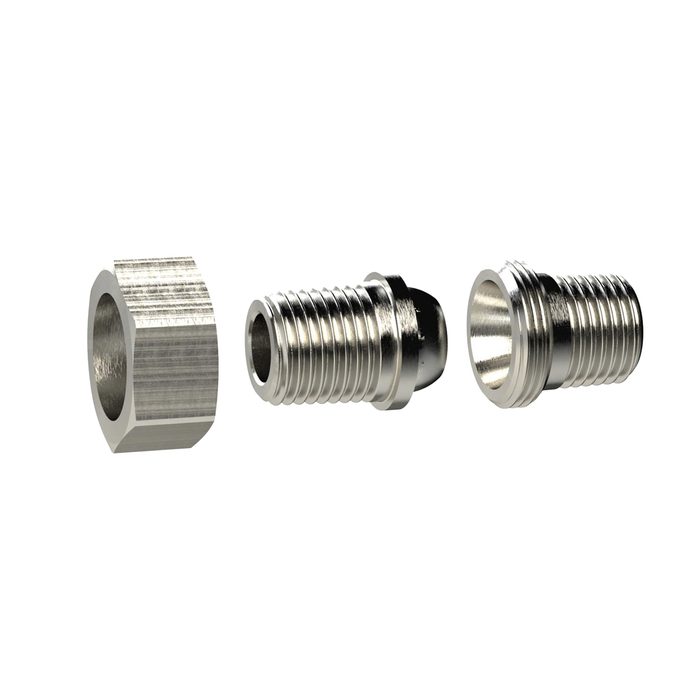

RIEGLER Removable Double threaded nipple, conical sealing, R 2 o., R 2 o.
Type number: MSN252L22
EAN: 4047322506618
Lösbarer Doppelgew.nippel kon. dichtend R 2 a., R 2 a., SW 80, SW1: 32, MS vern. Arbeitsdruck max. 25 bar Betriebstemp. max. 150°C
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW 1 | 32 mm |
| SW | 80 mm |
| L1 | 85 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | R 2 |
| Thread 2 | R 2 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
