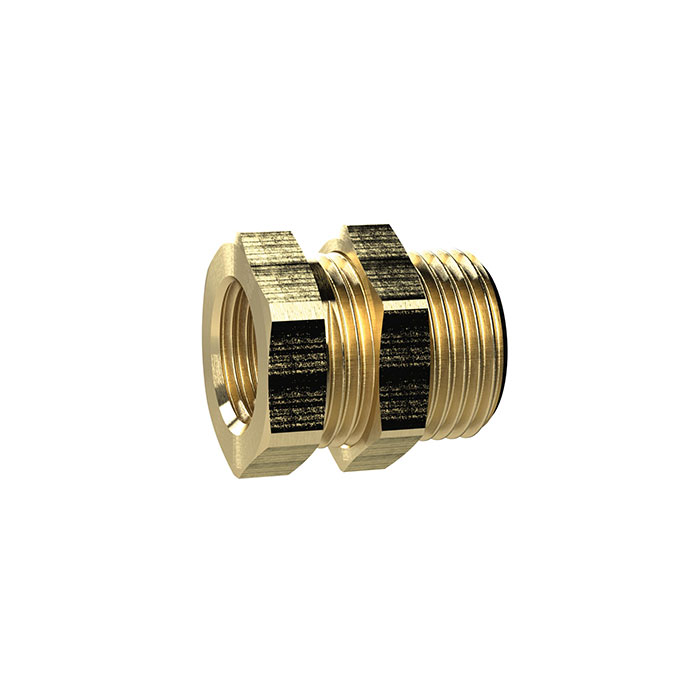

RIEGLER Bulkhead fitting, M28x1.5 o., G 1/2 i., AF1 30, AF2 36, Brass
Type number: MS232M2812
EAN: 4047322524902
Schottverschraubung, AG, M28x1,5, IG G 1/2, SW1 30, SW2 36, Messing, Arbeitsdruck max. 25 bar, Betriebstemp. max. 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW 1 | 30 mm |
| SW 2 | 36 mm |

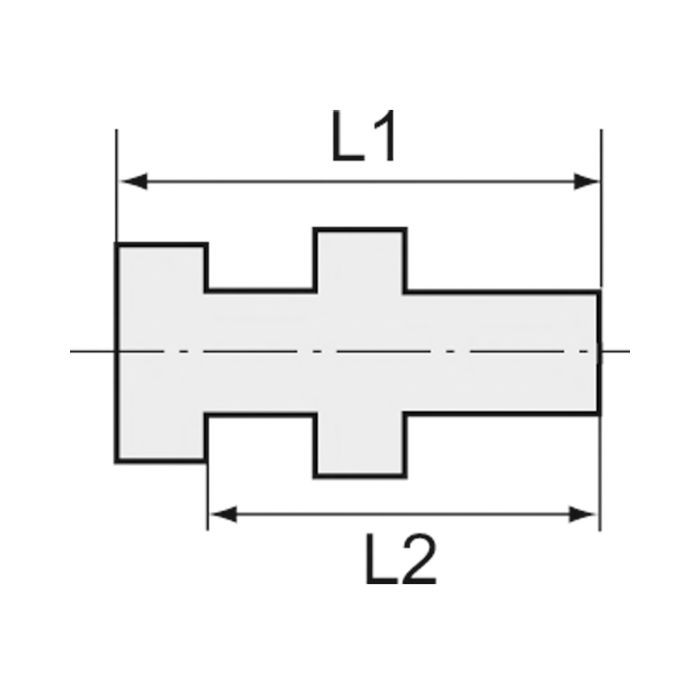

| L1 | 30 mm |
| L2 | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/2 |
| External thread | M28x1.5 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
