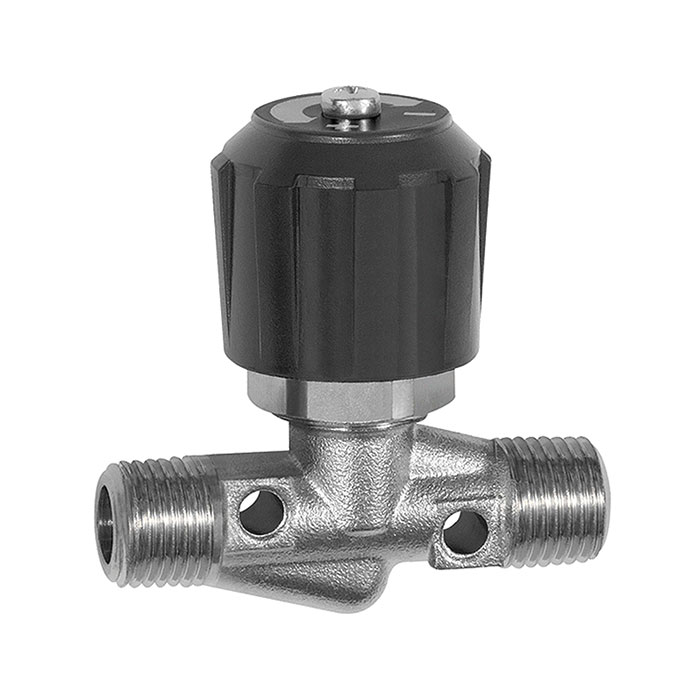

RIEGLER Needle valve, Nickel-plated brass, ET/ET, R 1/2, DN 8
Type number: 213.42-N
EAN: 4047322503006
Nadelventil, Messing vernickelt, AG/AG, R 1/2, DN 8, SW1 21, Betriebstemperatur -10 °C bis 80 °C, PN max. 18 bar
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Max. operating pressure | 18 bar |
| Handwheel | Plastic |
| Spindle | Messing blank |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | R 1/2 |
| DN | 8 |
| SW 1 | 21 mm |
| Thread standard | Rp-Gewinde und R-Gwinde nach ISO 7/1 |

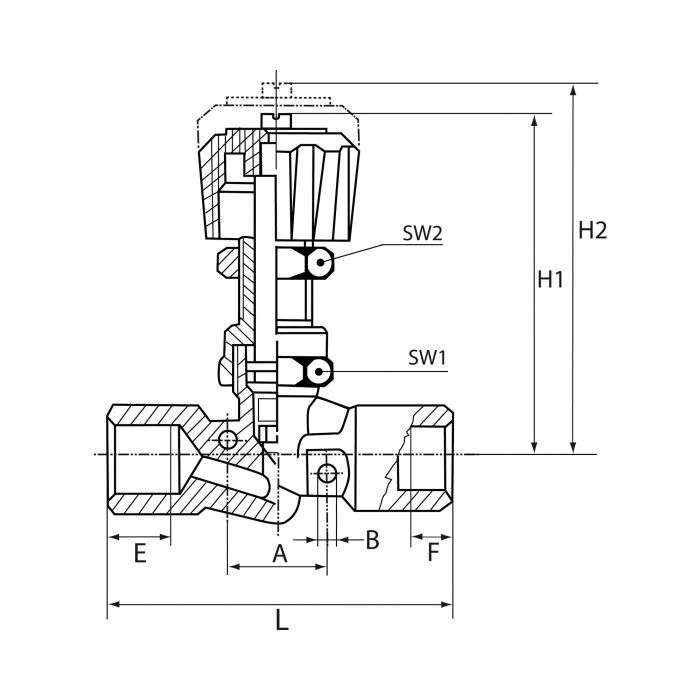

| A | 21 mm |
| B | 4.5 mm |
| L | 58 mm |
| E | 11 mm |
| F | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| H1 | 52.7 mm |
| H2 | 59.9 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
