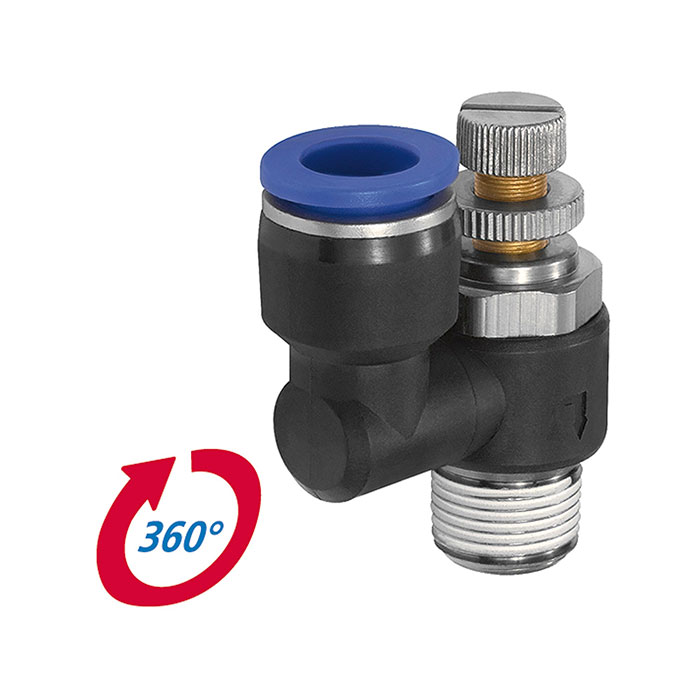

RIEGLER Throttle check valve »Blue Series«, Supply air throttle, R 1/8 o.
Type number: 298.018-8
EAN: 4047322500197
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Drosselrückschlagventil »Blaue Serie«, Zuluftdros., R 1/8 a., f. Schl.-Außen-Ø 8 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 12 mm |
| for hose outer Ø | 8 mm |

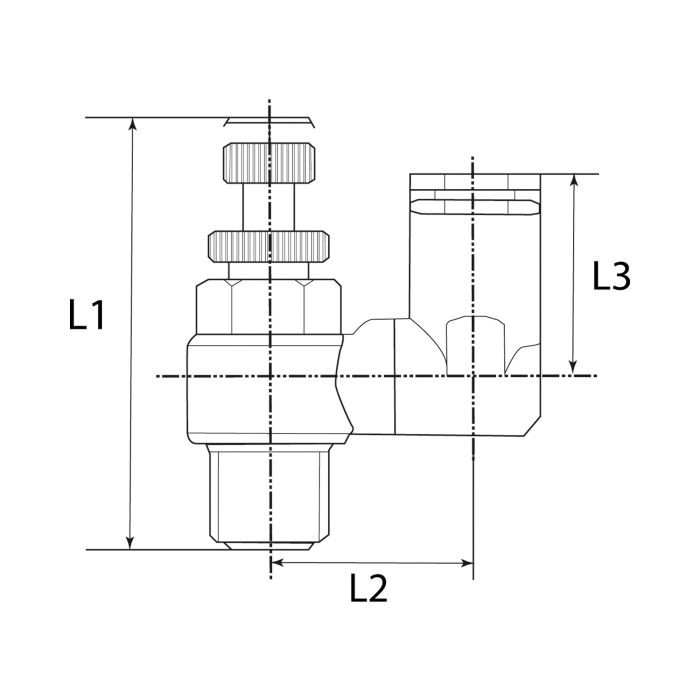

| L1 | 42 mm |
| L2 | 18 mm |
| L3 | 26.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
