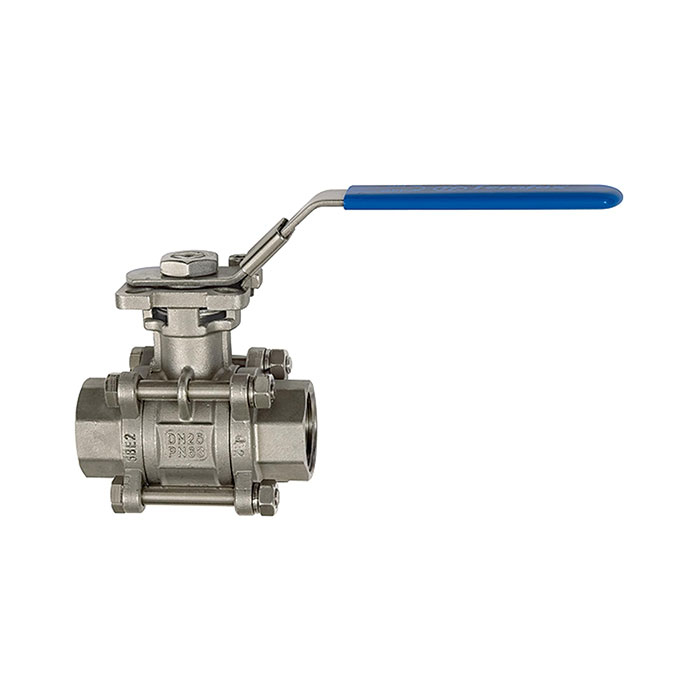

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/4

Price:

104.49 €
    ​
English (US)
  2. Shop
  3. Industrial Valves and Media Valves
  4. RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/4
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/2
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/2
136.40 €
136.40 €
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2
47.20 €
47.20 €

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/4

https://www.filcom-technik.de/web/image/product.template/206268/image_1920?unique=e3e6fae

Type number: 3390.06

EAN: 4047322501576

104.49 € 104.49000000000001 EUR 104.49 € VAT Included

135.09 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    135915
    Category :
    2-Way Ball Valves
    Weight :
    0.11 kg

    Edelstahlkugelhahn, 3-teilig, Baulänge nach DIN 3202-M3, G 1 1/4, DN 32, Betriebstemp. -20 °C bis 180 °C, PN max. 63 bar

    Housing Stainless steel 1.4408
    Ball Stainless steel 1.4401
    Ball seal PTFE (15% glass fiber reinforced)
    Spindle seal PTFE
    Hand lever Stainless steel 1.4301, with plastic coating
    Operating temperature min. -20 °C
    Operating temperature max. 180 °C
    Thread G 1 1/4
    DN 32
    PN 63 bar
    Thread standard G-Gewinde nach DIN EN ISO 228-1, Anflanschplatte ISO 5211
    A 150 mm
    B 93.5 mm
    L 110 mm
    ISO 5211 F 04 / F 05
    Class name STAINLESS STEEL
    Bore diameter padlock approx. 7.7 mm
