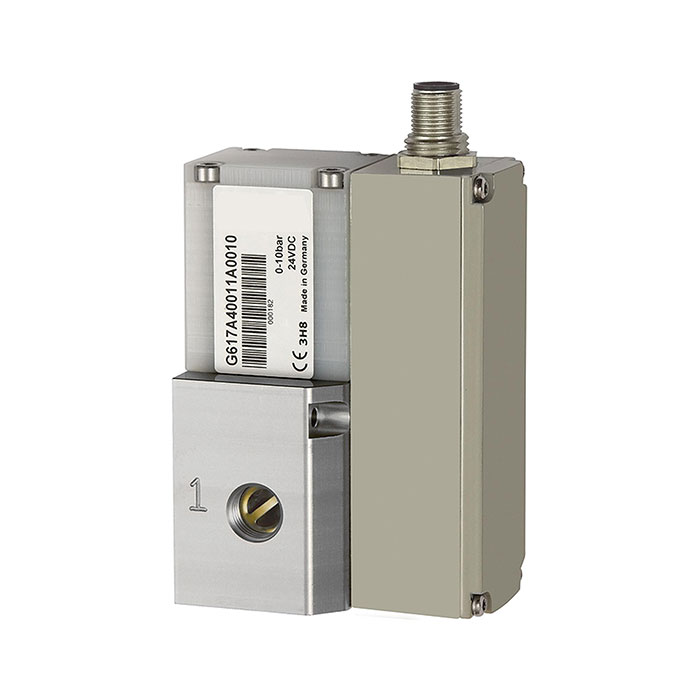

RIEGLER Proportional control valve »sentronic LP«, 24 V DC, G 1/4, DN 4
Type number: PV 2160-N
EAN: 4047322501262
Proportional-Regelventil »sentronic LP«, 3-Wege-Ausführung, mit Regelkreis, 24 V DC, G 1/4, DN 4, Druckbereich 0 - 10 bar
| Medium | Air or neutral gases, filtered 50 µm, lubricated or unlubricated |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Flow rate | 470 l/min |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Interior parts | POM |
| Control | 0 - 10 V |
| Electrical setpoint | 0 - 10 V |
| Failsafe behaviour | Pressure-maintaining with voltage drop, without regulation |
| Reproducibility | 1% of the final value |
| Hysteresis | 1% of the final value |
| Thread | G 1/4 |
| DN | 4 |
| Actuation | 3-Wege-Ventile |
| B | 52 mm |
| H | 115 mm |
| Class name | FLEX |
