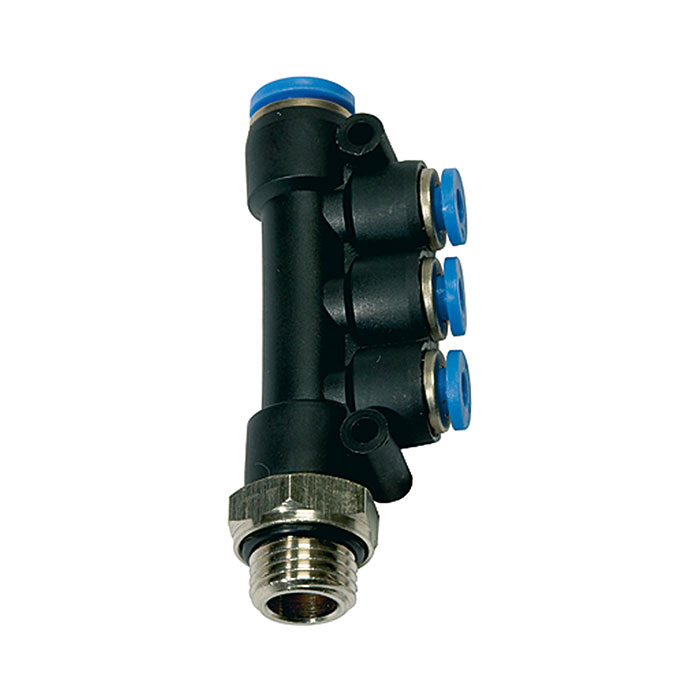

RIEGLER T-multi-distributor »Blue Series«, rotating, G 1/8 o.
Type number: 146.0186
EAN: 4047322498562
T-Mehrfachverteiler »Blaue Serie«, drehbar, G 1/8 a., für Schlauch-Außen-Ø 4x6 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/8 |
| SW | 14 mm |
| for hose outer Ø | 4x6 mm |
| L1 | 68.1 mm |
| L2 | 18.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
