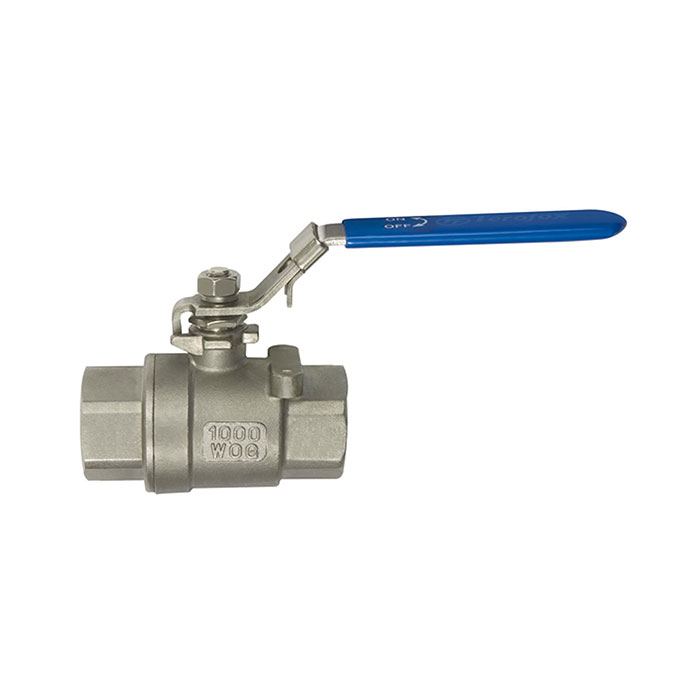

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/2

https://www.filcom-technik.de/web/image/product.template/205996/image_1920?unique=56e0adb

Typennummer: 397.07

EAN: 4047322496230

121.32 € 121.32000000000001 EUR 121.32 € VAT Included

156.84 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    135357
    Category :
    2-Way Ball Valves
    Weight :
    0.11 kg

    Edelstahlkugelhahn, 2-teilig, Baulänge nach DIN 3202-M3, G 1 1/2, DN 40, Betriebstemperatur -20° bis 180 °C, PN max. 63 bar

    Housing Stainless steel 1.4408
    Ball Stainless steel 1.4401
    Ball seal PTFE (15% glass fiber reinforced)
    Spindle seal PTFE
    Hand lever Stainless steel 1.4301, with plastic coating
    Operating temperature min. -20 °C
    Operating temperature max. 180 °C
    Operating pressure max. 63 bar (depending on temperature)
    Thread G 1 1/2
    DN 40
    Thread standard G-Gewinde nach DIN EN ISO 228-1
    A 182 mm
    B 86 mm
    L 120 mm
    Class name STAINLESS STEEL
    Bore diameter padlock approx. 7.5 mm
