RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/4

Price:

23.99 €
    ​
English (US)
  2. Shop
  3. 2-Way Ball Valves
  4. RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/4
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2
29.11 €
29.11 €
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2
RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2
187.10 €
187.10 €

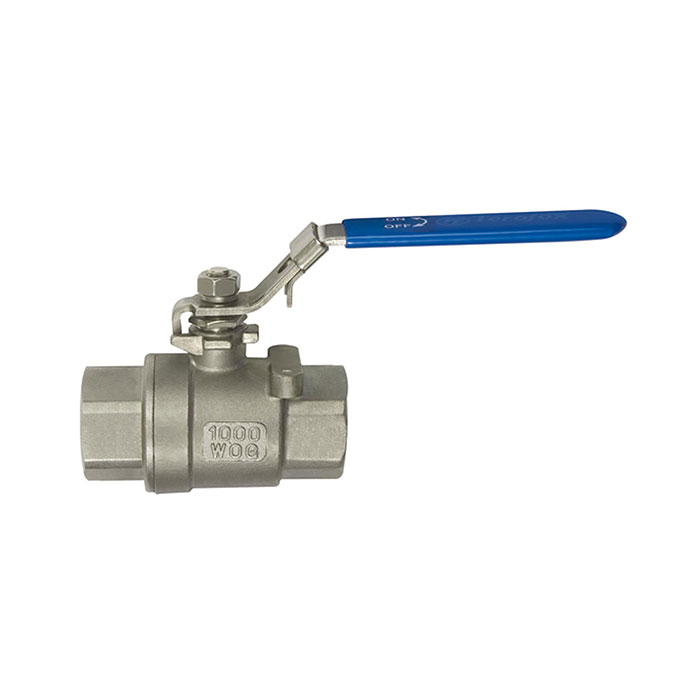

RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/4

https://www.filcom-technik.de/web/image/product.template/205990/image_1920?unique=56e0adb

Typennummer: 397.01

EAN: 4047322496179

23.99 € 23.990000000000002 EUR 23.99 € VAT Included

31.01 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    135351
    Category :
    2-Way Ball Valves
    Weight :
    0.11 kg

    Edelstahlkugelhahn, 2-teilig, Baulänge nach DIN 3202-M3, G 1/4, DN 8, Betriebstemperatur -20° bis 180 °C, PN max. 63 bar

    Housing Stainless steel 1.4408
    Ball Stainless steel 1.4401
    Ball seal PTFE (15% glass fiber reinforced)
    Spindle seal PTFE
    Hand lever Stainless steel 1.4301, with plastic coating
    Operating temperature min. -20 °C
    Operating temperature max. 180 °C
    Operating pressure max. 63 bar (depending on temperature)
    Thread G 1/4
    DN 8
    Thread standard G-Gewinde nach DIN EN ISO 228-1
    A 105 mm
    B 44 mm
    L 50 mm
    Class name STAINLESS STEEL
    Bore diameter padlock approx. 7.5 mm
