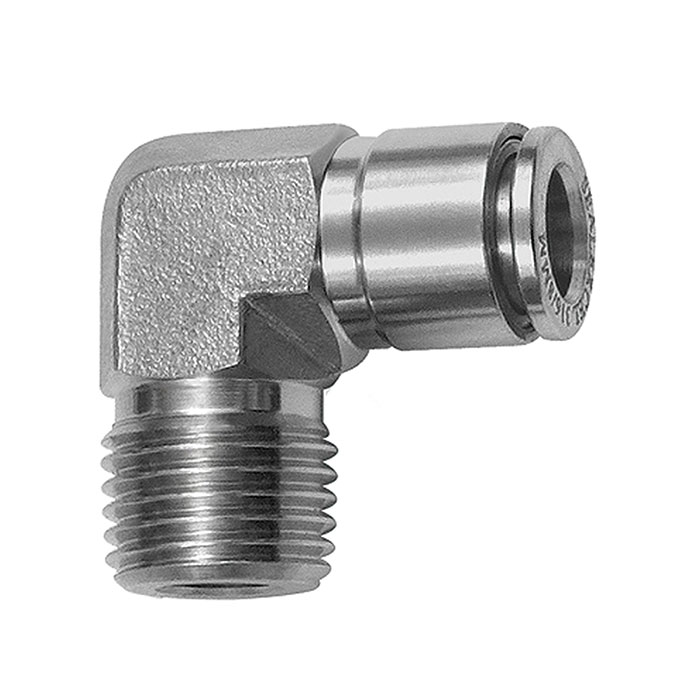

RIEGLER Push-in L-fitting R 1/2 o., for hose exterior Ø 16, ES 1.4404
Type number: 852.012-16 ES
EAN: 4047322493796
L-Steckverschraubung, R 1/2 a., für Schlauch-Außen-Ø 16 mm, Arbeitsdruck -0,98 - 20 bar, Edelstahl 1.4404
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Thread | R 1/2 |
| SW | 24 mm |
| Thread standard | ISO 7-1 |
| for hose outer Ø | 16 mm |
| L1 | 30.2 mm |
| L2 | 31.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
