RIEGLER Ball valve with integrated strainer, nickel-plated brass, G 1 1/2
Typennummer: 322.08
EAN: 4047322478878
Kugelhahn mit integr. Schmutzfänger, MS vern., Betriebstemp. -20°C bis 100°C, G 1 1/2, DN 36, PN max. 20 bar, Maschenweite 0,5 mm
| Housing | Nickel-plated brass (CW617N) |
| Ball | Chrome-plated brass (CW617N) |
| Ball seal | PTFE |
| Spindle seal | NBR / FKM |
| Hand lever | Galvanized steel, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |

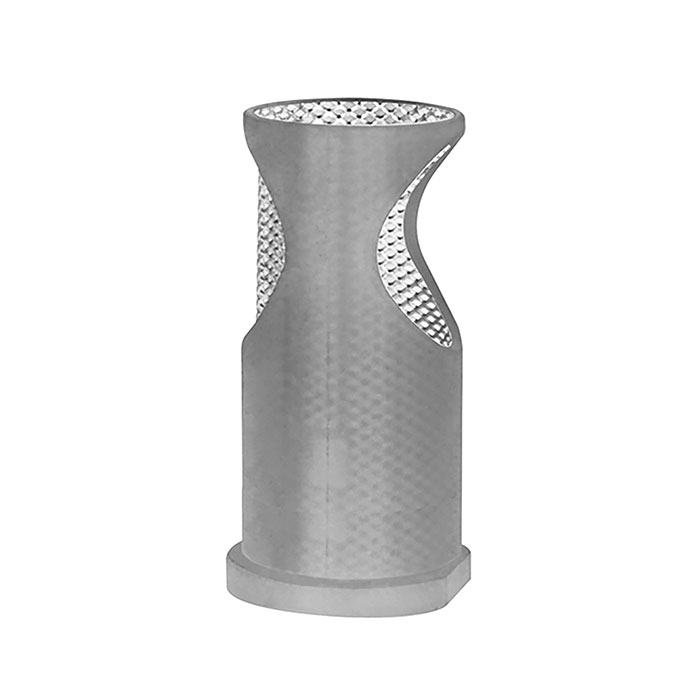

| Sieve insert | Edelstahl, Maschenweite 0,5 mm |
| Thread | G 1 1/2 |
| DN | 36 |
| SW 1 | 54 mm |
| SW 2 | 55 mm |
| PN | 20 bar |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| A | 158 mm |
| B | 80 mm |
| D | 57.5 mm |
| L | 97.5 mm |
| E | 17 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Nickel-plated brass (CW617N) |
| Class name | PLUS |
