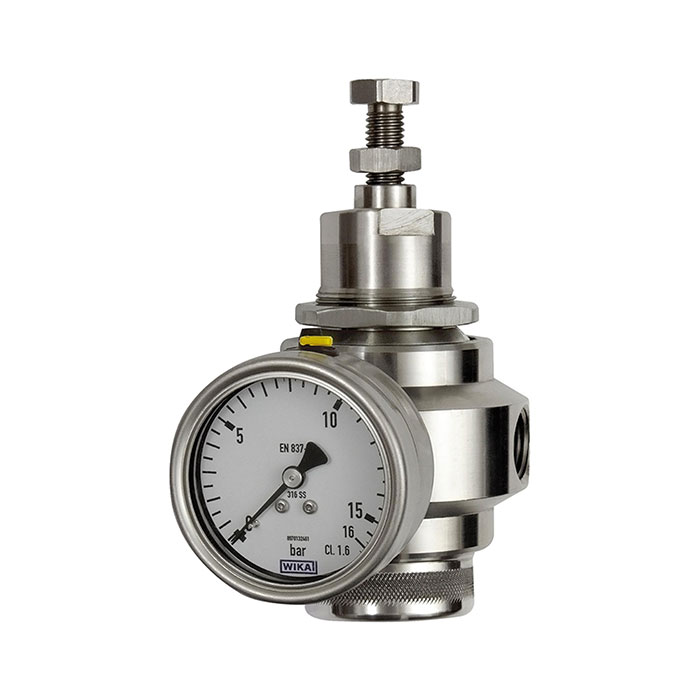

RIEGLER Stainless steel pressure regulator, 1.4401, G 1, 1.7 - 17.5 bar
Type number: 580RM4-1-17
EAN: 4047322479257
Edelstahl-Druckregler, 1.4401, mit Sekundärentlüftung (rücksteuerbar), inkl. Manometer, BG 4, G 1, Regelbereich 1,7 - 17,5 bar
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1 |
| Flow rate | 10195 l/min |
| Control range min. | 1.7 bar |
| Control range max. | 17.5 bar |
| BG | 4 |
| A | 120 mm |
| B | 236 mm |
| C | 100 mm |
| Class name | STAINLESS STEEL |
